Fujitsu ASU9RLS Service Manual

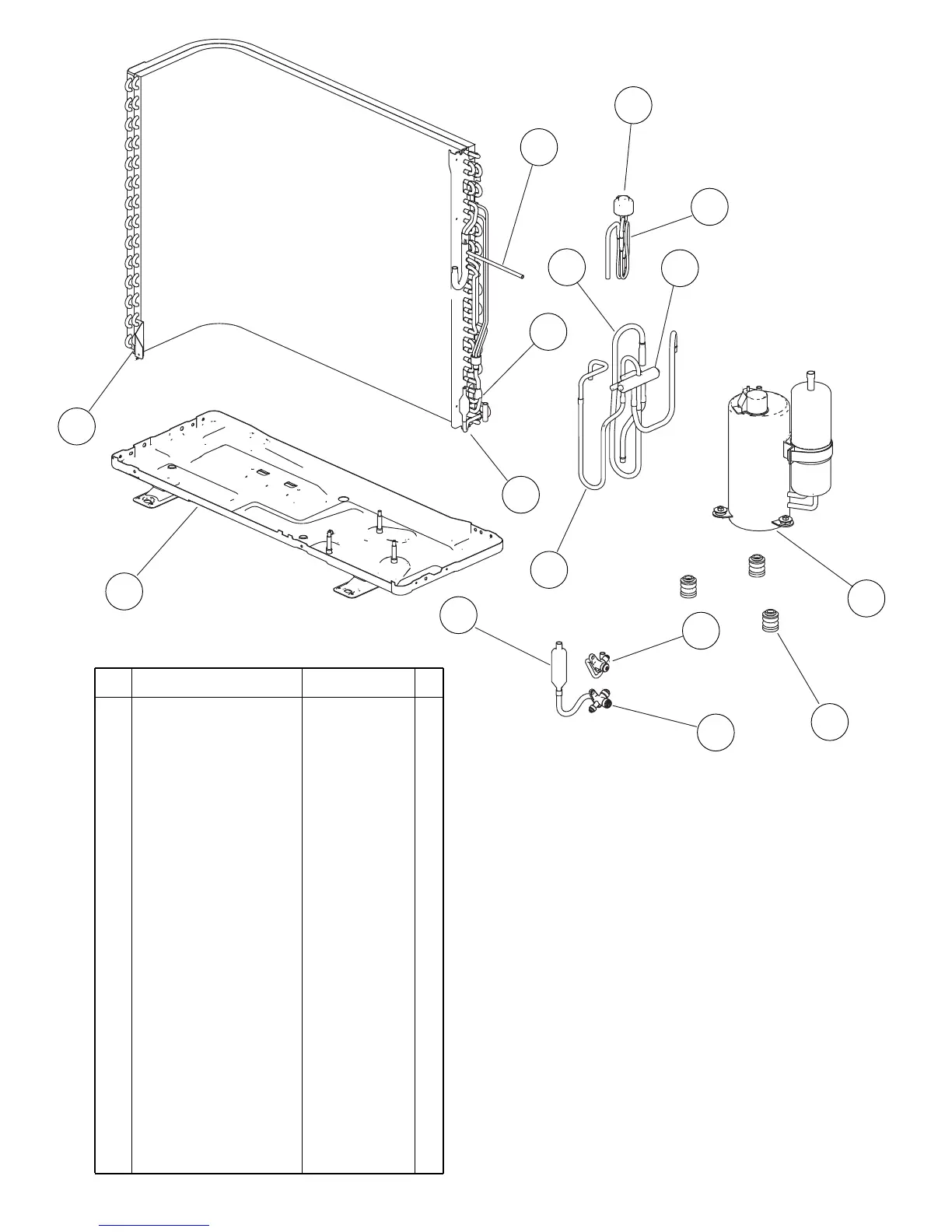

OUTDOOR UNIT
2009.02.20
16
27
23
21
24
26
22
25
28
34
30
29
35
32
31
33
24 Separate Pipe Assy 9317097000
25 Exit Pipe 9317105002
26 Compressor Assy 9317117005
29 3 way Valve Assy 9317174015
-- Insulator A 9317474009
-- Insurator F 9317947008
34 Pulse Motor Valve Assy 9314557019
-- 4 way Valve Assy 9317110013
-- Solenoid 9970055010
-- Condenser Total Assy 9317089005
35 Expansion Valve Coil 9900057039
32 Discharge Pipe Assy 9317111003
30 Muffler 9317394000
31 4 way Valve 9900162016
27 Cushion 9306410001
28 2 way Valve Assy 9315573018
33 Suction Pipe Assy 9317114004
-- Insurator H 9317401012
21 Base Assy 9316885004
22 Condenser Assy 9317090001
23 Entrance Pipe Assy 9317091008
Ref. Description Part number
