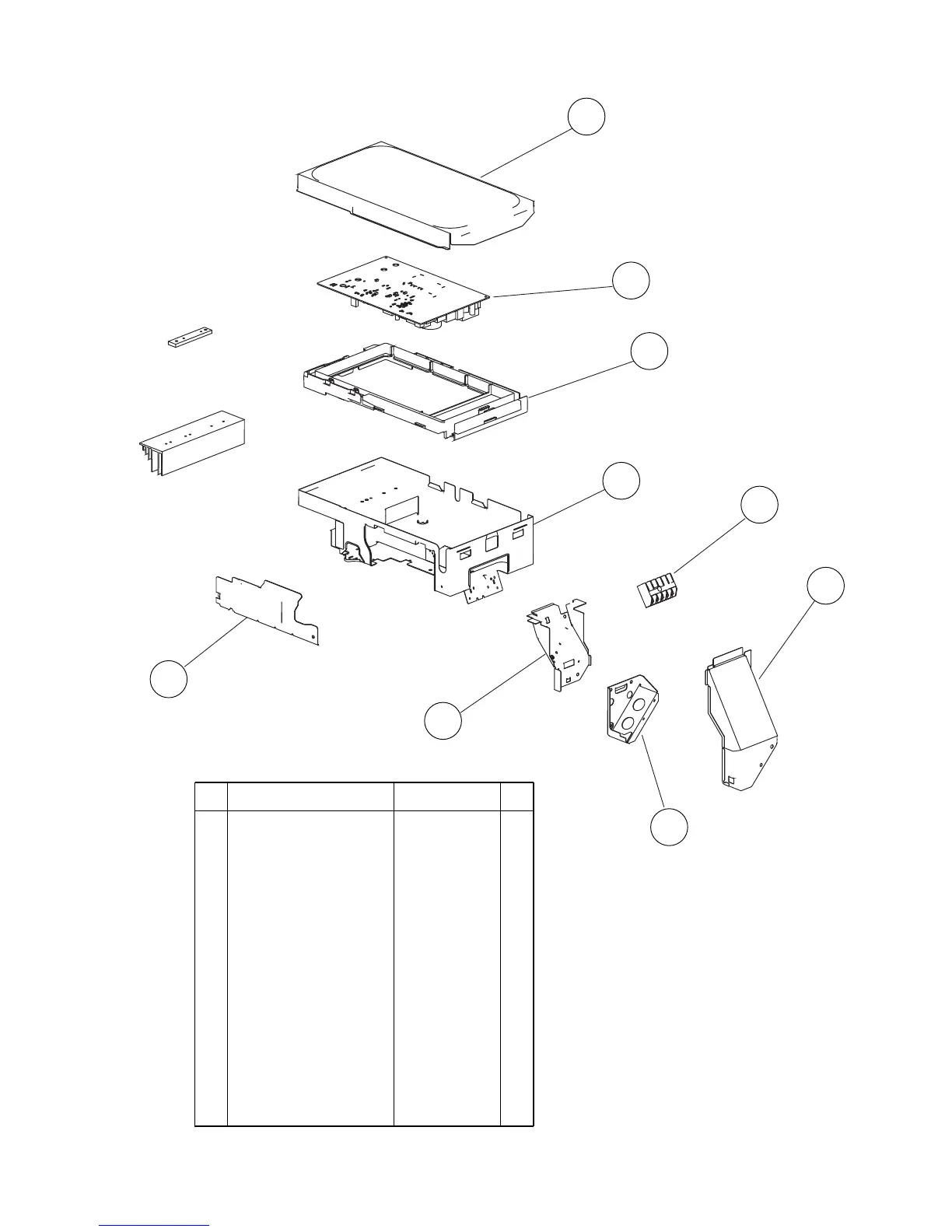

OUTDOOR UNIT
2009.02.20 17
-- Outdoor Thermistor 9900210038
48 Bracket Conduit 9313938017
46 Terminal Bracket 9317691017
47 Terminal 5P 9703874024
49
Inverter Case Cover 9314507014
Terminal Cover Assy 9317898003
44
Inverter PCB Assy (09)
9315690043
45
Inverter PCB Assy (12)
-- Thermistor Assy 9900148041
41 Sealed Panel 9309913011
42
Inverter Case Assy
9707427264
42 9707427271
43 PCB Holder 9313074029
Ref. Description Part number
