WALL MOUNTED TYPE ASU9-15RLS2 WALL MOUNTED TYPE ASU9-15RLS2
ERROR STATUS OUTPUT

An air conditioner error status signal can be output.

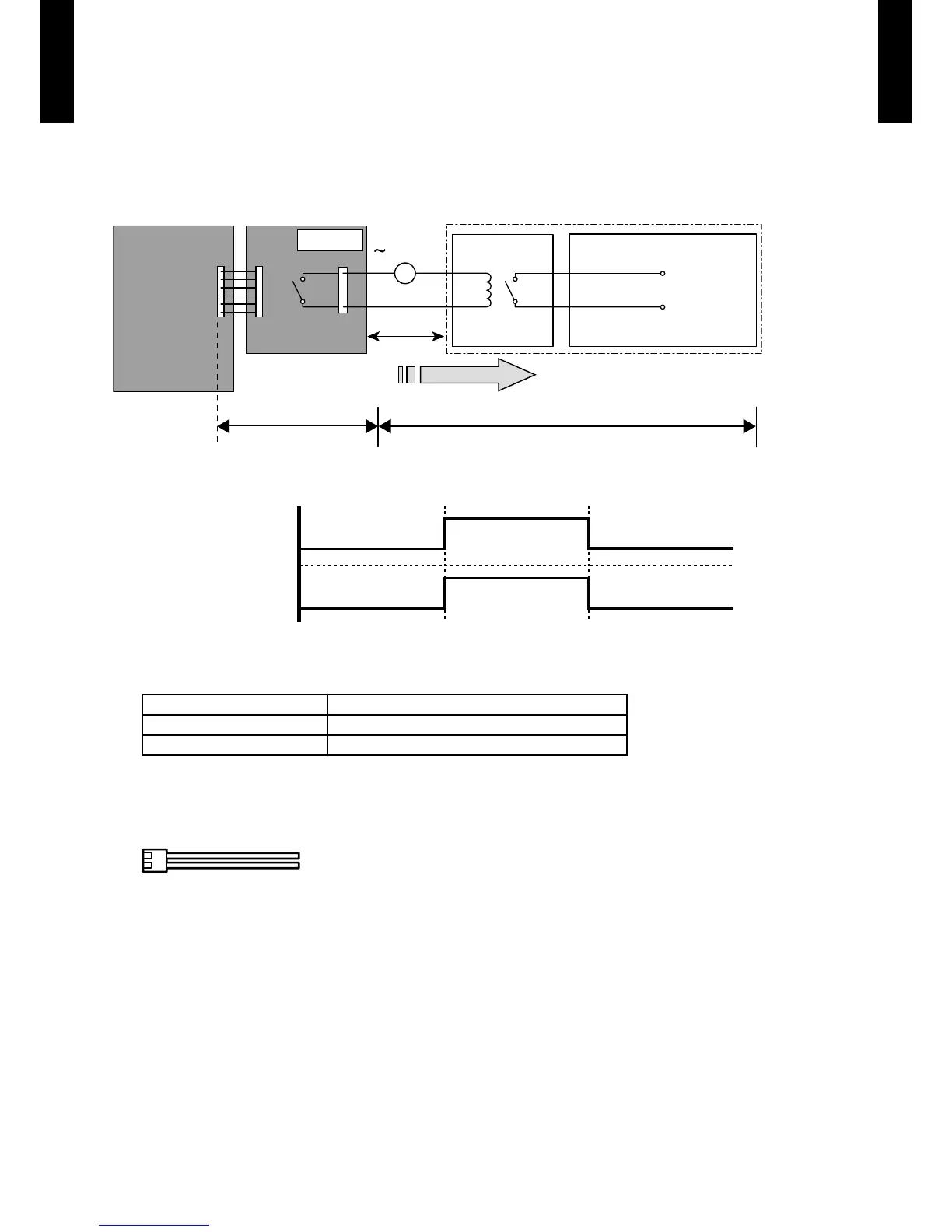

Circuit diagram example
z
* Make the distance from the PC board to the connected unit within 10m.
Relay spec. : Max.24VDC, 10mA to less than 500mA.
Field supplyOptional parts
Ex.)Display
Indoor
control PC board Communication kit Connected unit
Ex.)Relay unit
1
2
Signal
Relay
power
supply
V
Connector
24V DC
*33ft. (10m)
ON
OFF
Error
Normal
Error status
Output signal
Parts (Optional)
z
Parts name
Model name
External connect kit UTY-XWZX Z5
Communication kit UTY-TWBXF
* For operating the EXTERNAL function, the wall mounted type requires the communication kit in addition to the wire
(UT Y-XWZX Z5).
Wire (External output) : UTY-XWZXZ5
