Fujitsu ASUH18LMAS Design & Technical Manual

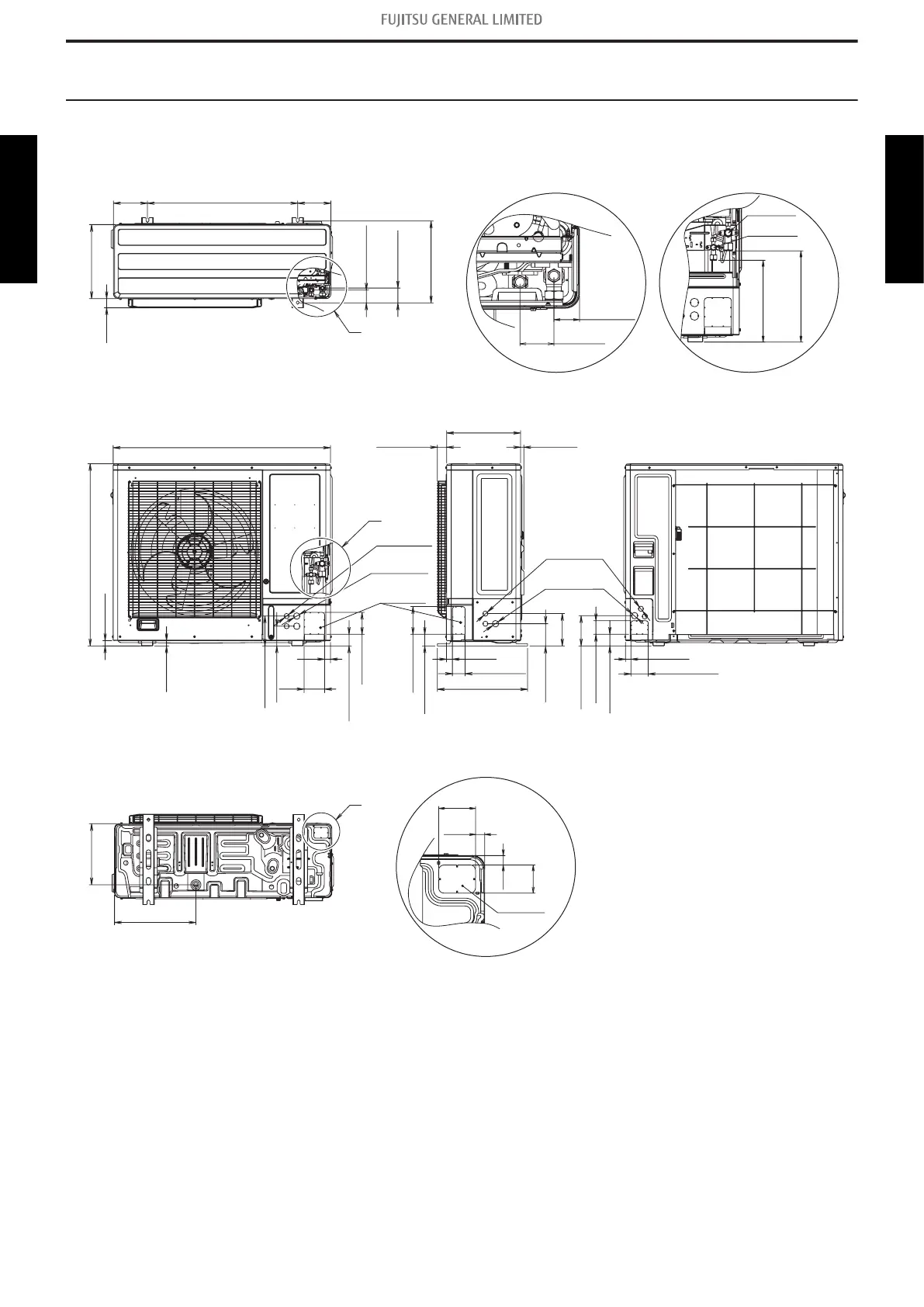

2. Dimensions
2-1. Models: AOUH18LMAS1 and AOUH24LMAS1
Unit: in (mm)
Top view
Bottom view
Side view
Front view
37 (940)
12-5/8 (320)
1-9/16 (40) 9/16 (14)
1
(25)
1 (25)
7/8 (23)
2-16/16 (75)
2-3/16 (55)
2-1/2
(63)
9/16
(15)
15-3/8 (390)
3-1/2
(89)
31 (788)
7/8 (23)
1/2 (13)
4-3/4 (120)
5-1/16 (129)
3-3/8 (85)
1-15/16 (50)
1-15/16 (50)
5/8
(16)
1-7/8
(48)
1-15/16 (50)
2-5/16 (59)
5-3/16 (131)
3-3/4 (95)
3-3/4 (96)
5-1/2
(140)
2-Ф7/8 (22)
Cable port
2-Ф7/8 (22)
Cable port
2-Ф1/8 (28)
Cable port
2-Ф1/8 (28)
Cable port
Pipe port
Pipe port
25-9/16 (650)
13-7/8 (352)
3-way valve
(Gas)
3-way valve
(Liquid)
1-1/4 (48)
Liquid
A
Detail A
5-5/8
(143)
5-13/16
(147)
2-3/16 (55)
Liquid
1-9/16
(40)
12-5/8 (320)
10-7/16
(265)
13-15/16 (354)
10-1/2 (266)
Liquid
11-5/8 (296)
Gas
2-1/2 (64)
Gas
Rear view
Detail B
B
Detail C
C
- 69 -
2-1. Models: AOUH18LMAS1 and AOUH24LMAS1
2. Dimensions
OUTDOOR UNIT AOUH18-24LMAS1 OUTDOOR UNIT AOUH18-24LMAS1
