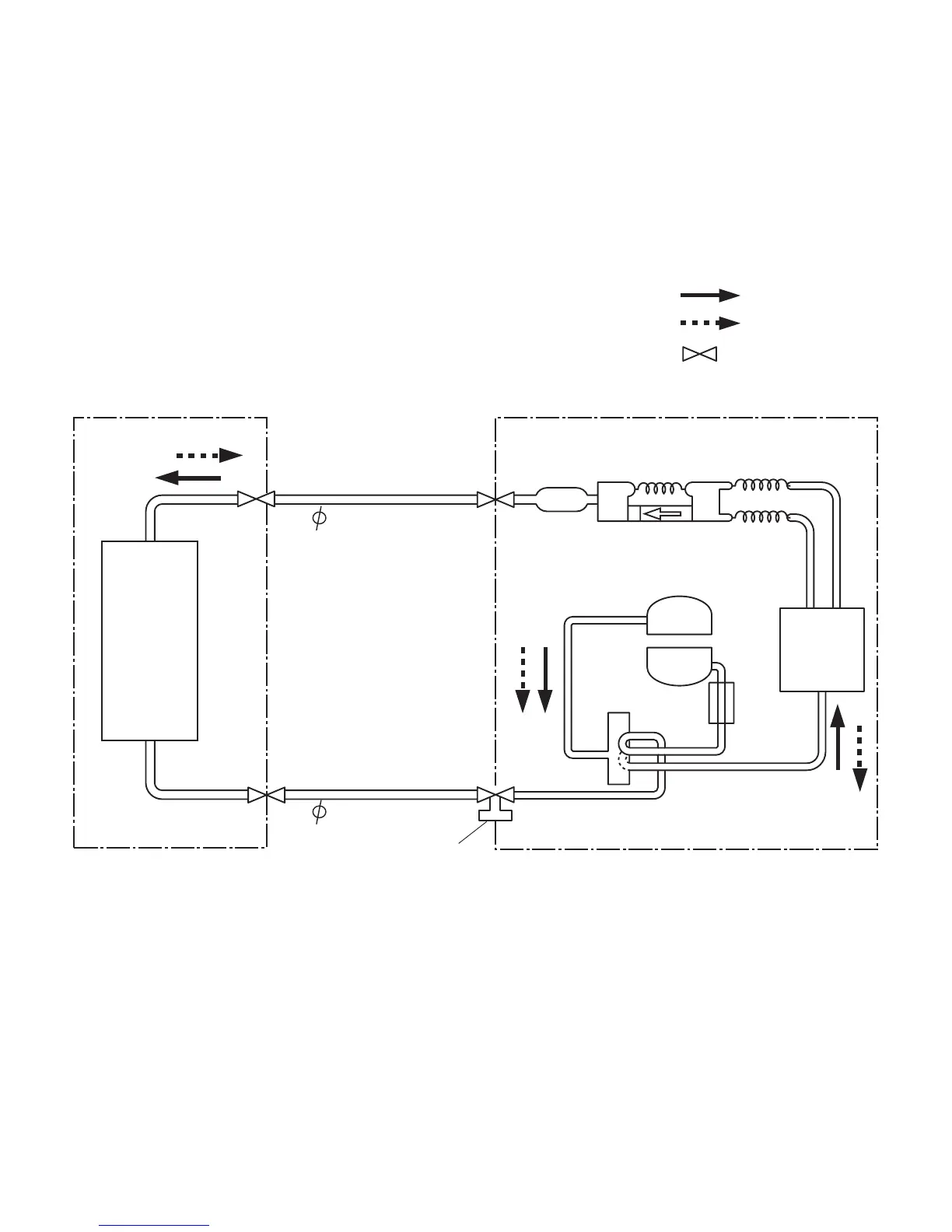

REFRIGERANT SYSTEM DIAGRAM
Refrigerantant pipe
Refrigerantant pipe
12.7mm(1/2")
Charging valve
Cooling
Heating
: Flare coupling
3-way valve
4-way
valve
2-way
valve
Strainer
Compressor
Check valve
Capillary tube
for heating
Capillary tube
for heating and cooling
OUTDOOR UNITINDOOR UNIT
Condenser
Evaporator
6.35mm(1/4")
2003.06.17 3
