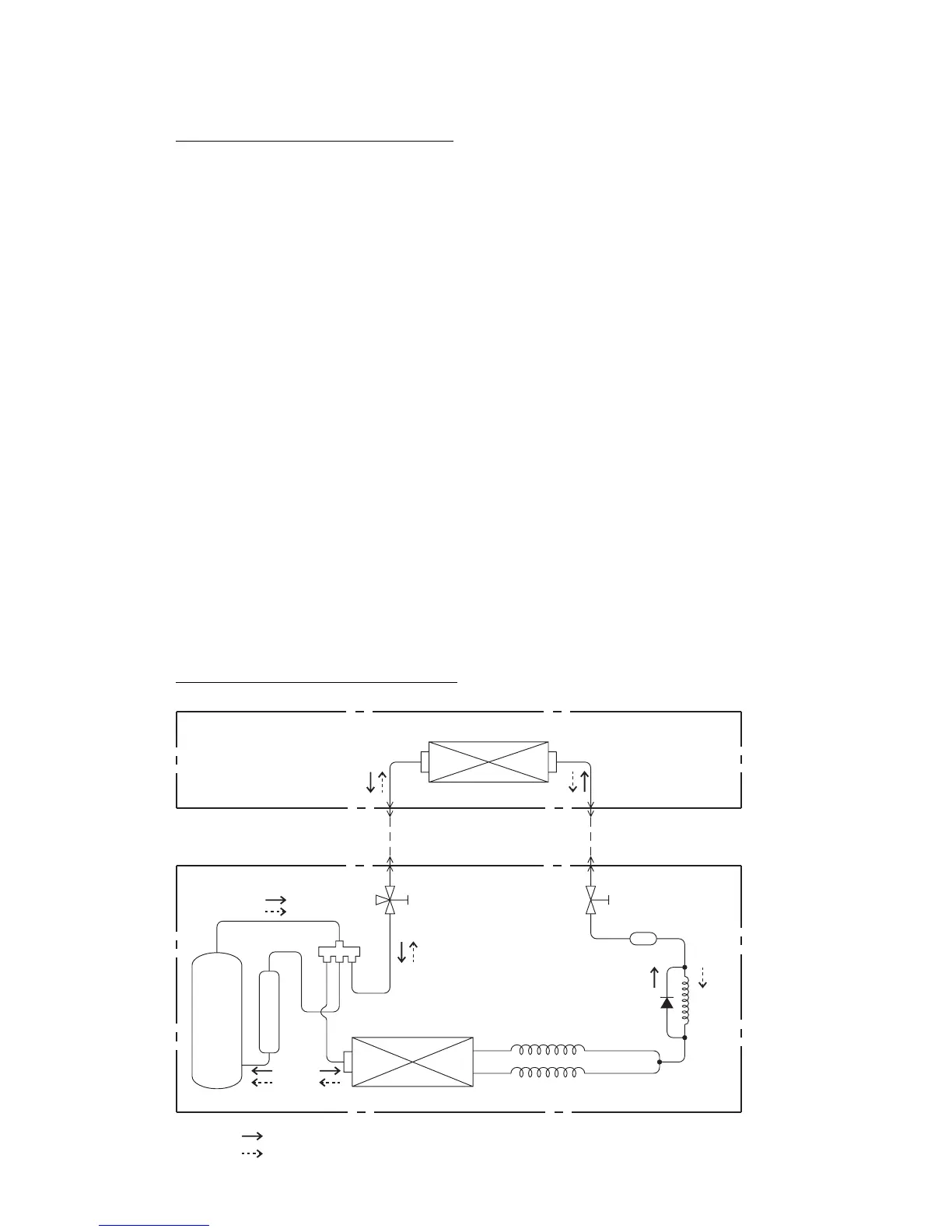

REFRIGERANT SYSTEM DIAGRAM
Models : ASY14FSBCW / AOY14FSBC
Models : ASY14USBCW / AOY14USBC
Heating
Cooling
(with Charging valve)
Condenser
Dryer
(Flare connection)
Gas pipe (9.52 dia.)
(Flare connection)
(Flare connection)
Liquid pipe (6.35 dia.)
(Flare connection)
[ INDOOR UNIT ]
[ OUTDOOR UNIT ]
[ Connecting pipe ]
Com-
pressor
52004.08.17 preliminary
3-Way valve
4-Way
valve
Capillary tube
or heating and cooling
2-Way valve
Check
valve
Capillary tube for heating
Evaporator
