6. DRY OPERATION
Ts+0.5°C
Ts -1.5°C
Ts -0.5°C
Ts+1.5°C

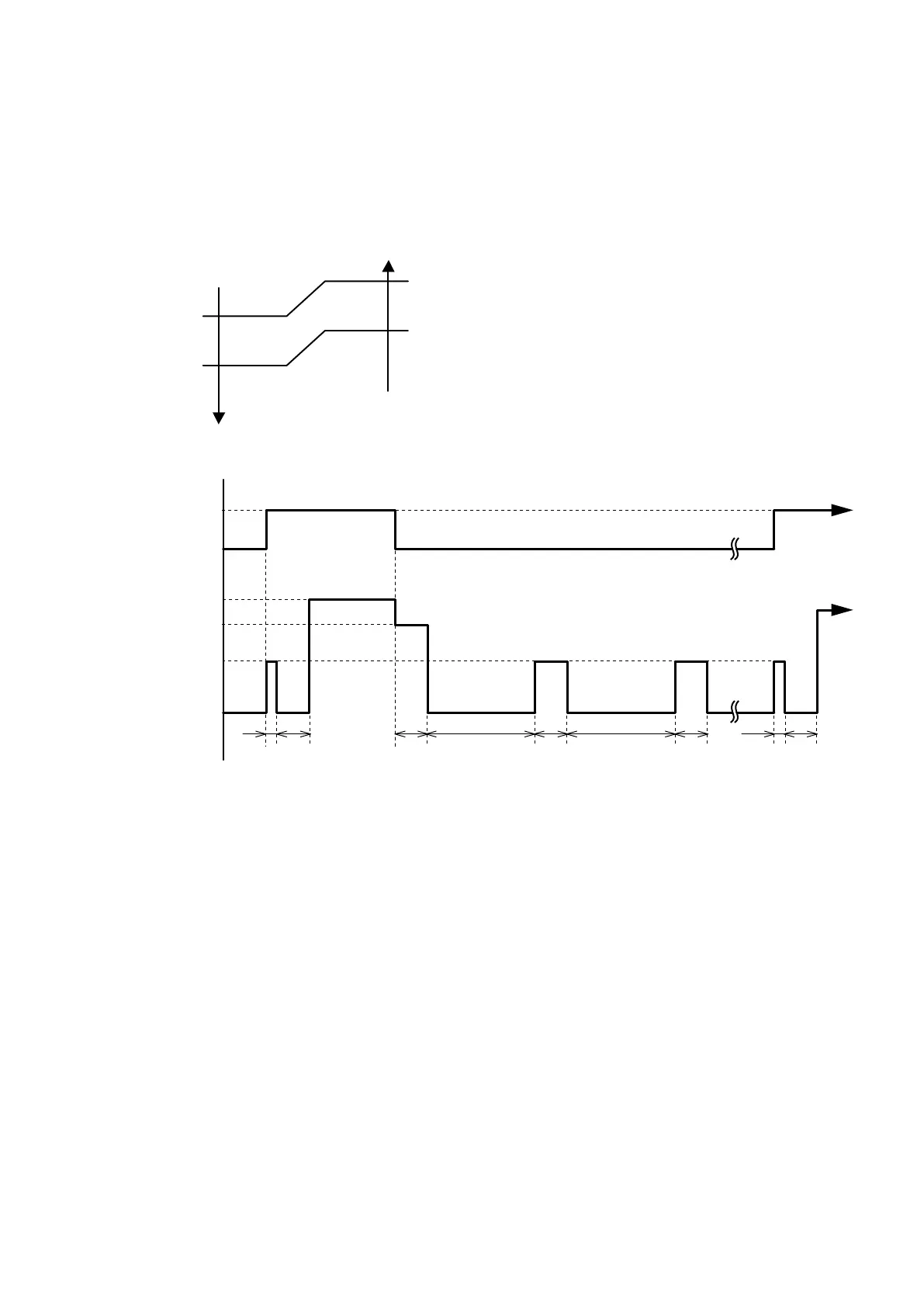

( Fig.3 : Compressor Control based on Room Temperature )
( Fig.4 : Indoor Fan Control )
Room Room
temperature temperature
X zone
J zone
Y zone
Compressor
ON
OFF
Indoor fan
Setting air flow
Indoor fan
(as shown in Table 4)
S-Lo
OFF
10 30 60 180 60 180 60 10 30
(SEC)
Refer to the Table 2.
During the dry mode operation, the fan speed setting can not be changed.
