5. CONTROL SYSTEM

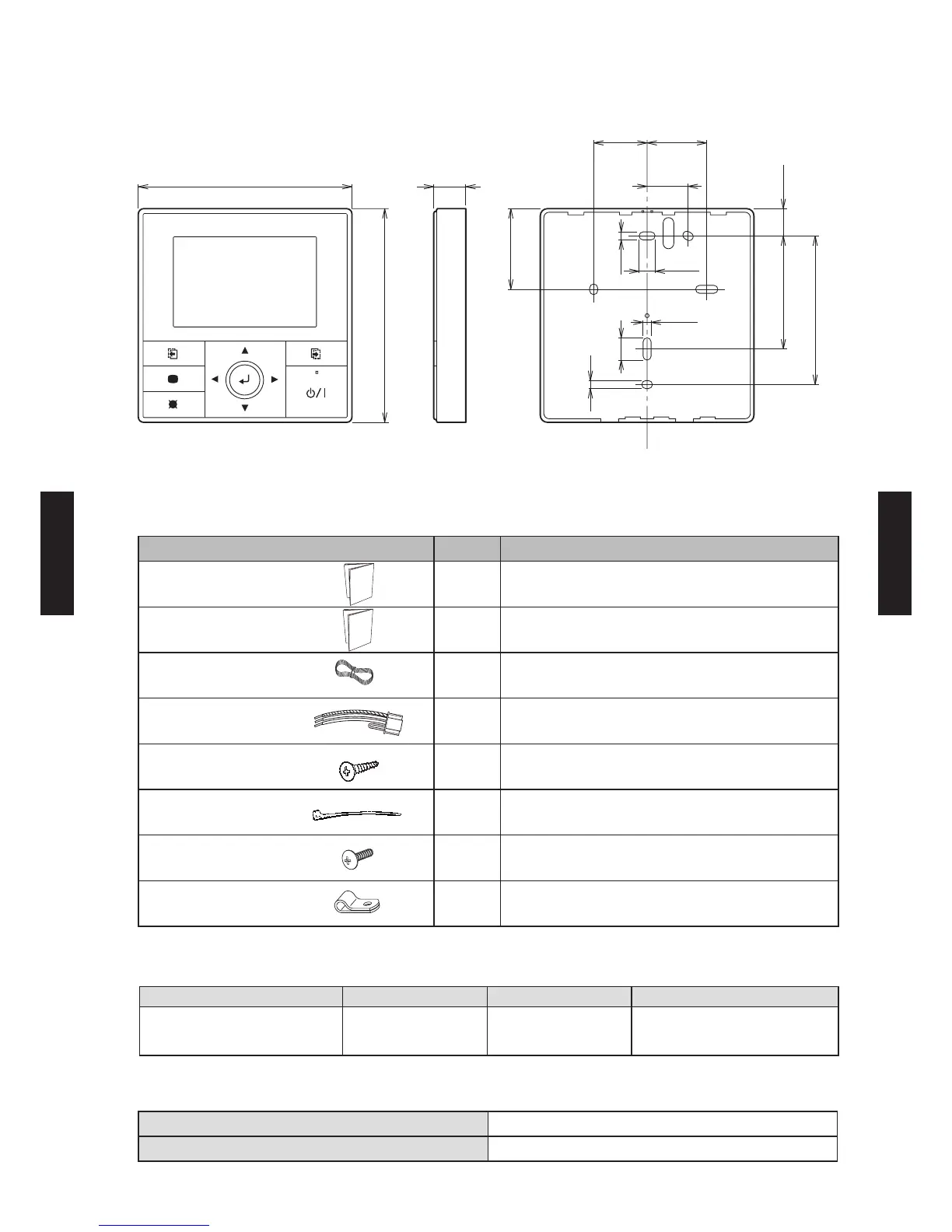

DIMENSIONS

120
120
21.3
30
45.3
12.5
4.5
4.5
15.363.5
83.5
23
9
4.5
33.5
Front View Side View Rear View
Unit : mm
PACKING LIST

Name and shape
Quantity Application
Installation manual 1
Instruction book for installation
Operating manual 1
Instruction book for operation
Remote controller cable 1
For connecting the remote controller
Connecting cable
1
For connecting the remote controller cable to the wall
mounted type indoor unit
Screw
(M4 × 16 mm)
2
For installing the remote controller
Cable tie 1
To tie the remote controller and cables
Screw
(M4 × 14 mm)
1
For installing the remote controller cable to the indoor
unit
Cable clamper 1
For installing the remote controller cable to the indoor
unit
WIRING SPECIFICATIONS

Use Cable size Wire type Remarks
Remote controller cable
0.33 mm
2
(22AWG)
Polar 3 core Use sheathed PVC cable
SPECIFICATIONS

Dimensions [H x W x D]: mm 120 x 120 x 21.3
Weight: g 220
- (05 - 23) -
