3. OUTDOOR UNIT & BRANCH BOX

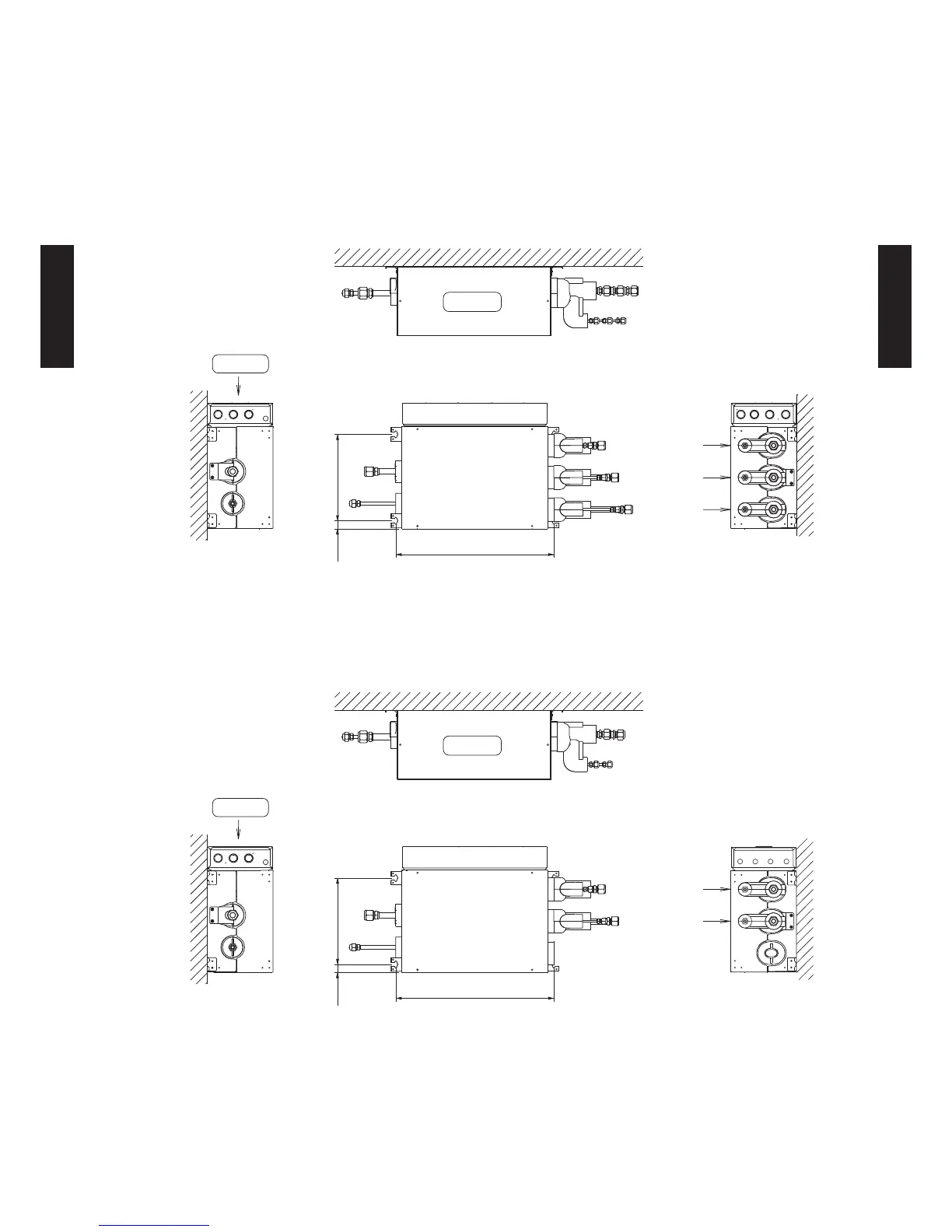

VERTICAL INSTALLATION3-2-2.
A vertical installation can only be performed when mounting on the wall.


(A vertical installation cannot be hung from the ceiling.)
Be sure to install the control box so that the top side faces up.


The positioning of the control box cannot be changed when performing a vertical installation.


Top side
Top side
Hanger bolt pitch
Outdoor unit side Indoor unit side
UNIT A
256
24
UNIT B
UNIT C
469
Top side
Top side
Hanger bolt pitch
Outdoor unit side Indoor unit side
UNIT A
256
24
UNIT B
469
[3 branches type]
[2 branches type]
Unit : mm
- (03 - 10) -
