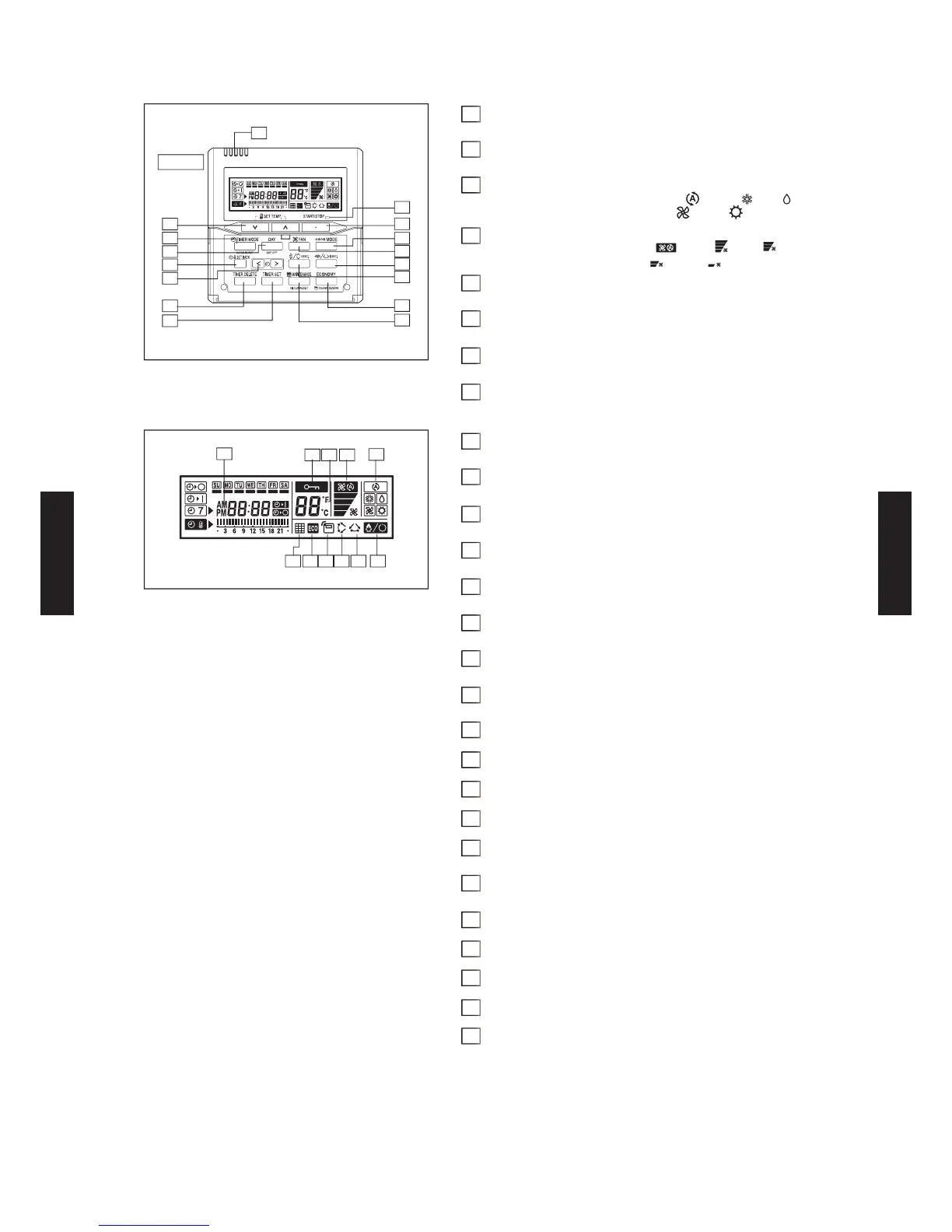

5. CONTROL SYSTEM
START/STOP button1
Pressed to start and stop operation.
SET TEMP. button2
Selects the setting temperature.
MODE button3
Selects the operating mode (AUTO , COOL , DRY ,
FAN , HEAT ).
FAN button4
Selects the fan speed (AUTO , HIGH
,
MED ,
LOW
, QUIET ).
ertica airow direction and swing button5
Press for two seconds to change the swing mode
orionta airow direction and swing button6
Press for two seconds to change the swing mode.
Built-in thermo sensor7
Detects the room temperature.
TIMER MODE (CLOCK ADJUST) button8
Selects the timer mode (OFF TIMER, ON TIMER, WEEKLY TIMER)
Sets the current time.
DAY (DAY OFF) button9
Temporarily cancels one day timer.
SET BACK button10
Pressed to select the set back timer.
Set time button11
Pressed to set time.
TIMER DELETE button12
Deletes the weekly timer schedule.
TIMER SET button13
Sets the date, hour, minute and on-off time.
ECONOMY (THERMO SENSOR) button14
FILTER RESET button15
Operation lamp16
Lights during operation and when the timer is on.
Timer and clock indicator17
Operation mode indicator18
Fan speed indicator19
Operation lock indicator20
Temperature indicator21
Displayed temperature is set temperature.
Defrost indicator22
Indicates oil recovery and defrosting operation.
Vertical swing indicator23
Horizontal swing indicator24
Economy indicator25
Thermo sensor indicator26
Filter indicator27
FUNCTIONS
Display panel
NOTE: Some button operations may not be available for all units
or systems. For details, please see operation manual.
7
Display
13
12
11
10
2
8
9
16
15
14
1
3
5
4
6
18
17
1920 21
2223 242527 26
- (05 - 26) -
CONTROL
SYSTEM
CONTROL
SYSTEM
