5. CONTROL SYSTEM

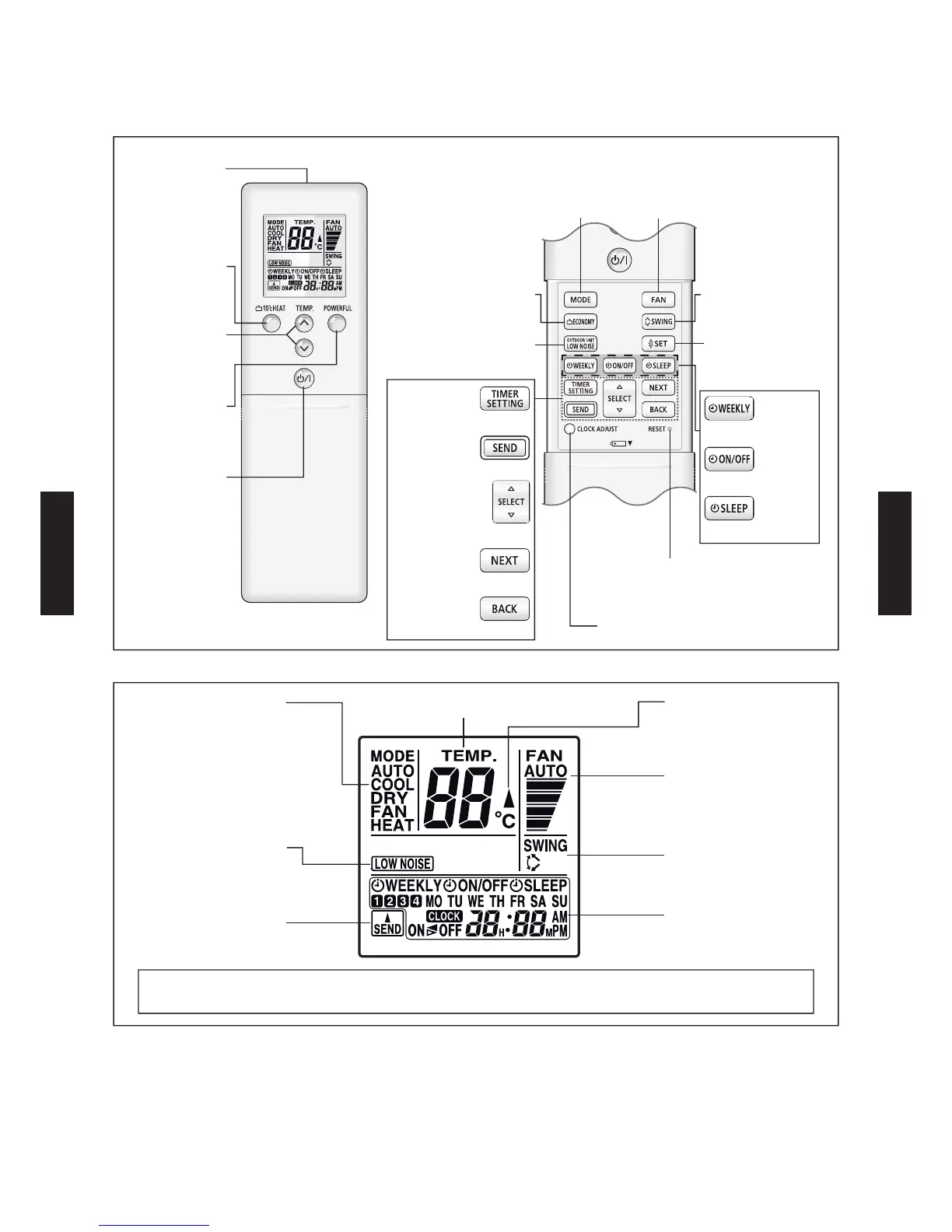

FUNCTIONS (AR-REA2E)

Display panel
Note: Some button operations may not be available for all units or systems.
For details, please see operation manual.
Signal
Transmitter
10 °C HEAT
button
TEMP. button
POWERFUL
button
Start / Stop
button
MODE button
ECONOMY button
OUTDOOR UNIT
LOW NOISE button
SWING button
TIMER SETTING button
SEND button
SELECT button
NEXT button
BACK button
SET button
WEEKLY button
ON/OFF button
SLEEP button
FAN button
CLOCK ADJUST button
RESET button
To facilitate explanation, the accompanying illustration has been drawn to show all possible indicators; in actual
operation, however, the indicator will only show those indicators appropriate to the current operation.
Mode Indicator
Low Noise Mode
Indicator
Clock & Timer
Indicator
Send Indicator
Temperature Indicator
Transmit Indicator
Fan Speed Indicator
Swing Indicator
- (05 - 43) -
CONTROL
SYSTEM
CONTROL
SYSTEM
