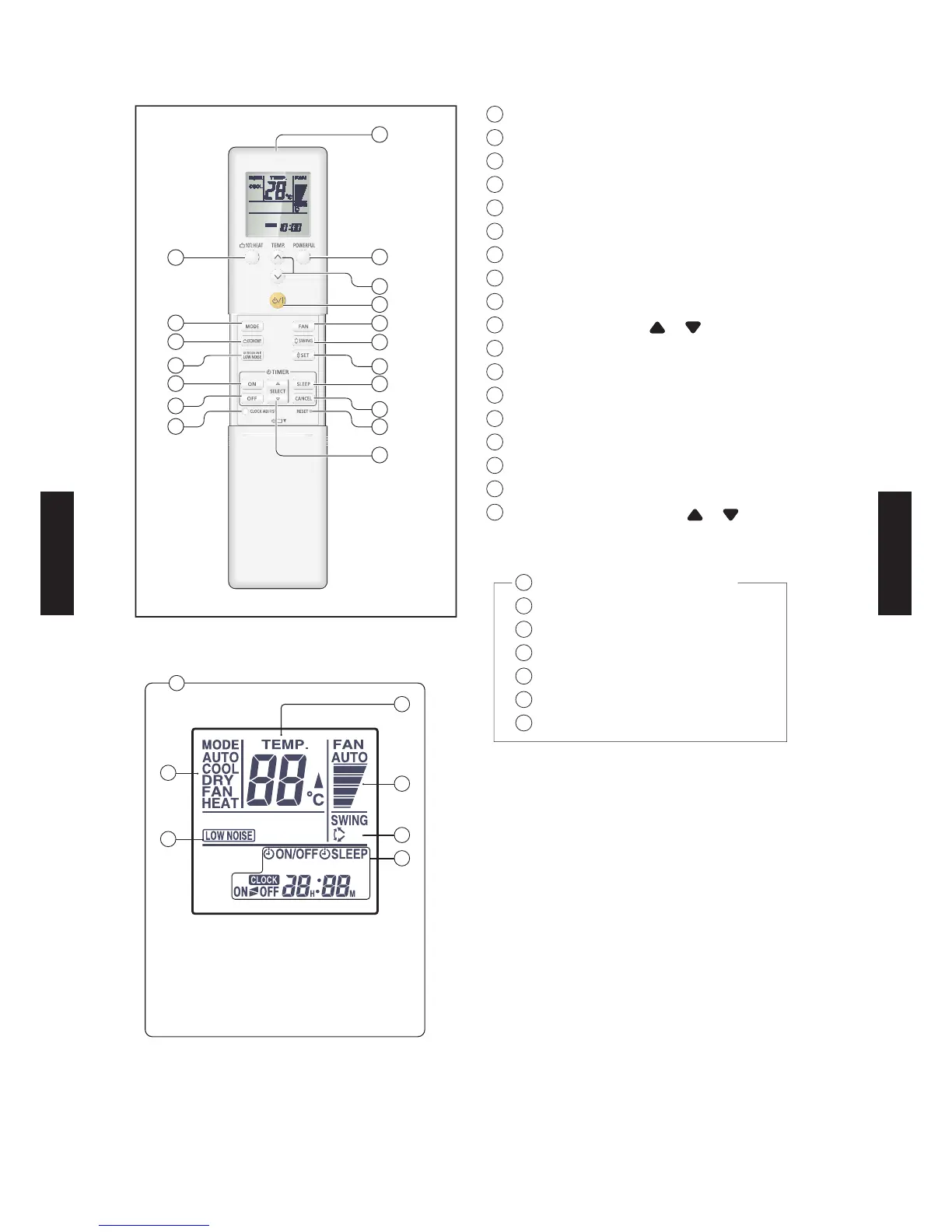

5. CONTROL SYSTEM
FUNCTIONS (AR-REB1E)

Display panel
19
20
22
23
24
25
21
To facilitate explanation, the accompanying
illustration has been drawn to show all
possible indicators; in actual operation,
however, the display will only show those
indicators appropriate to the current
operation.
2
3
6
1
18
9
15
12
13
11
10
14
16
17
4
8
7
5
1
Signal Transmitter
2
10 °C HEAT button
3
MODE button
4
ECONOMY button
5
OUTDOOR UNIT LOW NOISE button
6
ON TIMER button
7
OFF TIMER button
8
CLOCK ADJUST button
9
POWERFUL button
10
TEMP. Set button ( / )
11
Start/Stop button
12
FAN button
13
SWING button
14
SET button
15
SLEEP TIMER button
16
CANCEL button
17
RESET button
18
TIMER SELECT button ( / )
19
Remote Controller Display
20
Operation Mode Indicator
21
Low Noise Mode Indicator
22
Temperature Set Indicator
23
Fan Speed Indicator
24
Swing Indicator
25
Clock & Timer Indicator
Note: Some button operations may not be available for all
units or systems. For details, please see operation
manual.
