2. MODEL SELECTION

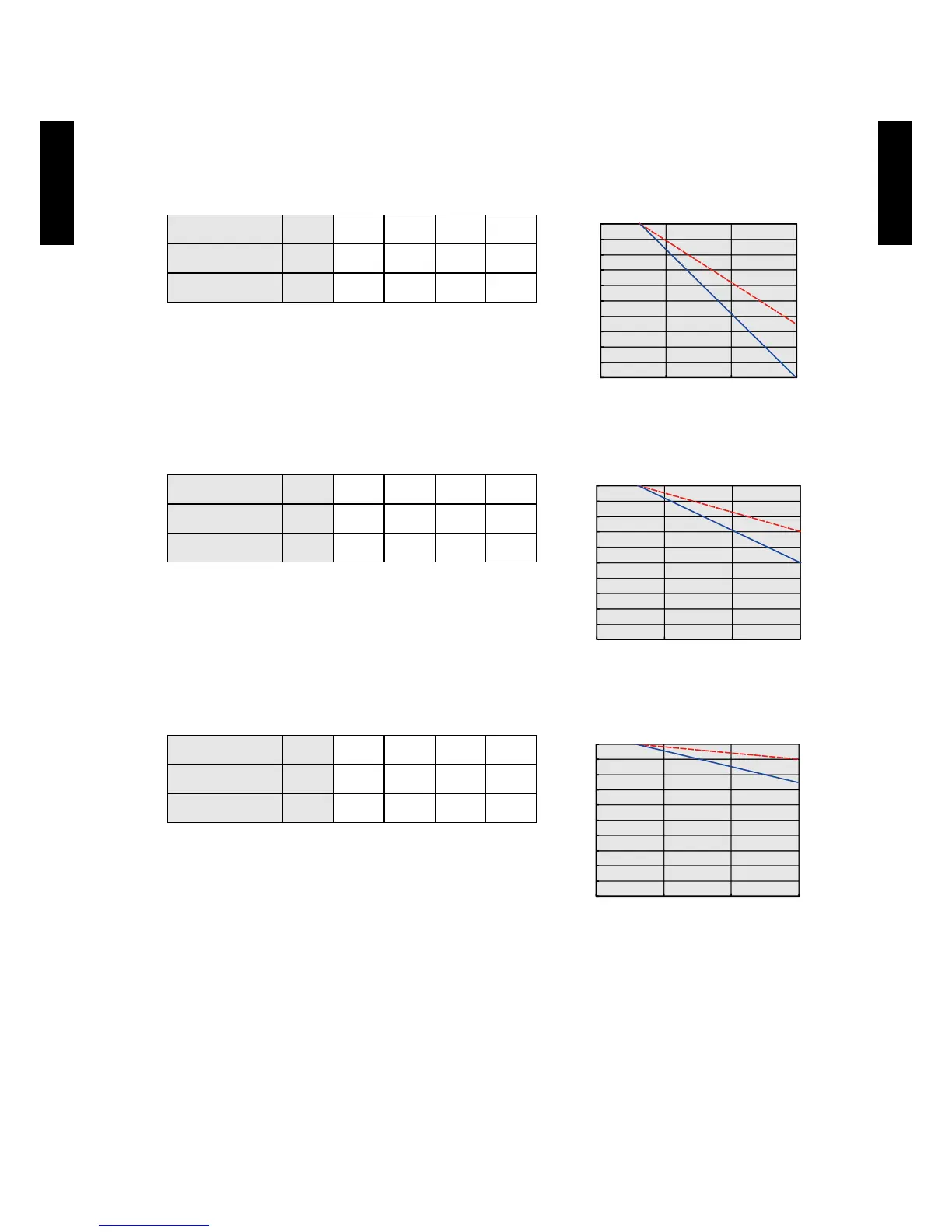

CAPACITY CHANGE RATE BY BRANCH PIPING LENGTH

Change rate in capacity

Refrigerant piping connection diameter: Liquid ø6.35mm, Gas ø9.52mm


Indoor unit model code: 07 / 09 / 12


Branch piping
length
m3 510 15
Change rate in
cooling capacity
% 100 98.3 94.2 90.0
Change rate in
heating capacity
% 100 98.9 96.2 93.5
Refrigerant piping connection diameter: Liquid ø6.35mm, Gas ø12.70mm


Indoor unit model code: 14 / 18


Branch piping
length
m3 510 15
Change rate in
cooling capacity
% 100 99.2 97.1 95.0
Change rate in
heating capacity
% 100 99.5 98.3 97.0
Refrigerant piping connection diameter: Liquid ø6.35mm, Gas ø15.88mm


Indoor unit model code: 24


Branch piping
length
m3 510 15
Change rate in
cooling capacity
% 100 99.6 98.5 97.5
Change rate in
heating capacity
% 100 99.9 99.5 99.0
Change rate in capacity (%)
Branch piping length
Heating
Cooling
0 5
90
95
100
10 15 (m)
Change rate in capacity (%)
Branch piping length
Heating
Cooling
0 5
90
95
100
10 15 (m)
Change rate in capacity (%)
Branch piping length
Heating
Cooling
0 5
90
95
100
10 15 (m)
- (02 - 16) -
