6. SYSTEM DESIGN

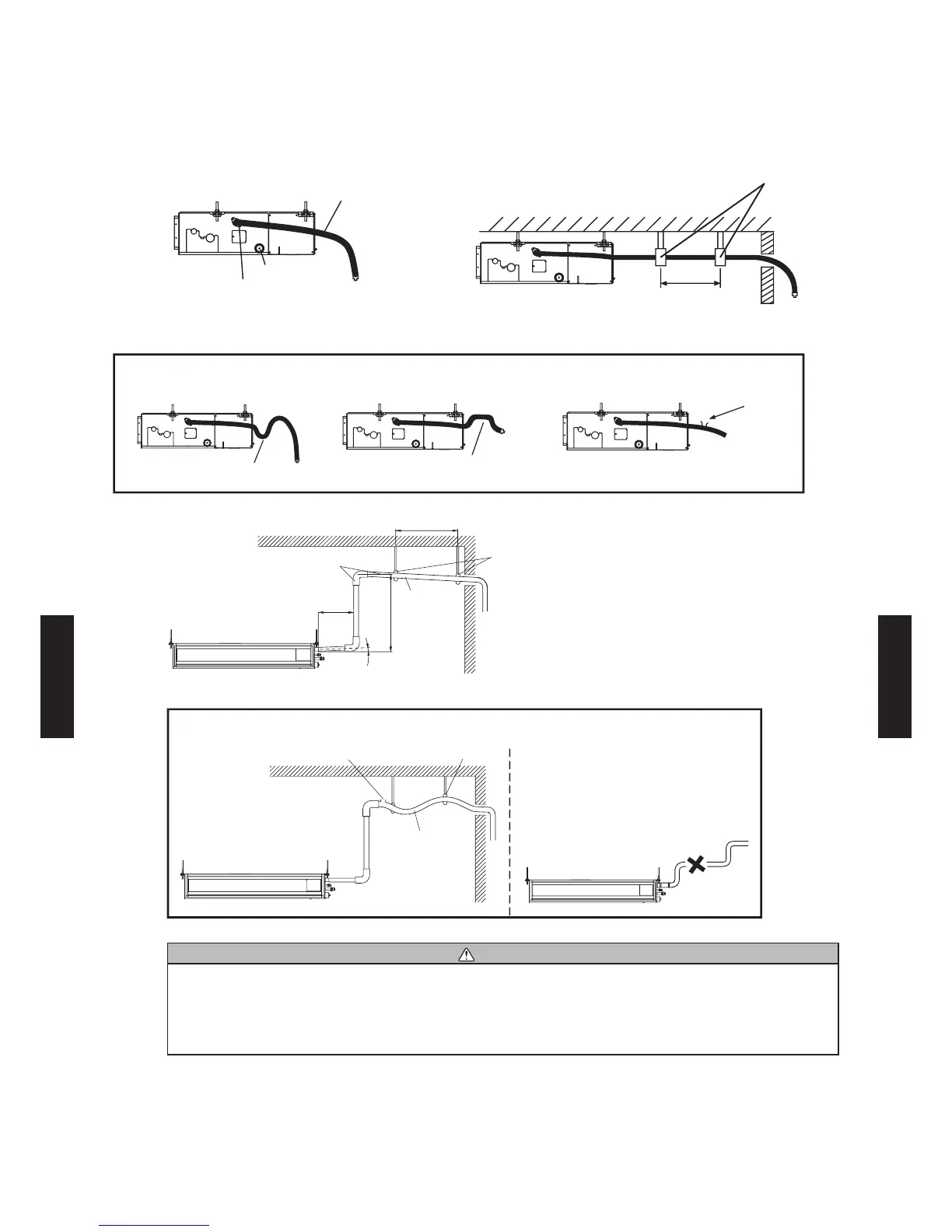

SLIM DUCT TYPE

Ceiling concealed setting

Drain hose
Arrange the drain hose
lower than this position
Drain cap
Supporter
1.5 to 2.0m
prohibited
Trap

Rise

Air bleeding

VP25
[O.D.32mm
or more]
Locally arranged pipe
Max.
300 mm
Supporter
700 mm or less
Horizontal or
upward gradient
Gap of 1.5-2.0 m
prohibited
Air bleeding
Rise
Trap
CAUTION
Drain lift-up pipe restrictions:
 itup height   ro ceiing
 rain hose pipe ength   between indoor unit and itup pipe
When dimensions exceed the above restrictions, it will cause water leakage.
- (06 - 121) -
