6. SYSTEM DESIGN

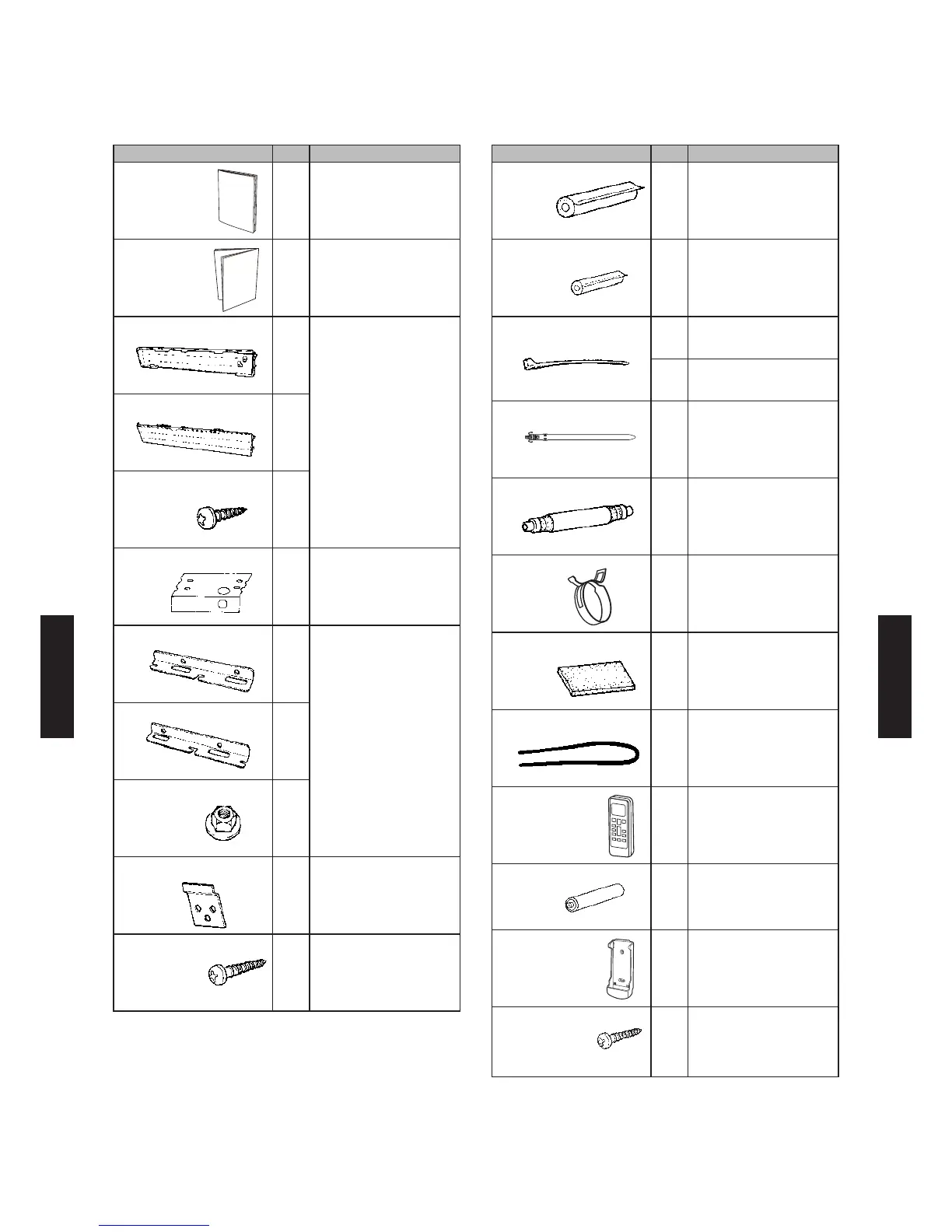

FLOOR / CEILING TYPE

Name and shape Q'ty Application
Operating
manual
1
Installation
manual
1
Cover plate (left)
1
Cover plate (right)
1
Tapping screw
(M4 x 10mm)
2
Installation template
1
For positioning the
indoor unit
For under ceiling type
Bracket (left)
1
For suspending the
indoor unit from ceiling
Bracket (right)
1
Special nut
4
Wall bracket
2
For suspending the
indoor unit on the wall
Tapping screw
(M4 x 20mm)
6
or ing the wa
bracket
Name and shape Q'ty Application
Coupler heat insulation
(Large)
1
For indoor side pipe joint
(Large pipe)
Coupler heat insulation
(Small)
1
For indoor side pipe joint
(Small pipe)
Cable tie
Large
1
For binding the drain
hose
Small
2
For electric wiring
Wire clamper
1
For electrical wiring
Drain hose
1
For installing drain pipe
VP25 (O.D.32, I.D.25)
Hose band
1
For installing drain hose
Insulation (drain hose)
1
Adhesive type
70 x 230 (mm)
VT wire
1
or ing the drain hose
L=280 (mm)
Remote controller
1
Battery
2
Remote controller
holder
1
Tapping screw
(M3 x 12mm)
2
For mounting the remote
controller holder
- (06 - 133) -
