7. OPTIONAL PARTS
469
469
432
433
75
195
85
68
95
256
372
148 25
75 70
95
152
24
174
154
110
134






216
176

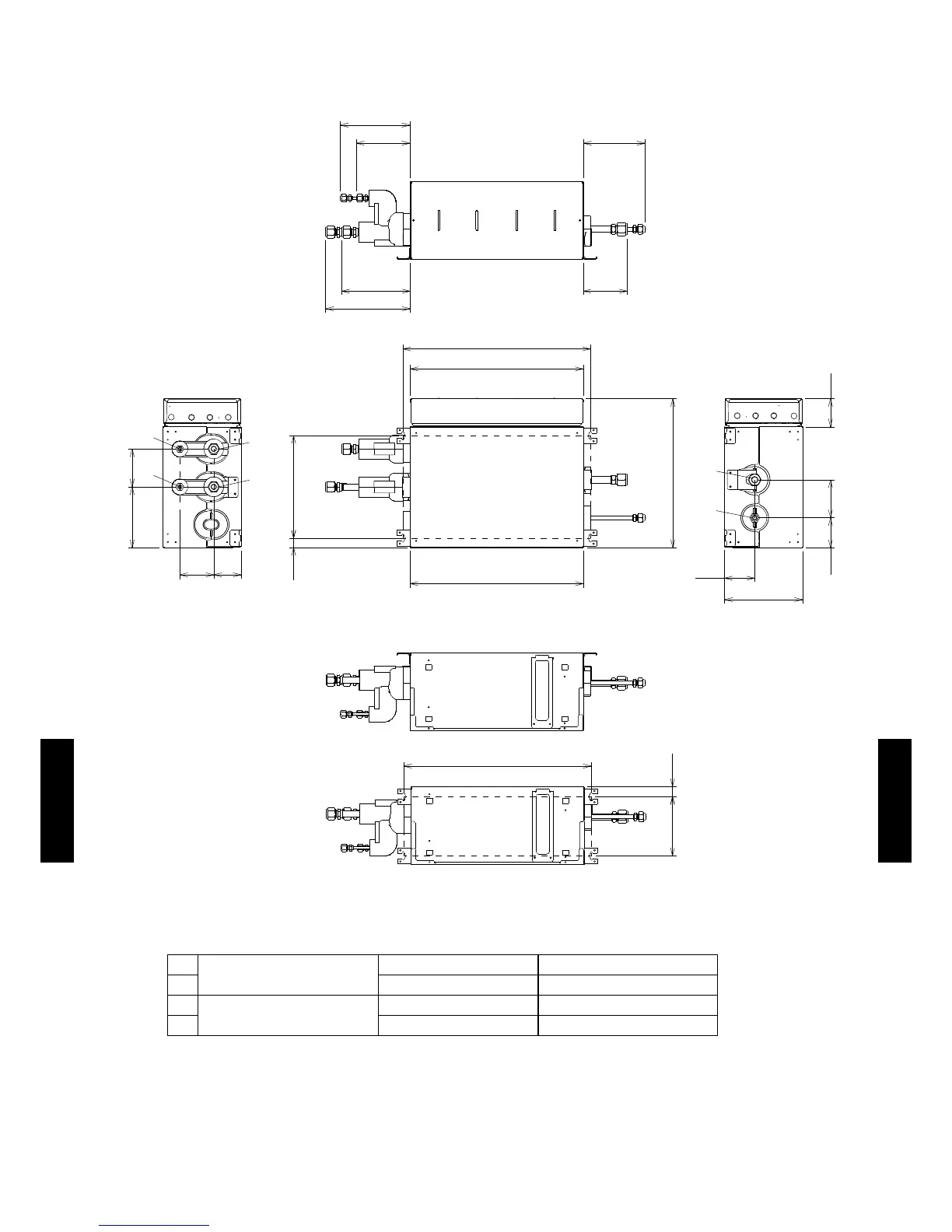

Ceiling hanging
Indoor unit side
Outdoor unit side
Wall hanging
PIPE DIAMETER


Main pipe
Liquid pipe ø 3/8 inch (9.52 mm)

Gas pipe ø 5/8 inch (15.88 mm)

Branch pipe
Liquid pipe ø 1/4 inch (6.35 mm)

Gas pipe ø 1/2 inch (12.70 mm)
Unit : mm
[2 branches type]
- (07 - 03) -
OPTIONAL PARTS OPTIONAL PARTS
