3.2. Remote controller
When you use the optional remote controller, the appearance
and the operation procedure may dier.
For details, refer to the operation manual of each remote
controller.
: The setting must be done while the setting screen is displayed
for each function.
: The button is controllable only when the air conditioner is
operating.
: The instruction is relating to the wireless LAN control (optional).
*1) Before starting operation, make sure that the intake grille is closed
completely. Incomplete closing may aect the proper function or
performance of the product.
*2) Indicator lamps light in the following conditions.
Name
Color Operation or condition
Operation Green Normal operation
Timer Orange Timer operation
Economy Green Economy operation
10 °C Heat operation
WLAN Orange Wireless LAN control is
active.
For Energy saving operations ...... Refer to page 7.
Activates or deactivates the Economy
operation.
Activates or deactivates the Energy saving
program that uses the occupancy sensor
.
For Outdoor Unit Low Noise operation
... Refer to page 8.
Activates or deactivates the Outdoor Unit Low
Noise operation.
Remote controller display
In this section, all the possible indicators are displayed for description.
In actual operation, the display is linked with the button operation, and
only shows the necessary indicators for each setting.
Do not press this button in normal use.
It starts the test run (for use by authorized service personnel only).
NOTE:
If the test run starts unintentionally, press
to quit the test
run.
Signal transmitter
Aim at the signal receiver of the indoor unit properly.
• Operating range is approximately 7 m.
• [
] will appear when the signal is transmitted.
• The indoor unit will emit a beep when it receives the signal
properly. If there is no beep, press the button again.
For Basic operations ..................... Refer to page 5.
Starts or stops the air conditioner operation.
Changes the operation mode.
Adjusts the setting temperature.
For 10 °C Heat operation .............. Refer to page 8.
Activates the 10 °C Heat operation.

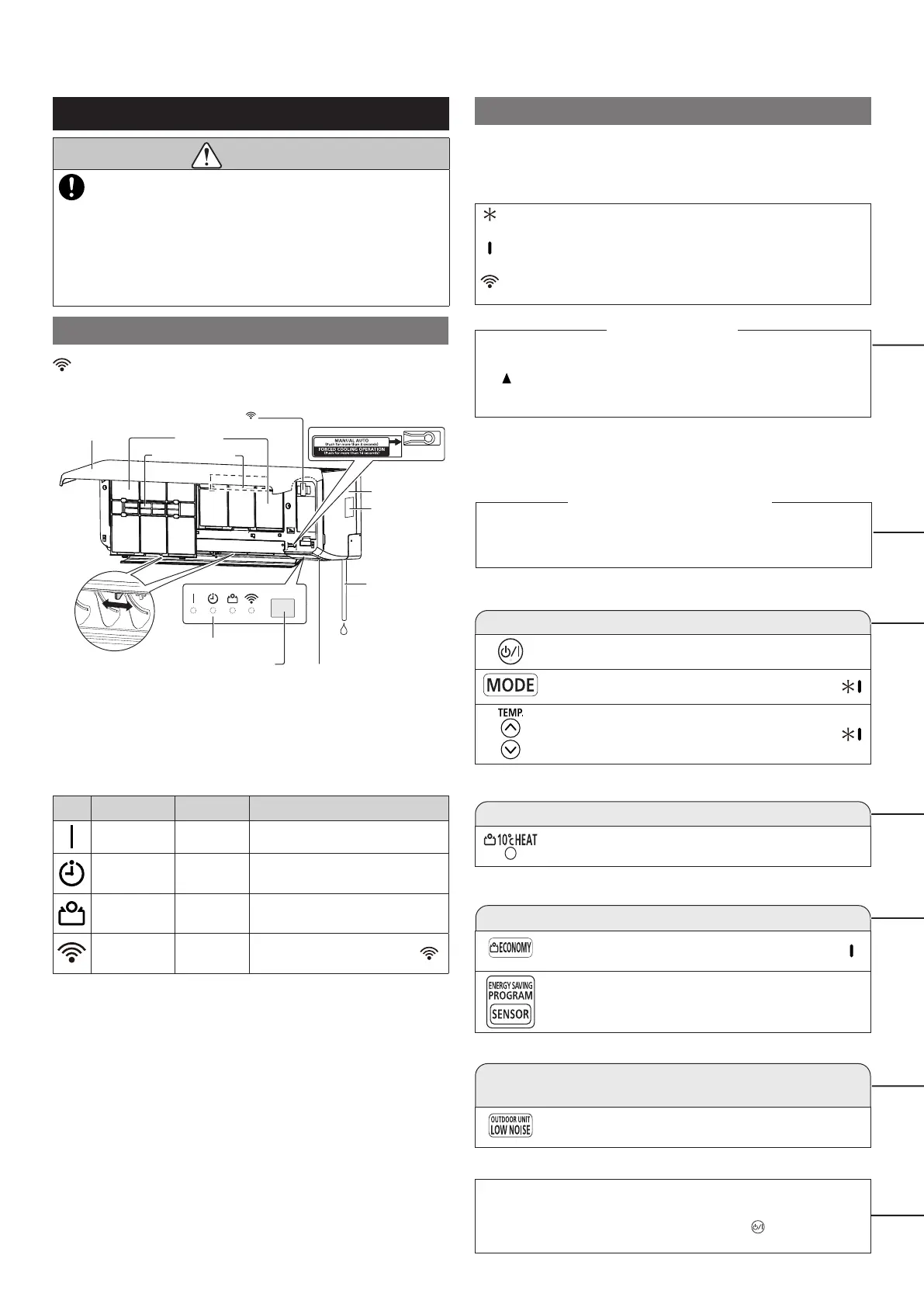

3. NAME OF PARTS
CAUTION
For appropriate signal transmission between the remote
controller and the indoor unit, keep the signal receiver
away from the following items:
- Direct sunlight or other strong lights
- Flat-panel television screen
In rooms with instantaneous uorescent lights, such as
inverter type ones, the signal may not be transmitted
properly. In such a case, consult the store of purchase.
3.1. Indoor unit
: The instruction is relating to the wireless LAN control (optional).
Remote control
signal receiver
Vertical louvers
For Manual Auto operation
and Filter indicator reset
(Refer to page 15.)
Rating label
Drain hose
Indicator lamps
*2)
Occupancy sensor
(Refer to page 7.)
Front panel
Air lter
Intake grille
*1)
Air cleaning lter
WLAN adapter slot
