Fujitsu ASYG09KHCA User Manual

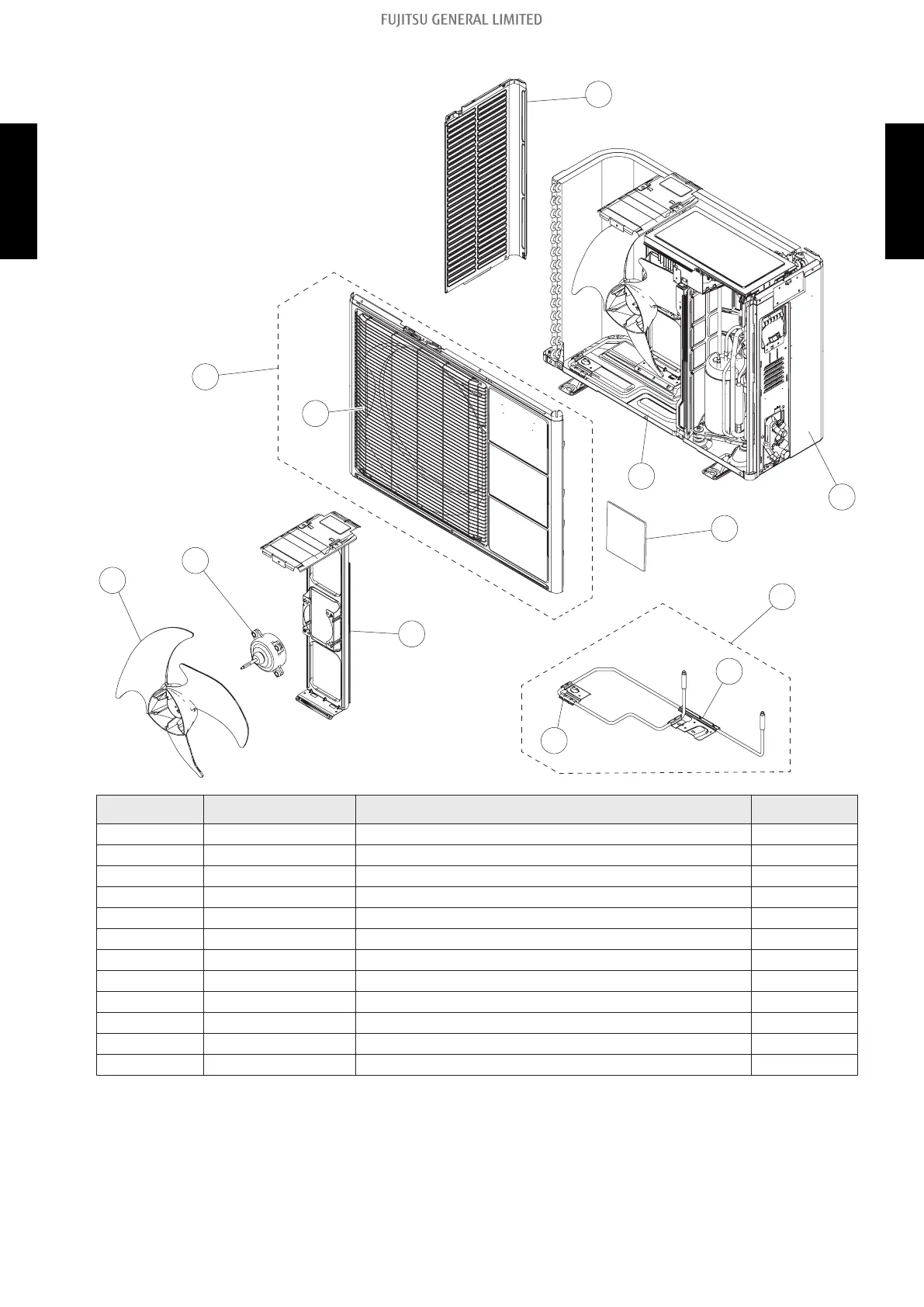

¢ Chassis
57
55
58
59
60
56
51
50
54
61
53
52
Item no. Part no. Part name Service part
50 9319151007 Emblem ♦
51 9318463149 Front panel assy ♦
52 9318467017 Fan guard ♦
53 9318461015 Cabinet left assy ♦
54 9318462081 Cabinet right assy ♦
55 9313808013 Propeller fan ♦
56 9603495008 Brushless DC motor ♦
57 9316041011 Motor bracket assy ♦
58 9900616045 Heater unit assy ♦
59 9900616045 Heater holder A ♦
60 9318651003 Heater holder B ♦
61 9316885059 Base assy ♦
3-1. Models: AOYG09KHCAN, AOYG12KHCAN, and AOYG14KHCAN - (02-9) - 3. Outdoor unit parts list
