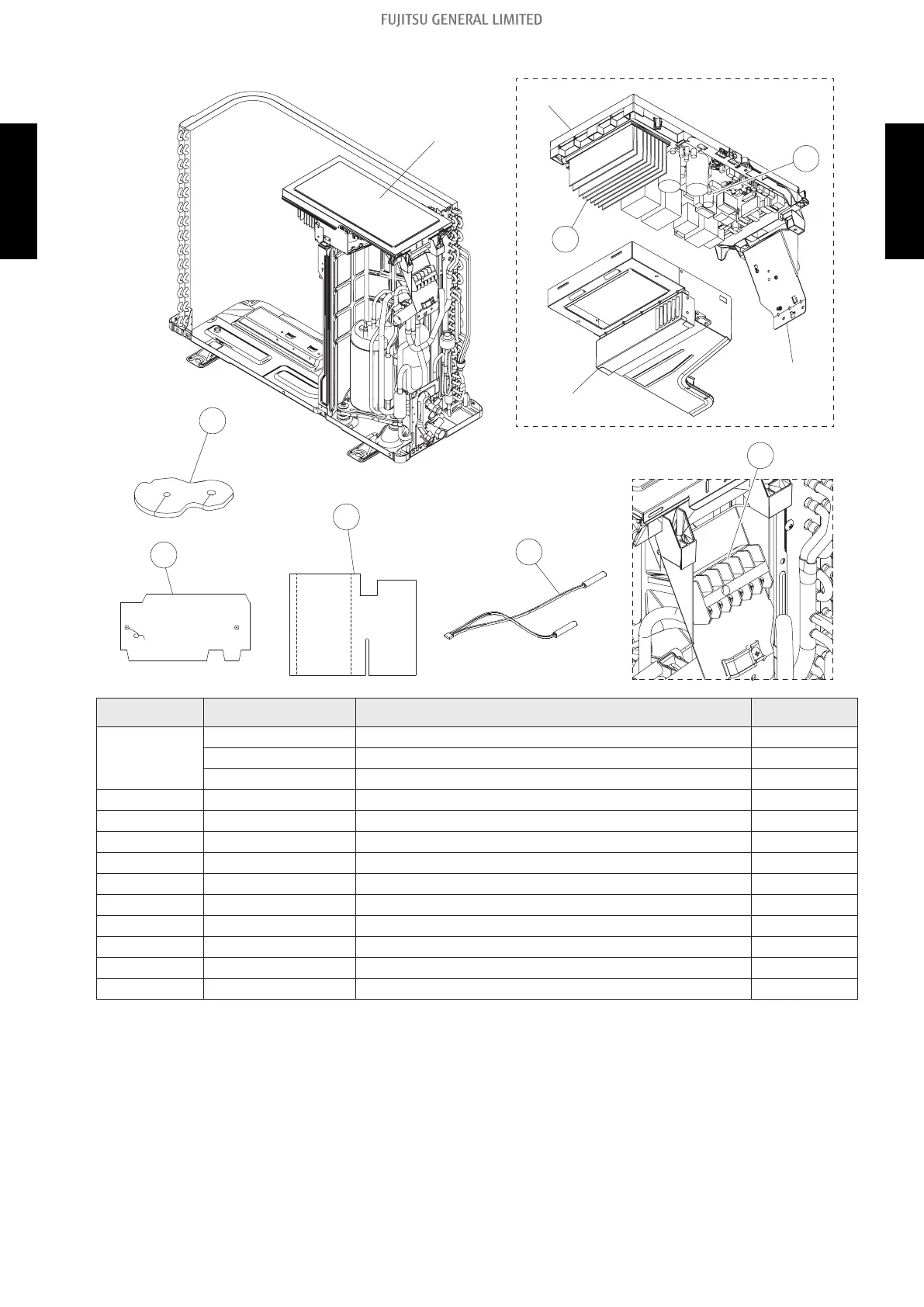

¢ Control unit
102
a
b
c
103
105
104
106
d
100
101
Item no. Part no. Part name Service part
100
9710802362 Main PCB (for 09 model) ♦
9710802379 Main PCB (for 12 model) ♦
9710802386 Main PCB (for 14 model) ♦
101 9900380007 Terminal ♦
102 9319540030 Heat sink ♦
103 9900935016 Thermistor assy ♦
104 9319731025 Noise insulator A ♦
105 9322211002 Noise insulator F ♦
106 9313371012 S-insulator H ♦
a — Shield panel —
b — PCB holder —
c — Terminal bracket —
d — Inverter case assy —
3-1. Models: AOYG09KHCAN, AOYG12KHCAN, and AOYG14KHCAN - (02-10) - 3. Outdoor unit parts list
