Fujitsu ASYG09LLCE Service Instruction

3. SLEEP TIMER
If the sleep is set, the room temperature is monitored and the operation is stopped automatically.
If the operation mode or the set temperature is change after the sleep timer is set, the operation is
continued according to the changed setting of the sleep timer from that time ON.
Set temperature rises
( Ts : Set temperature )
Stop of operation
Set temperature lowers
( Ts : Set temperature )
Ts
Stop of operation

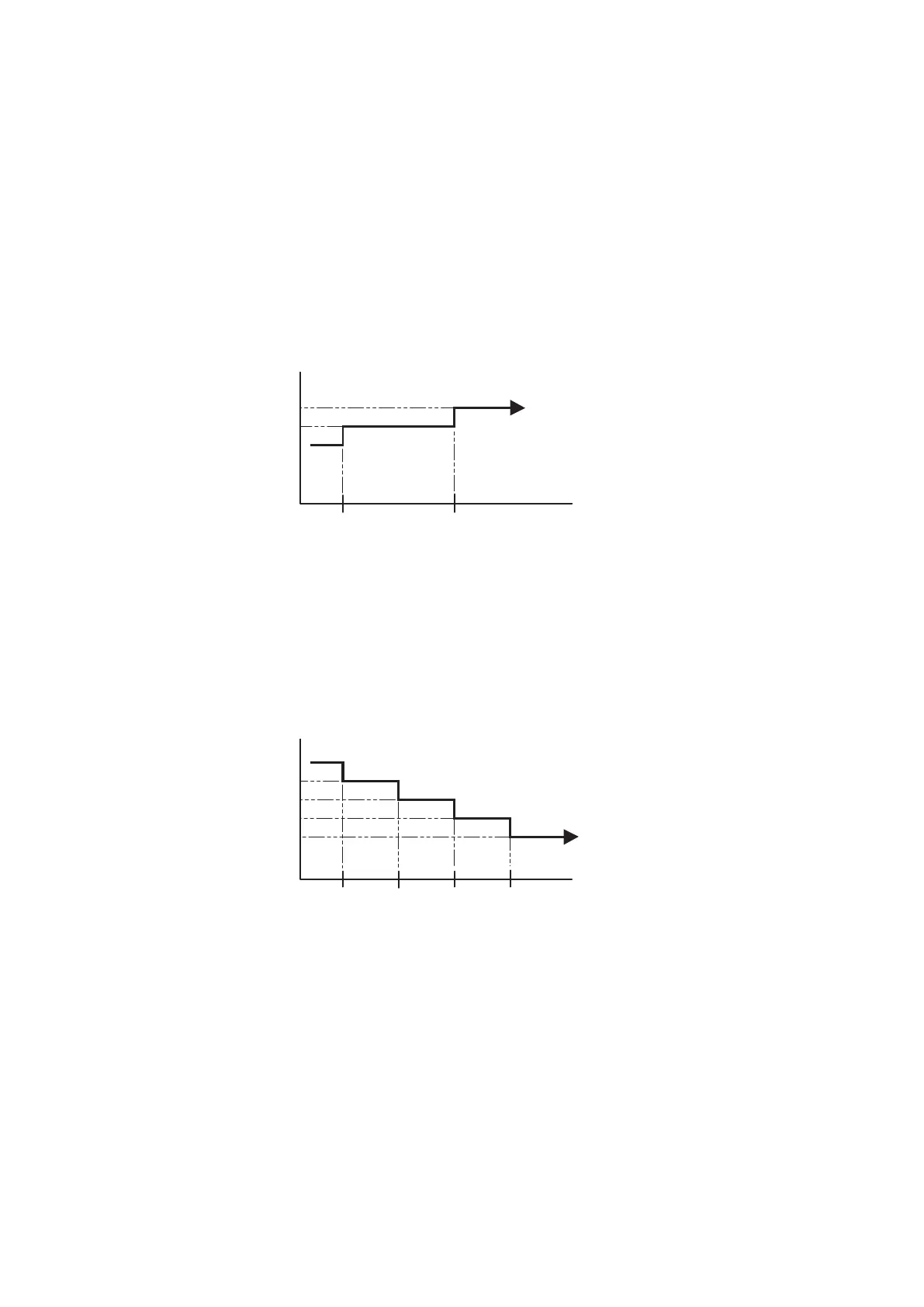

In the cooling operation mode
When the sleep timer is set, the setting temperature is increased 1°C.
It increases the setting temperature another 1°C after 1 hour.
After that, the setting temperature is not changed and the operation is stopped at the time
of timer setting.
Ts
+1°C
+2°C
Set
60min
In the heating operation mode
When the sleep timer is set, the setting temperature is decreased 1°C.
It decreases the setting temperature another 1°C every 30 minutes.
Upon lowering 4°C, the setting temperature is not changed and the operation stops at
the time of timer setting.
-4°C
-3°C
-2°C
-1°C
Set
30min
30min
30min
01-10

Fujitsu ASYG09LLCE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Inverter technology	Yes
Refrigerating medium	R410A
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	650 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Heating capacity in watts (nominal) (Average heating season)	3000 W
Airflow	1670 m³/h
Outdoor unit noise level	- dB
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	127 kWh
Hourly energy consumption (cooling)	- kWh
Indoor unit type	Wall-mountable
Indoor unit depth	206 mm
Indoor unit width	820 mm
Indoor unit height	262 mm
Indoor unit weight	7000 g
Indoor unit noise level (high speed)	720 dB
