Fujitsu ASYG09LLCE Service Instruction

Trouble shooting 6
INDOOR UNIT

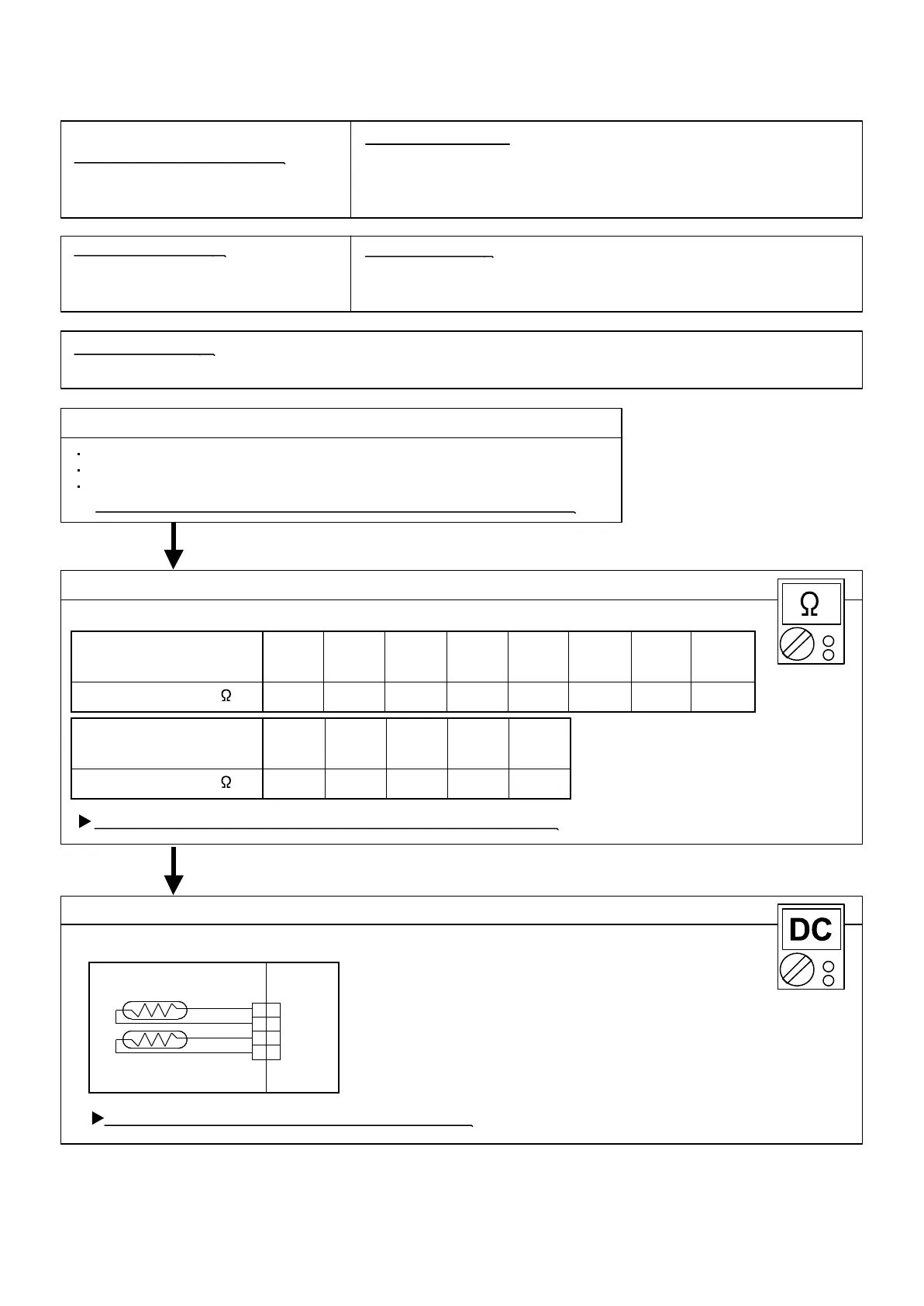

INDOOR UNIT Error Method:
Detective Actuators:
Detective details:
Forecast of Cause :
Check Point 2 :
62.9102.1131.4170.7223.3295.1Resistance Value (k )
Temperature
OKOK
OK
17.125.639.7Resistance Value (k )
Temperature
Indoor unit Heat Ex. middle temp.
sensor error
Indoor unit Controller PCB
Heat Ex. temperature thermistor
When Heat Ex. temperature thermistor open or short-circuit is detected.
1. Connector connection failure 2.Thermistor failure 3. Controller PCB failure
Check Point 1 : Check connection of Connector
Check if connector is removed.
Check erroneous connection.
Check if thermistor cable is open.
>>Upon correcting the removed connector or mis-wiring, reset the power.
Check Point 2 : Remove connector and check Thermistor resistance value
Thermistor Characteristics (Approx. value)
If Thermistor is either open or shorted, replace it and reset the power.
Check Point 3 : Check voltage of Controller PCB (DC5.0V)
Make sure circuit diagram of indoor unit and check terminal voltage at Thermistor (DC5.0V)
If the voltage does not appear, replace Controller PCB.
02-07
20°C10°C5°C0°C-5°C-10°C
50°C
11.6
60°C
10.4
63°C40°C30°C
Indicate or Display:
Refer to error code table.
THERMISTOR
(ROOM TEMP.)
THERMISTOR
(PIPE)
BLACK
CN4
1
2
3
4
1
2
3
4
BLACK
BLACK
BLACK
-20°C
-15°C
526.8
392.1

Fujitsu ASYG09LLCE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Inverter technology	Yes
Refrigerating medium	R410A
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	650 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Heating capacity in watts (nominal) (Average heating season)	3000 W
Airflow	1670 m³/h
Outdoor unit noise level	- dB
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	127 kWh
Hourly energy consumption (cooling)	- kWh
Indoor unit type	Wall-mountable
Indoor unit depth	206 mm
Indoor unit width	820 mm
Indoor unit height	262 mm
Indoor unit weight	7000 g
Indoor unit noise level (high speed)	720 dB
