Fujitsu ASYG09LLCE Service Instruction

03-04

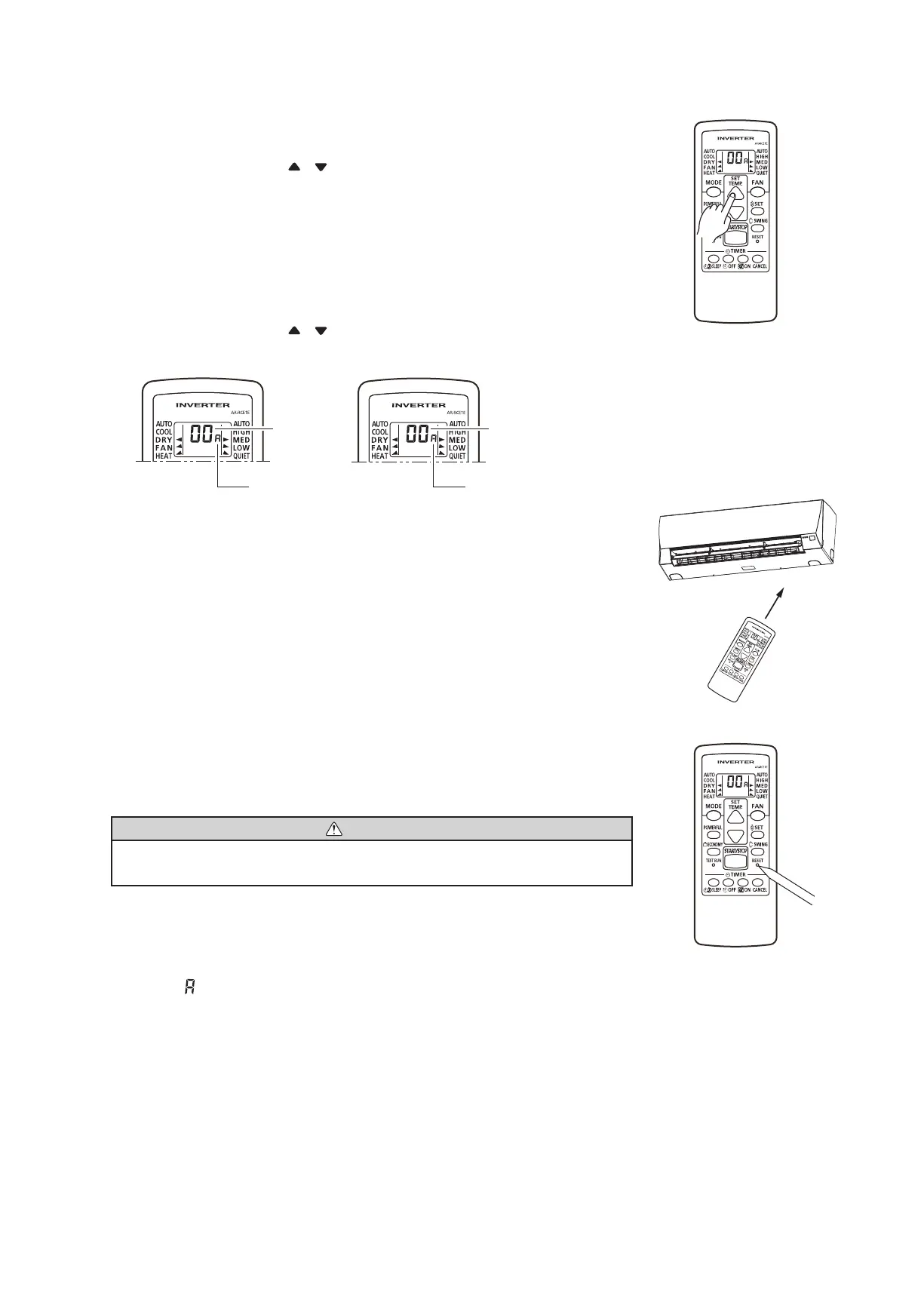

(2) Press the FAN button to proceed to setting the value.
(Press the FAN button again to return to the function number selection.)
STEP 2.
Selecting the Function Number and Setting Value
(5) Press the RESET button to cancel the function setting mode.
(6) After completing the FUNCTION SETTING, be sure to turn off the
power and turn it on again.
CAUTION
After turning off the power, wait 10 seconds or more before turning on it again.
The FUNCTION SETTING doesn't become effective if it doesn't do so.
(3) Press the SET TEMP.( ) ( ) buttons to select the setting value.
(Press the MODE button to switch between the left and right digits.)
Function
Number
(1) Press the SET TEMP.( ) ( ) buttons to select the function number.
(Press the MODE button to switch between the left and right digits.)
(4) Press the SLEEP button, then after you hear the beep emitted from
the indoor unit, press the START/STOP button to confirm the settings.
Setting Value
Note :
*1) Small " " is displayed on the right of the signal code during the FUNCTION SETTING.
*1 *1

Fujitsu ASYG09LLCE Specifications

General

Type	Air conditioner indoor unit
Multi-split	-
Product color	White
Inverter technology	Yes
Refrigerating medium	R410A
Air conditioner functions	Cooling, Dehumidifying, Heating
Refrigerating medium weight	650 g
Cooling capacity in watts (nominal)	- W
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C
Heating capacity in watts (nominal) (Average heating season)	3000 W
Airflow	1670 m³/h
Outdoor unit noise level	- dB
AC input voltage	230 V
AC input frequency	50 Hz
Design load (cooling)	- kW
Annual energy consumption (cooling)	127 kWh
Hourly energy consumption (cooling)	- kWh
Indoor unit type	Wall-mountable
Indoor unit depth	206 mm
Indoor unit width	820 mm
Indoor unit height	262 mm
Indoor unit weight	7000 g
Indoor unit noise level (high speed)	720 dB
