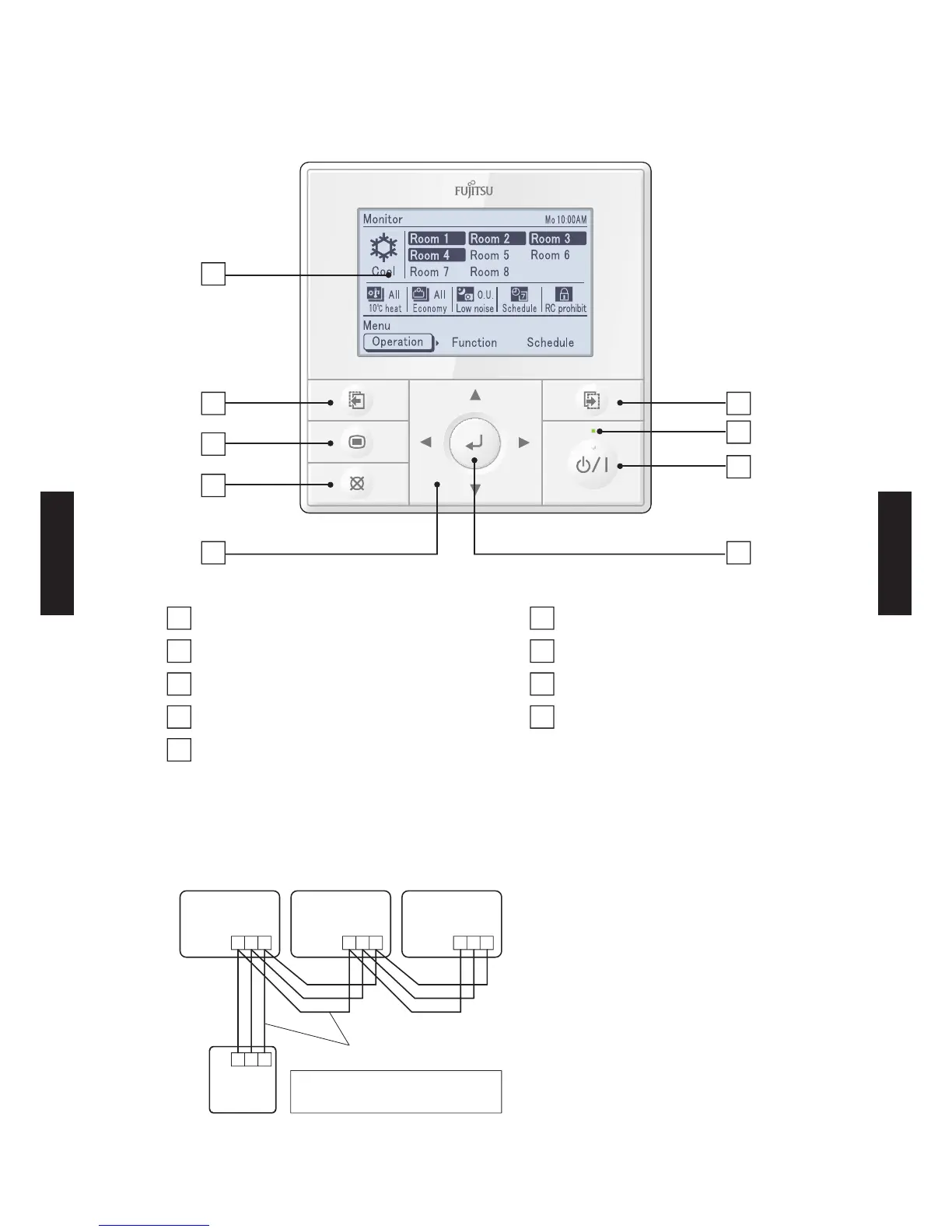

5. CONTROL SYSTEM
FUNCTIONS

1
2 6
8
7
3
4
5 9
1
Display panel (with backlight)
2
Screen switch button (Left)
3
Menu button
4
Cancel button
5
Cursor button
6
Screen switch button (Right)
7
Power indicator
8
On / Off button
9
Enter button
ELECTRICAL WIRING

Example: Wiring diagram when 3 units of branch boxes are connected
123
123 123 123
Branch box
(Primary)
REMOTE
CONTROL
Branch box
(Secondary 1)
REMOTE
CONTROL
Branch box
(Secondary 2)
REMOTE
CONTROL
Central remote controller
Remote controller cable
 Total remote controller cable length:
MAX. 500 m
- (05 - 09) -
CONTROL
SYSTEM
CONTROL
SYSTEM
To Next Page
