2. MODEL SELECTION
Fig 3

Indoor unit
connecting
capacity (%)
Outdoor
temperature
Indoor temperature
DB WB
16.0°C DB 18.0°C DB 20.0°C DB 24.0°C DB
°C °C
TC IP TC IP TC IP TC IP

         
         
100
-15.0 -16.0 10.5 5.55 10.0 5.52 9.6 5.50 9.2 5.48
-10.0 -11.0 12.8 5.60 12.2 5.61 11.8 5.62 11.3 5.64
-5.0 -7.0 14.4 5.70 13.8 5.78 13.3 5.75 12.9 5.72
0.0 -2.0 15.7 5.76 15.1 5.78 14.5 5.74 13.8 5.68
5.0 3.0 17.0 5.76 16.2 5.61 15.0 5.23 14.0 4.92
7.0 6.0 18.5 5.70 17.4 5.35 16.0 5.07 14.5 4.55
10.0 8.0 18.6 5.56 17. 5 5.25 16.2 4.80 14.7 4.53
15.0 10.0 18.8 5.19 17.6 4.80 16.4 4.61 15.0 4.33
20.0 15.0 19.0 4.63 17.8 4.45 16.7 4.36 15.4 4.08
(a)
(c)(c')

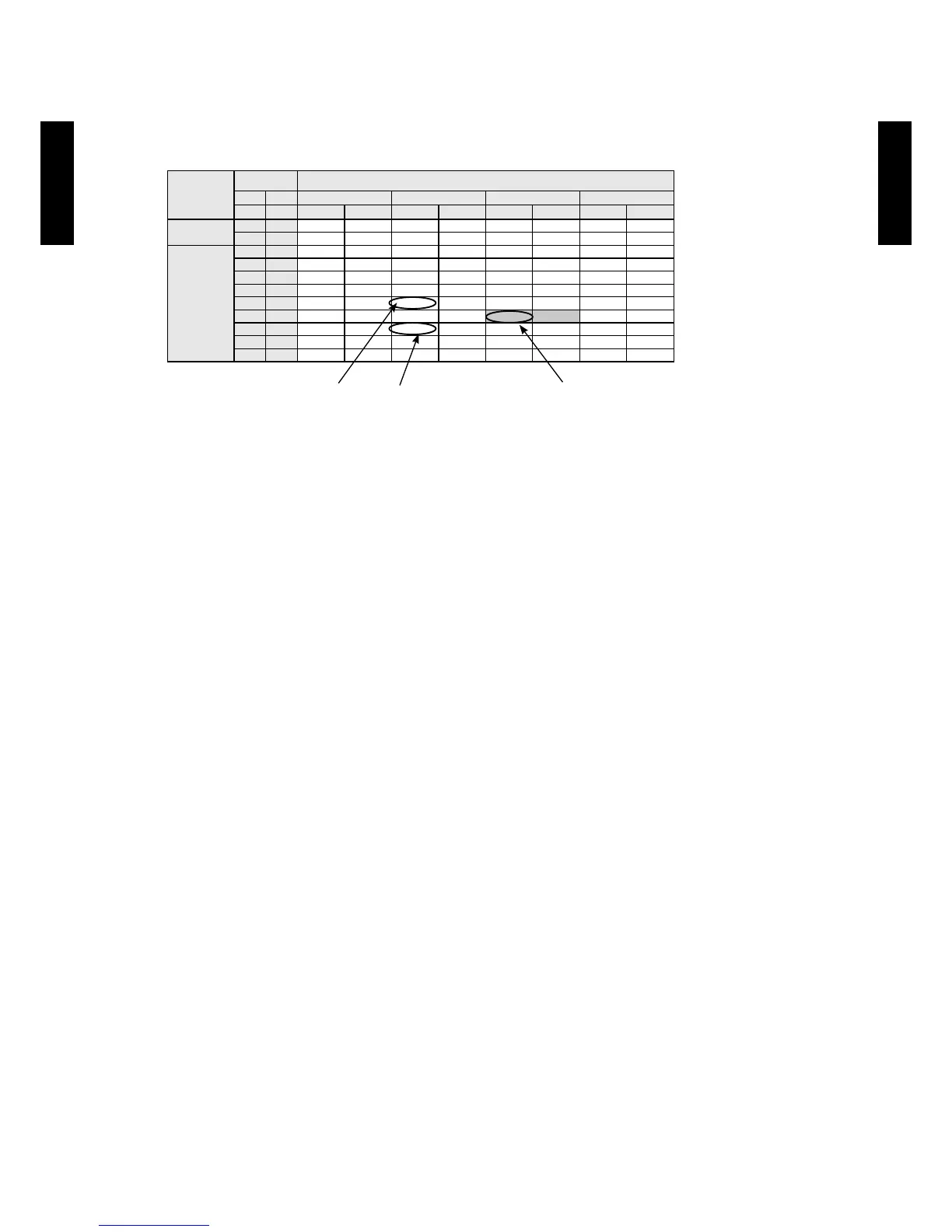

B-3: Capacity change rate by temperature conditions
(c) / (a) = 17.5 / 16.0 = 1.094 (Example 3)
(c’) / (a) = 16.2 / 16.0 = 1.013 (Example 4)
