Fujitsu ASYG09LZCA - Multiple Outdoor Unit Installation Clearances

- 41 -
WALL MOUNTED AOYG09-14LZCAN

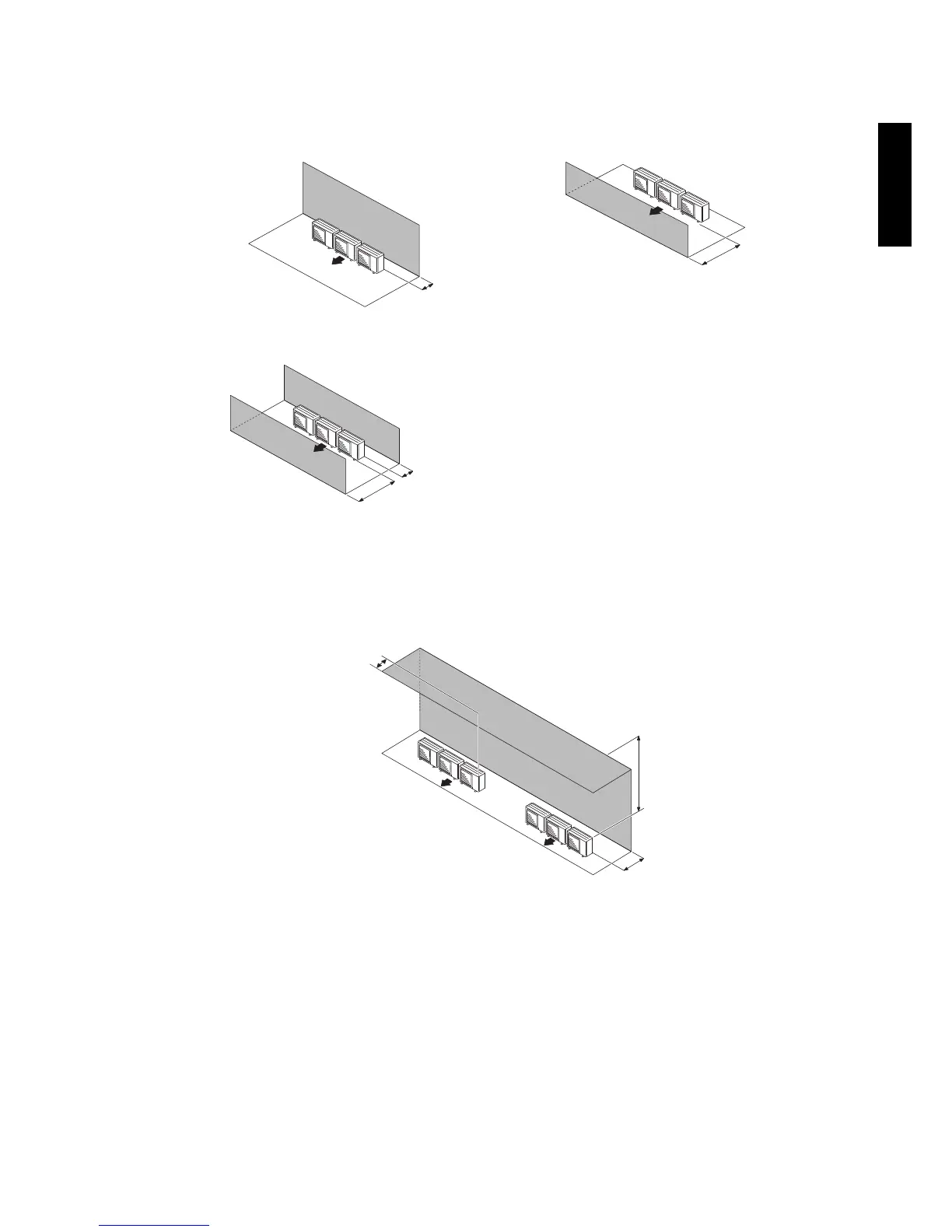

 Multiple outdoor unit installation
• When the upper space is open:
• When there is an obstruction in the upper space:
Unit: mm
When there are obstacles at the rear only. When there are obstacles at the front only.
When there are obstacles at the front and rear.
Unit: mm
When there are obstacles at the rear and above.
200
or more
1,000 or more
200 or more
1,000 or more
1,500 or more
200 or more
Max. 300
