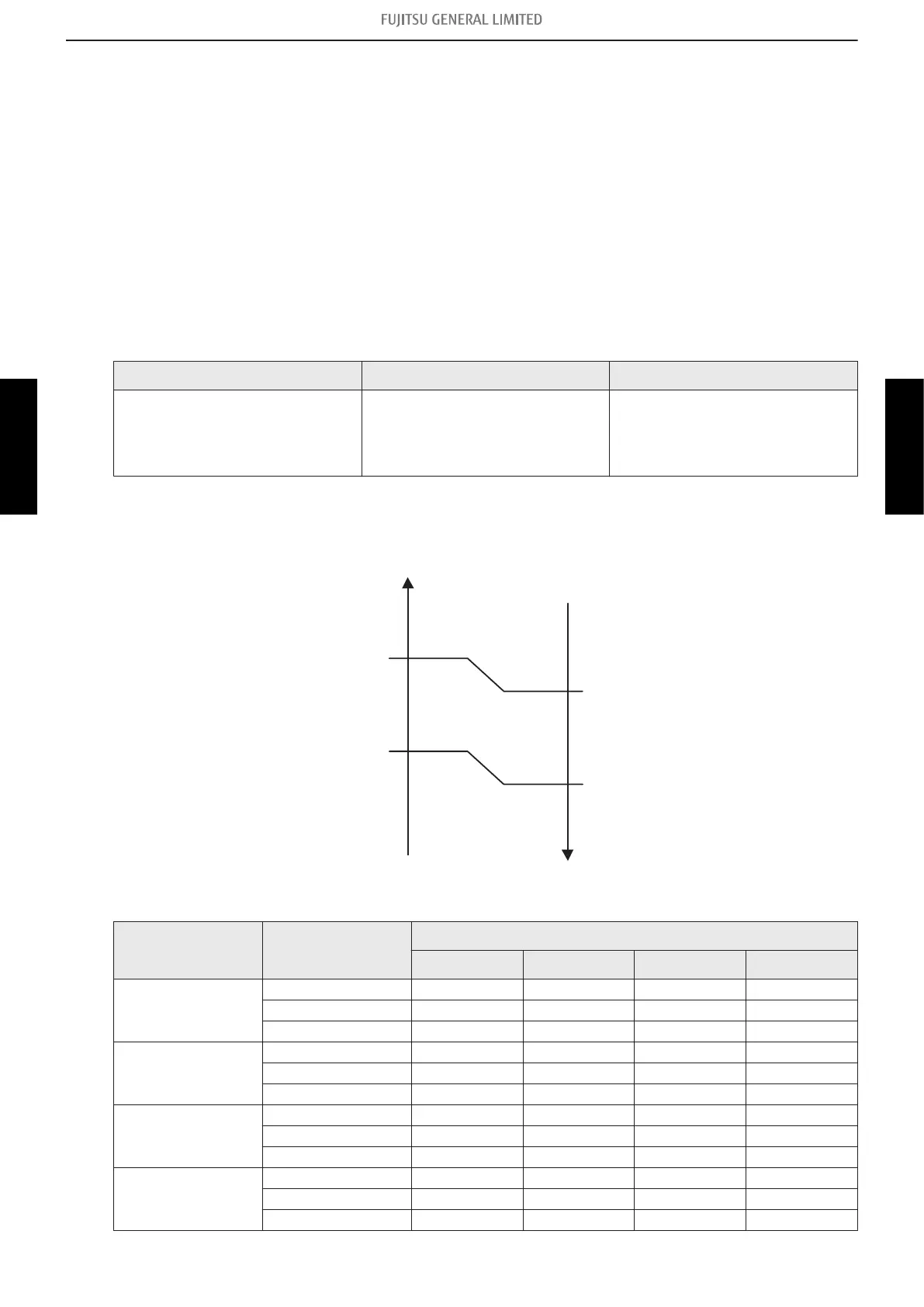

1-2. Heating operation
A sensor (room temperature thermistor) built in indoor unit body will usually perceive difference or
variation between setting temperature and present room temperature, and controls operation rota-
tion number of compressor.
• If the room temperature is 6.0 °C lower than a set temperature, the operation rotation number of
compressor will attain to maximum performance.
• If the room temperature is 1.0 °C higher than a set temperature, the compressor will be stopped.
• →hen the room temperature is within the range of +1.0 °C to -6.0°C of the setting temperature, the
rotation number of compressor is controlled within the range shown below.
• Rotation number range of compressor
Unit: rps
Model name Minimum frequency Maximum frequency
AS↔G07KGTE
AS↔G09KGTE
AS↔G12KGTE
AS↔G14KGTE
12 110
• Limit of maximum speed based on outdoor temperature
In heating operation, maximum rotation number is defined by outdoor temperature and fan mode.
A zone
12°C
B zone
14°C
C zone
-10°C
-12°C
Outdoor
temperature rises
Outdoor
temperature drops
Unit: rps
Model name
Outdoor
temperature zone
Indoor unit fan mode
HIGH MED LOW QUIET
AS↔G07KGTE
A zone 110 110 77 67
B zone 96 96 72 62
C zone 77 77 62 40
AS↔G09KGTE
A zone 110 110 77 67
B zone 103 103 72 62
C zone 83 83 62 40
AS↔G12KGTE
A zone 110 110 77 67
B zone 110 110 72 62
C zone 89 89 62 40
AS↔G14KGTE
A zone 110 110 89 72
B zone 110 110 83 67
C zone 89 89 72 36
1-2. Heating operation - (04-3) - 1. Rotation number control of compressor
