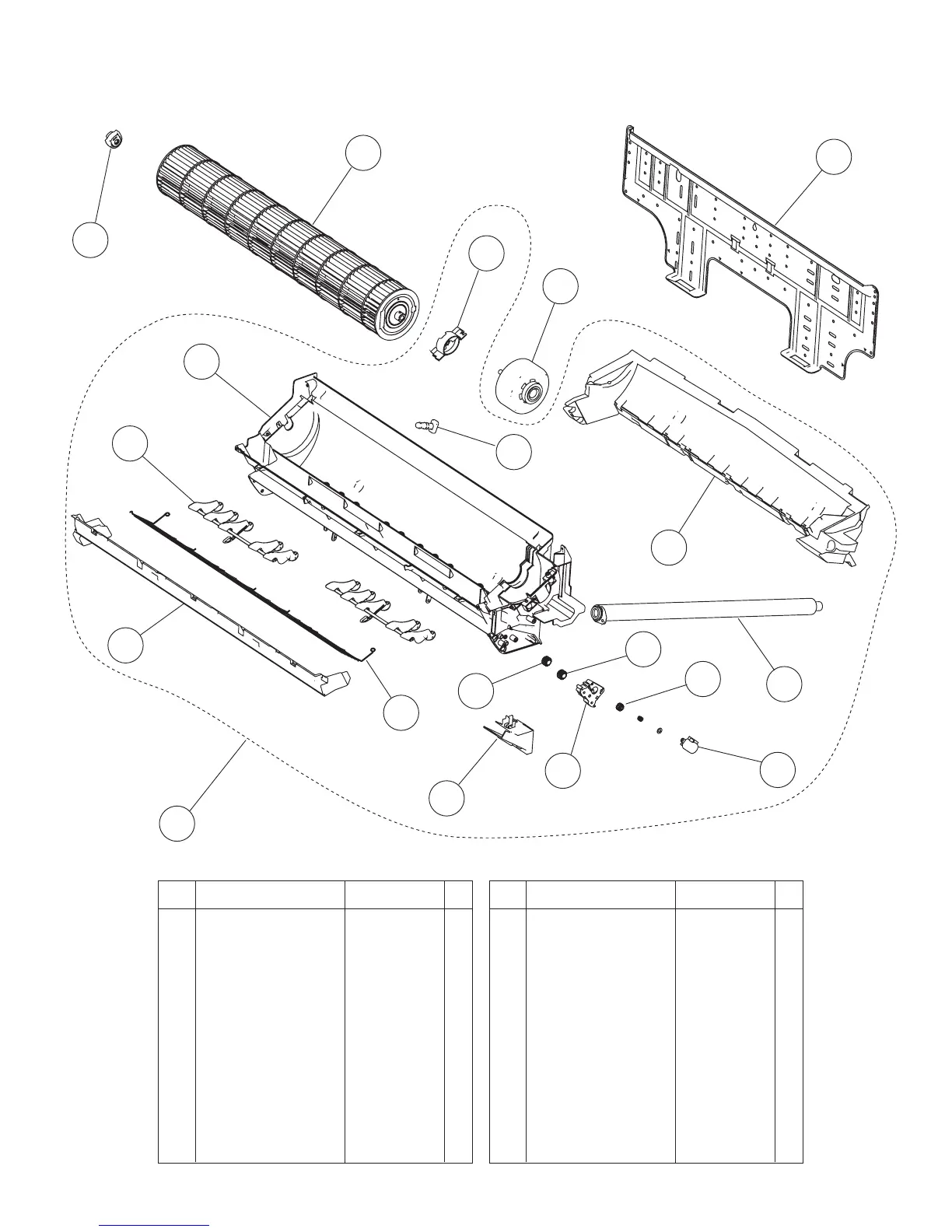

Fujitsu ASYG12LECA - Casing Assy

27
29
29
28
30
31
34
21
37
24
32
25
22
26
38
35
23
33
36
INDOOR UNIT
Casing assy
14
34 Fan Guard 9317182003
35 Fan Motor 9603100001
36 Crossflow Fan Assy 9316830004
37 Shaft Holder C 9306628017
38 Bracket Panel 9316590007
30 Gear A 9309994003
31 Motor Step 9900139193
32 Drain Hose Assy 9316904002
33 Drain Cap 9316177017
Ref. Description Part number
24 Cable Guide 9316567009
25 Casing Cover B 9316569003
26 Casing Cover F 9316570009
27 R and L Louver B 9316961005
21 Casing Assy 9316892095
22 Casing 9316563001
23 Motor Cover 9316568006
28 Louver Gear Holder 9316575004
29 Louver Gear 9316574007
Ref. Description Part number
2011.01.24
