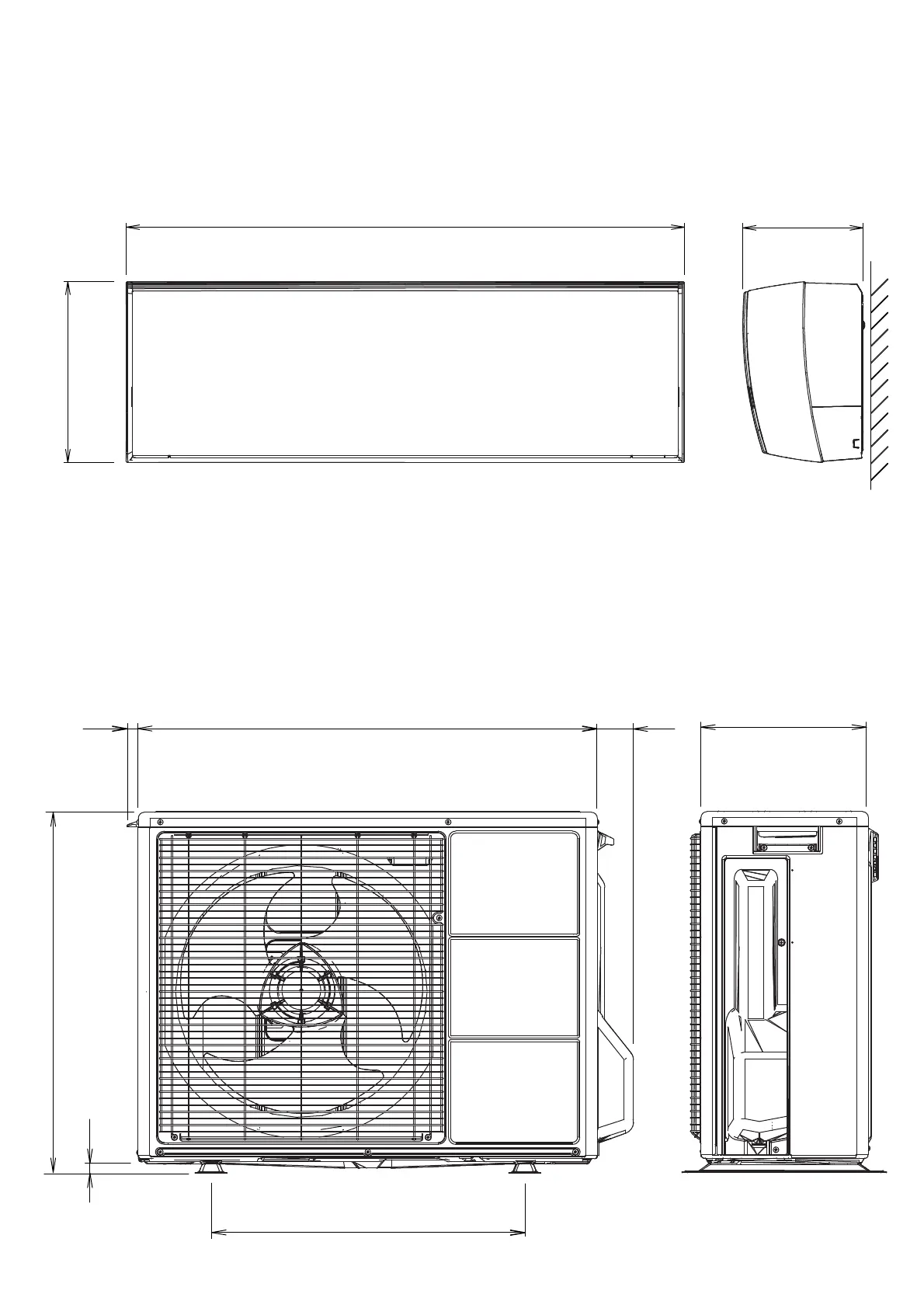

DIMENSIONS
unit : mm
282
185
870
2011.04.25 2
INDOOR UNIT
OUTDOOR UNIT
Drain pipe diameter
16.2 mm
Liquid pipe diameter : 6.35 mm
Gas pipe diameter : 9.52 mm
20
290
790
20
540
620
62
