Fujitsu ASYG12LTCA User Manual

1
1
2
3
10
11
14
13
12
5
7
6
8
9
4

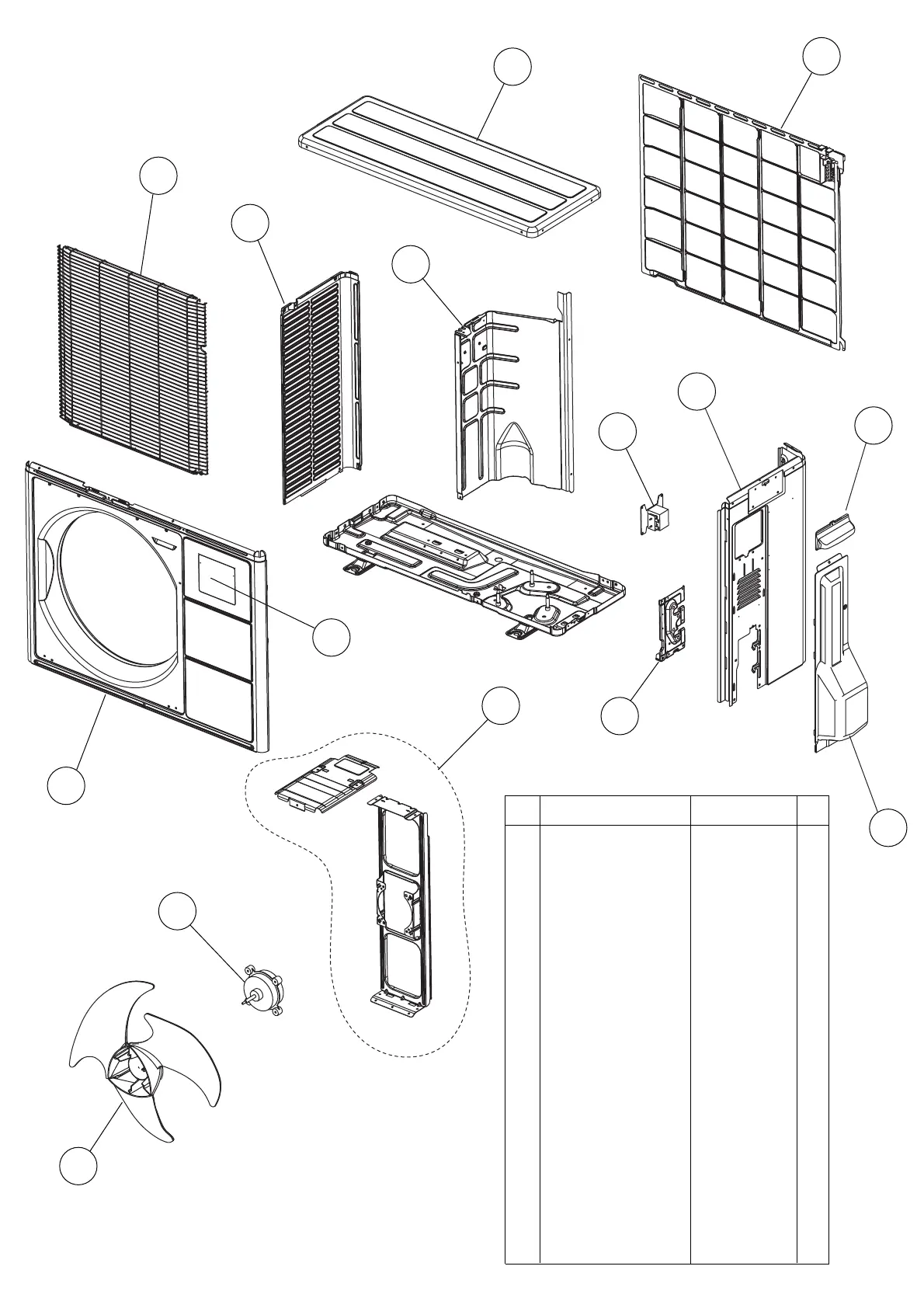

OUTDOOR UNIT
PARTS
2011.04.12 17
4 Top Panel Assy 9318464023
1 Front Panel Assy 9318463026
5 Protective Net 9331640015
3
7
Cabinet Left Assy 9318461008
2 Emblem 9319151007
Switch Cover Assy 9318246001
6 Grip 9317588003
9 Valve Bracket 9331649001
8 Cabinet Right Assy 9318462012
12 Motor Bracket Assy 9316041011
14 Propeller Fan 9313808013
11 Reactor Assy 9900641016
10 Separator Assy 9331722018
-- Drain Pipe 9303029022
13 Fan Motor 9602724017
Ref. Description Part number

Fujitsu ASYG12LTCA Specifications

General

Brand	Fujitsu
Model	ASYG12LTCA
Category	Air Conditioner
Language	English
