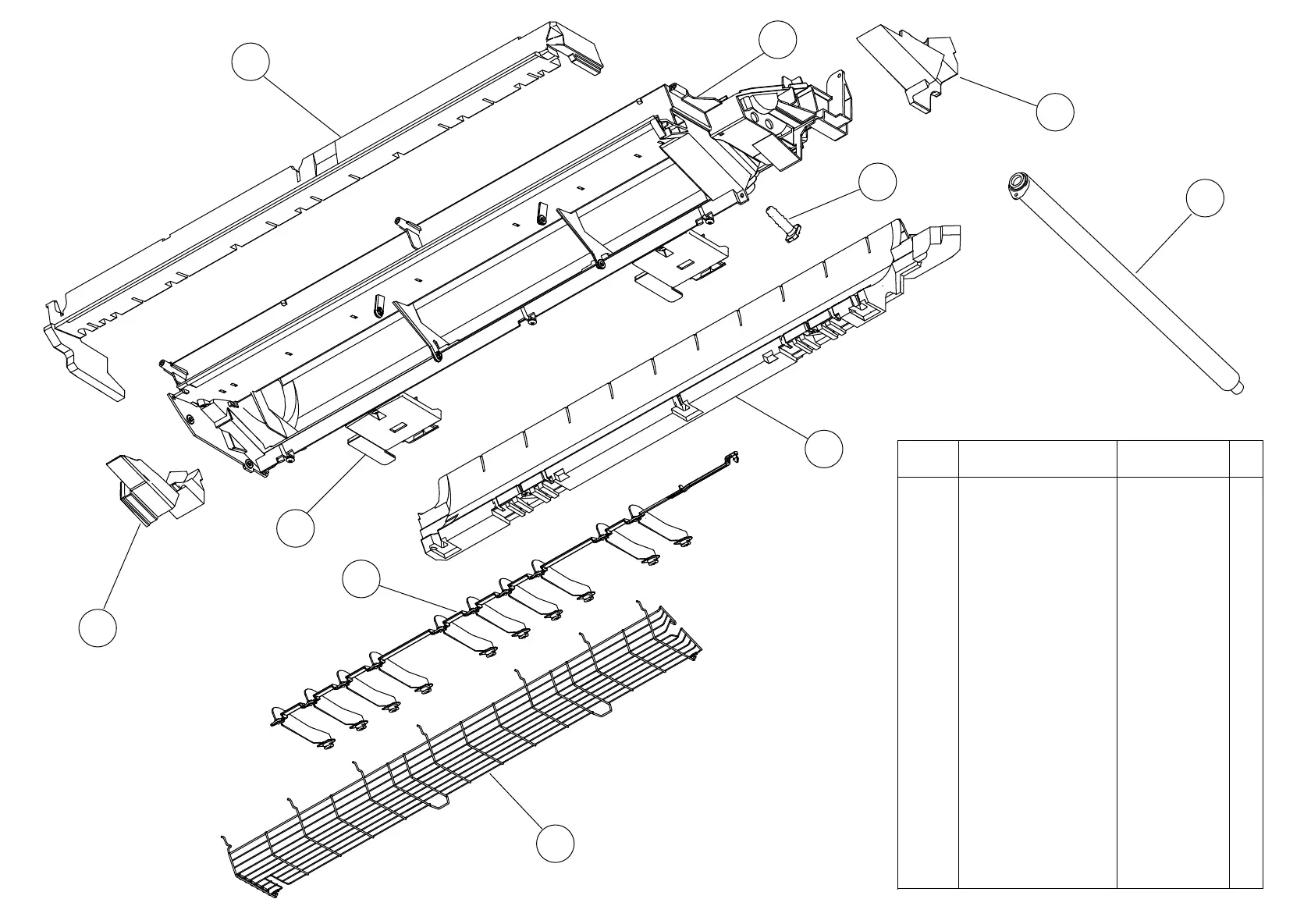

INDOOR UNIT
ASYG09LZCA
ASYG12LZCA
Casing assy
15
Fan Guard 9320458003
69
70
66
Drain Hose Assy 9316904019
Pipe Bracket 931874302968
Drain Cap 9316177017
61
Casing Cover B 9318862003
64
Casing Cover F 9382222000
Casing Cover L 9318830002
Casing Cover R 931883100965
R and L Louver Assy
9319229027
Casing 9318840025
67
62
63
Ref. Description Part number
2016.06.15
