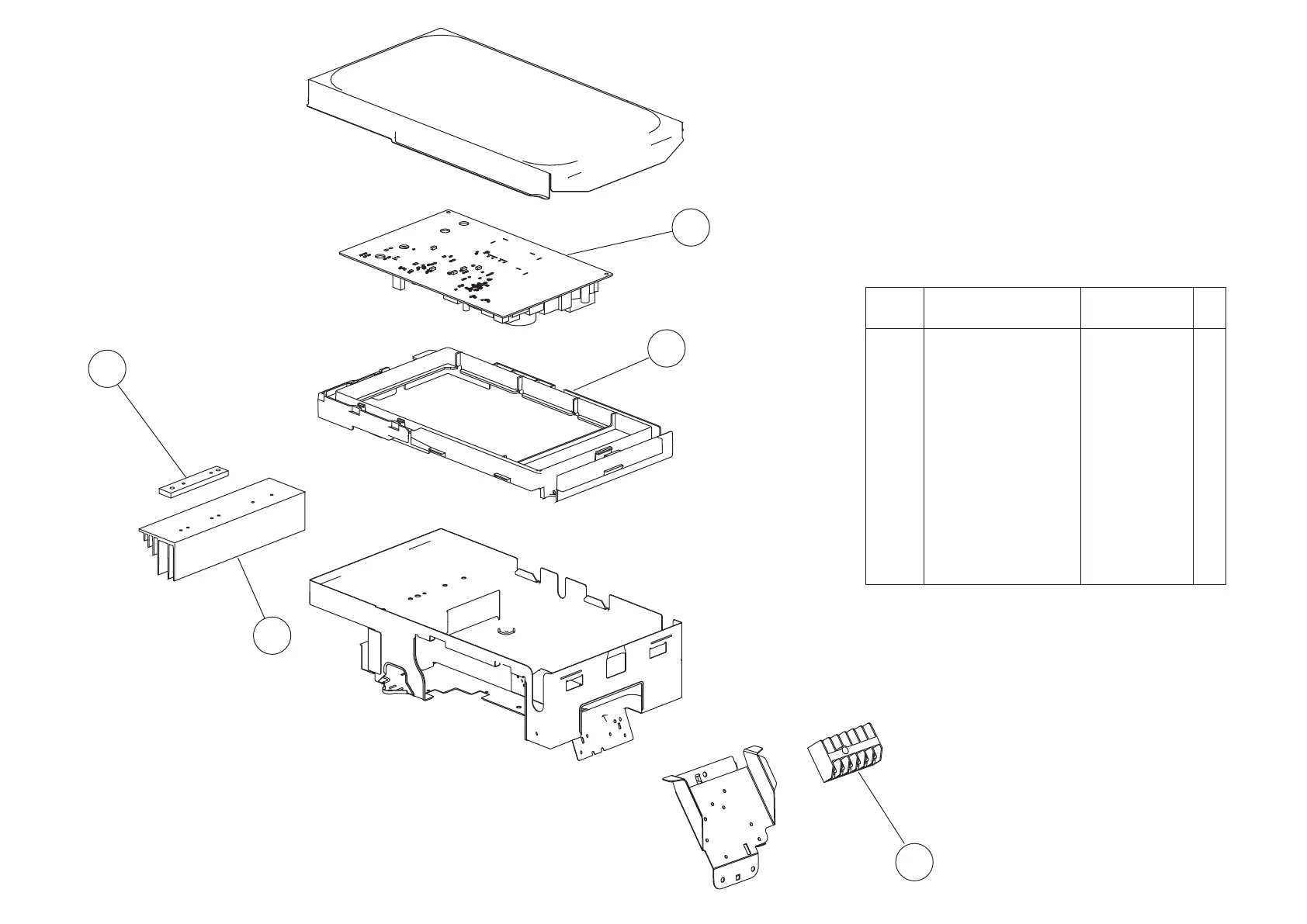

OUTDOOR UNIT
AOYG09LZCAN
AOYG12LZCAN
2016.06.23 18
24 Heatsink B
Terminal Bracket
9314090011
25 Terminal 9900435028
23 9314410017
Main PCB (09) (SV)
Sealed Panel
Heatsink A
Inverter Case Assy
22 9709681329
Main PCB (12) (SV)22 9709681336
21 PCB Holder 9313074029
Ref. Description Part number
21
24
22
23
25
