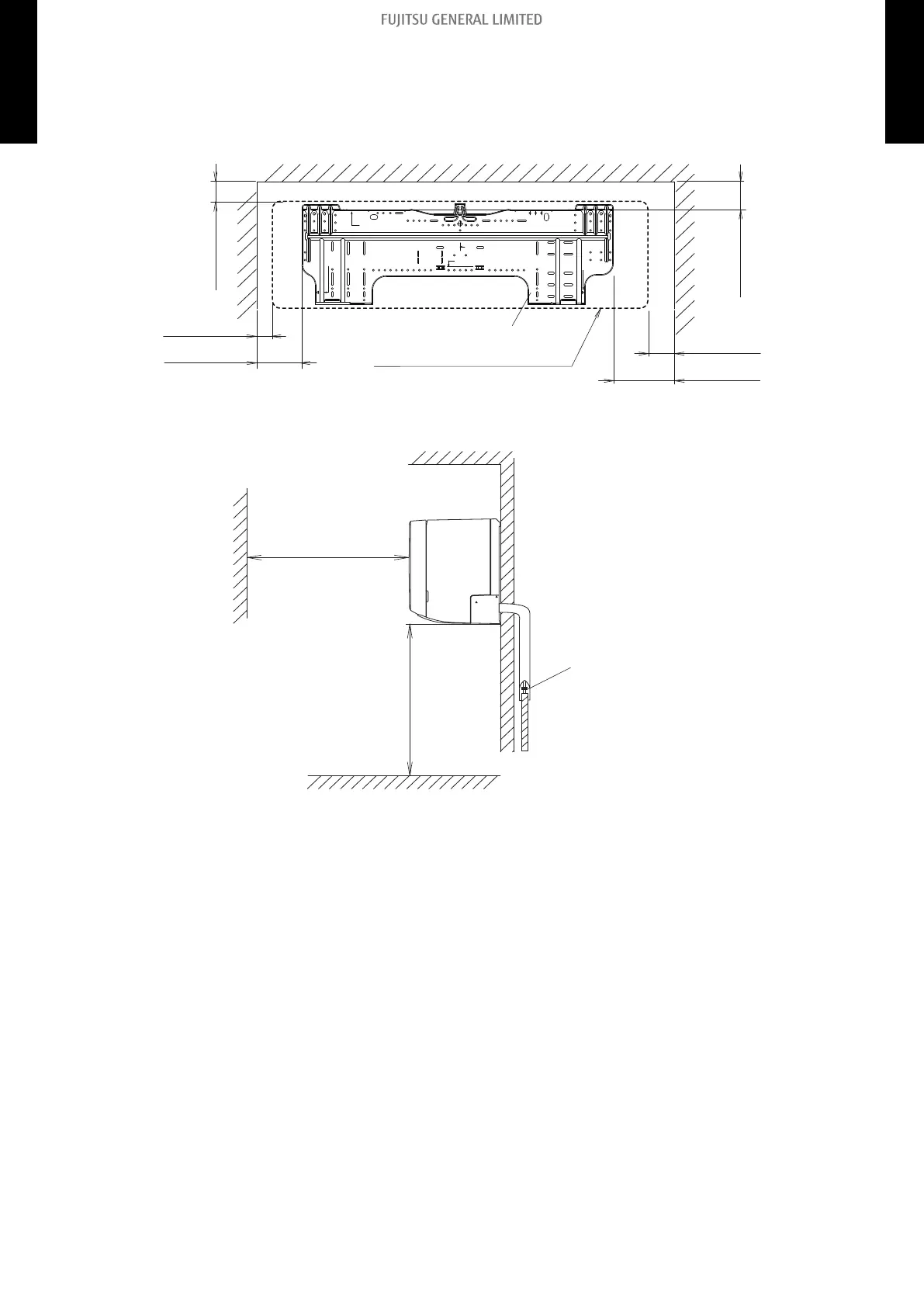

Installation space requirement
Provide sufficient installation space for product safety.
Unit: mm
1,500 or more
1,800 or more
The flare connection
part should be installed
outdoors.
50 or more
40 or more
117 or more
71 or more
70 or more
160 or more
Wall hook bracket
Outline of the indoor unit
