- 51 -
OUTDOOR UNIT
AOYG30, 36LMTA

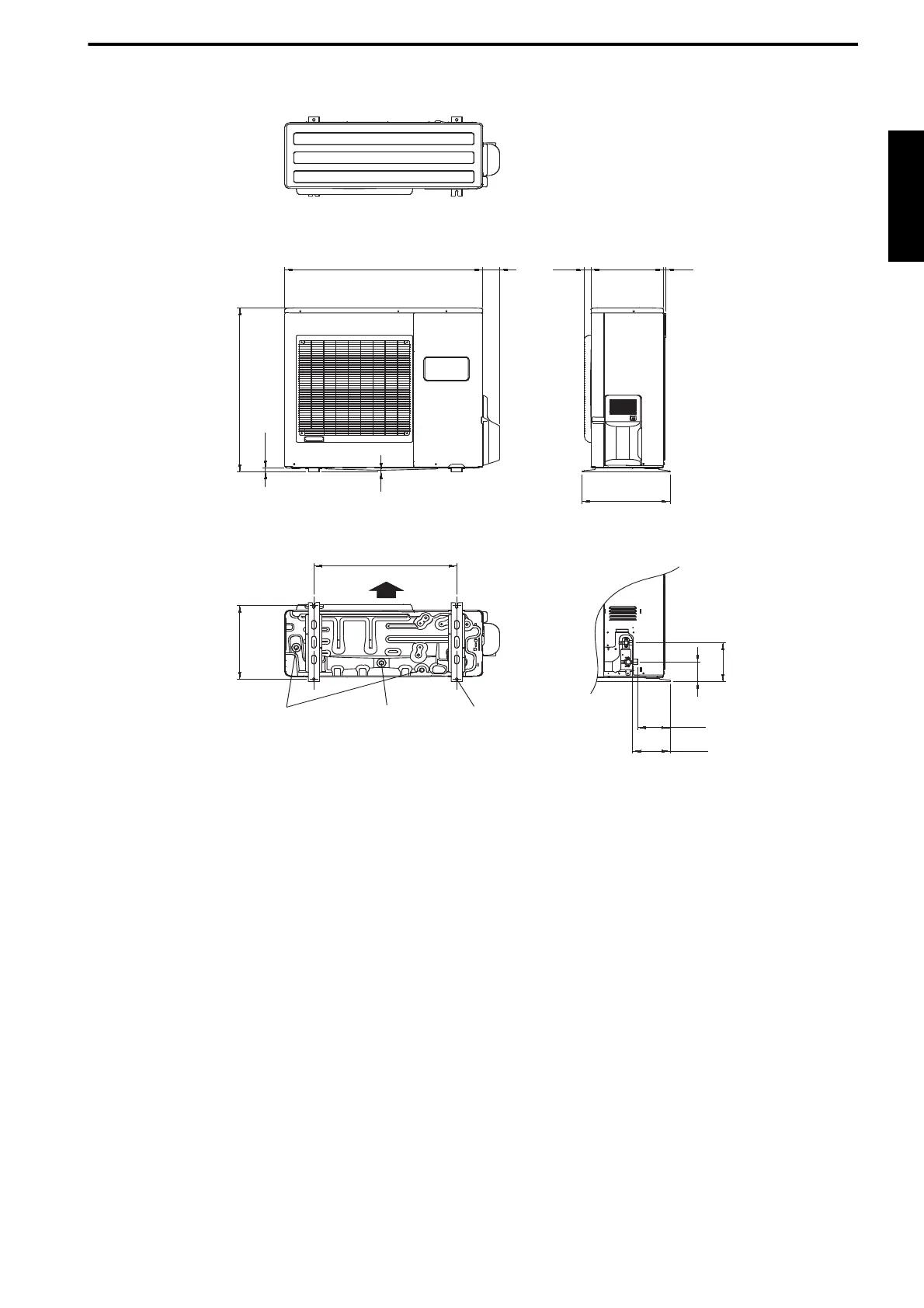

2. Dimensions
900
650
830
370
99
196
21
9
77
31 330
400
170
147
12
Top view
Front view Side view
Bottom view
Airflow
4-Ø12 mm hole
Drain cap
mounting places
Drain pipe
mounting place
Unit: mm
