Fujitsu ASYG36LMTA User Manual

- 57 -
OUTDOOR UNIT AOYG30, 36LMTA

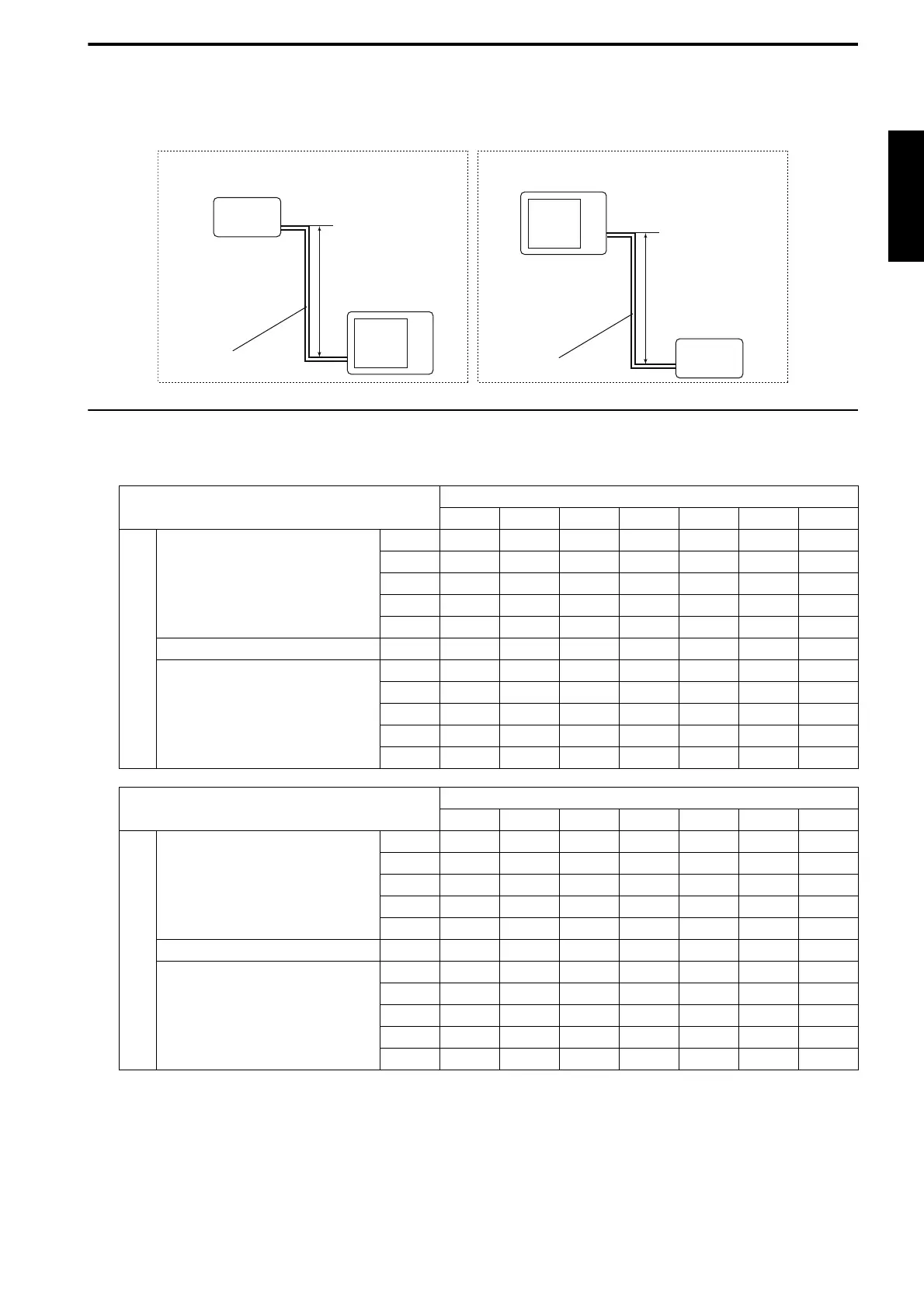

5. Capacity compensation rate for pipe length and height
difference
5-1. Models: AOYG30LMTA and AOYG36LMTA
NOTE: Values mentioned in the table are calculated based on the maximum capacity.
COOLING
Pipe length (m)
5 7.5 10 20 30 40 50
Height difference H (m)
Indoor unit is higher than
outdoor unit *1
30 - - - - 0.932 0.929 0.924
20 - - - 0.945 0.947 0.945 0.940
10 - - 0.984 0.961 0.963 0.960 0.956
7.5 - 0.988 0.988 0.965 0.967 0.964 0.959
5 0.992 0.992 0.992 0.968 0.971 0.968 0.963
0 1.000 1.000 1.000 0.976 0.979 0.976 0.971
Indoor unit is lower than
outdoor unit *2
-5 1.000 1.000 1.000 0.976 0.979 0.976 0.971
-7.5 - 1.000 1.000 0.976 0.979 0.976 0.971
-10 - - 1.000 0.976 0.979 0.976 0.971
-20 - - - 0.976 0.979 0.976 0.971
-30 - - - - 0.979 0.976 0.971
HEATING
Pipe length (m)
5 7.5 10 20 30 40 50
Height difference H (m)
Indoor unit is higher than
outdoor unit *1
30 - - - - 0.816 0.756 0.686
20 - - - 0.872 0.816 0.756 0.686
10 - - 0.991 0.872 0.816 0.756 0.686
7.5 - 1.000 0.991 0.872 0.816 0.756 0.686
5 1.000 1.000 0.991 0.872 0.816 0.756 0.686
0 1.000 1.000 0.991 0.872 0.816 0.756 0.686
Indoor unit is lower than
outdoor unit *2
-5 0.995 0.995 0.986 0.868 0.812 0.752 0.683
-7.5 - 0.993 0.983 0.866 0.810 0.750 0.681
-10 - - 0.981 0.864 0.808 0.748 0.679
-20 - - - 0.855 0.799 0.740 0.672
-30 - - - - 0.791 0.733 0.665
Height difference H
Indoor unit is higher than outdoor unit
*
1
Indoor unit is lower than outdoor unit *
2
Indoor unit
Indoor unit
Connection pipe
Outdoor unit
Outdoor unit
Connection pipe
HH
