CASSETTE TYPE AUU42R
CASSETTE TYPE AUU42R
- (04 - 07) -
MODEL : AUU42R

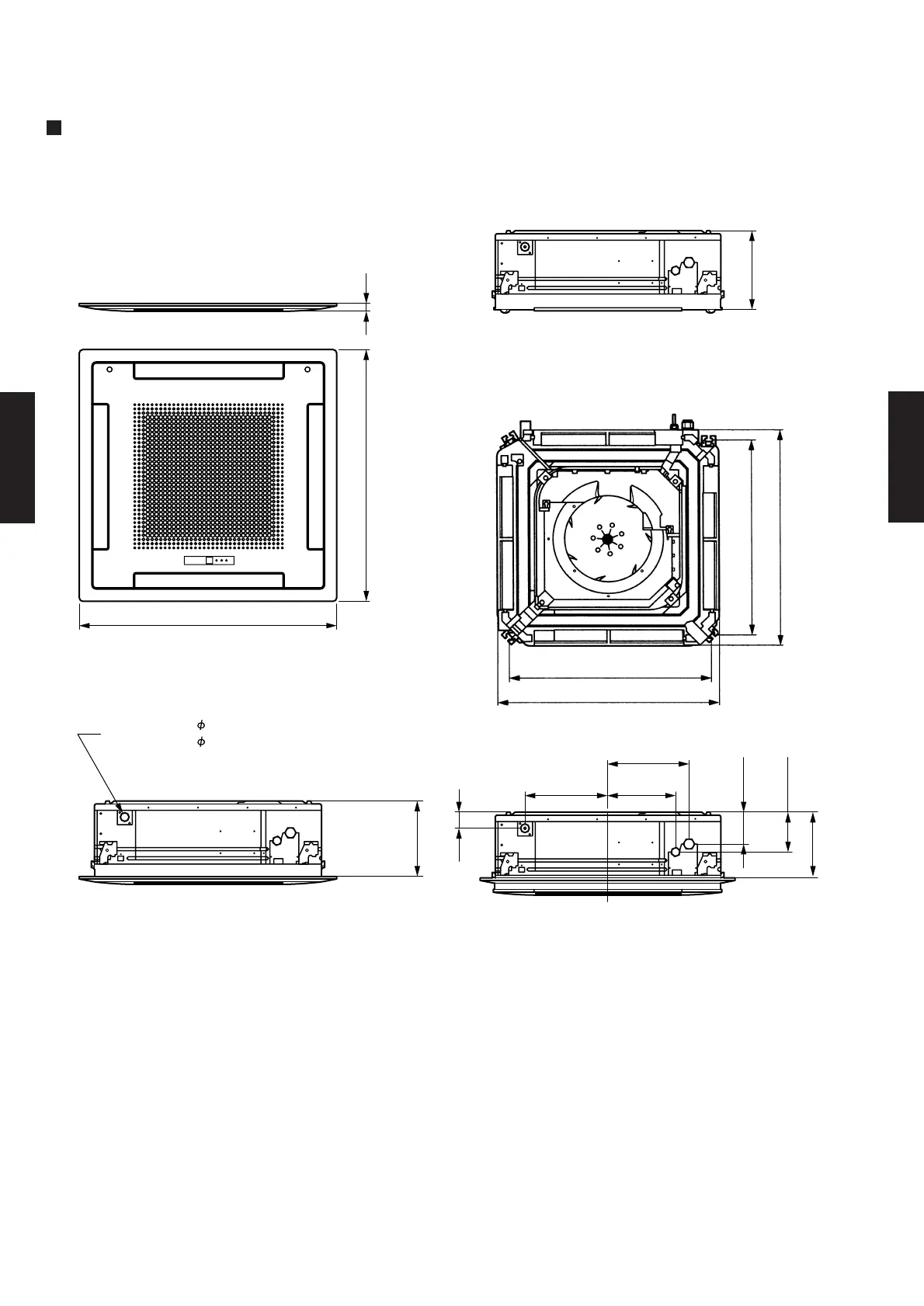

4-4-2. INDOOR UNIT
29-17/32 (750)
32-11/16 (830)
29-17/32 (750)
32-11/16 (830)
Bottom view
Unit : in.(mm)
Side view (Slender setting)
Side view
11-21/32
(296)
37 (940)
1-3/16 (30)
2-3/8 (60)
11-7/32
(285)
4-23/32 (120)
5-29/32 (150)
(Small pipe)
(Drain pipe)
(Large pipe)
9-27/32
(250)
37 (940)
12-1/32
(305.5)
11-3/4 (298.5)
9-25/32
(248.5)
Drain Inside Dia. 32mm
Dia. 37mmOutside
Bottom view (Panel)
Side view (Standard setting)

Fujitsu AUU42R Specifications

General

Brand	Fujitsu
Model	AUU42R
Category	Air Conditioner
Language	English
