Fujitsu AUU9RLF

402011.01.12
OUTDOOR UNIT
45
50
49
48
47
46
44
43
42
41

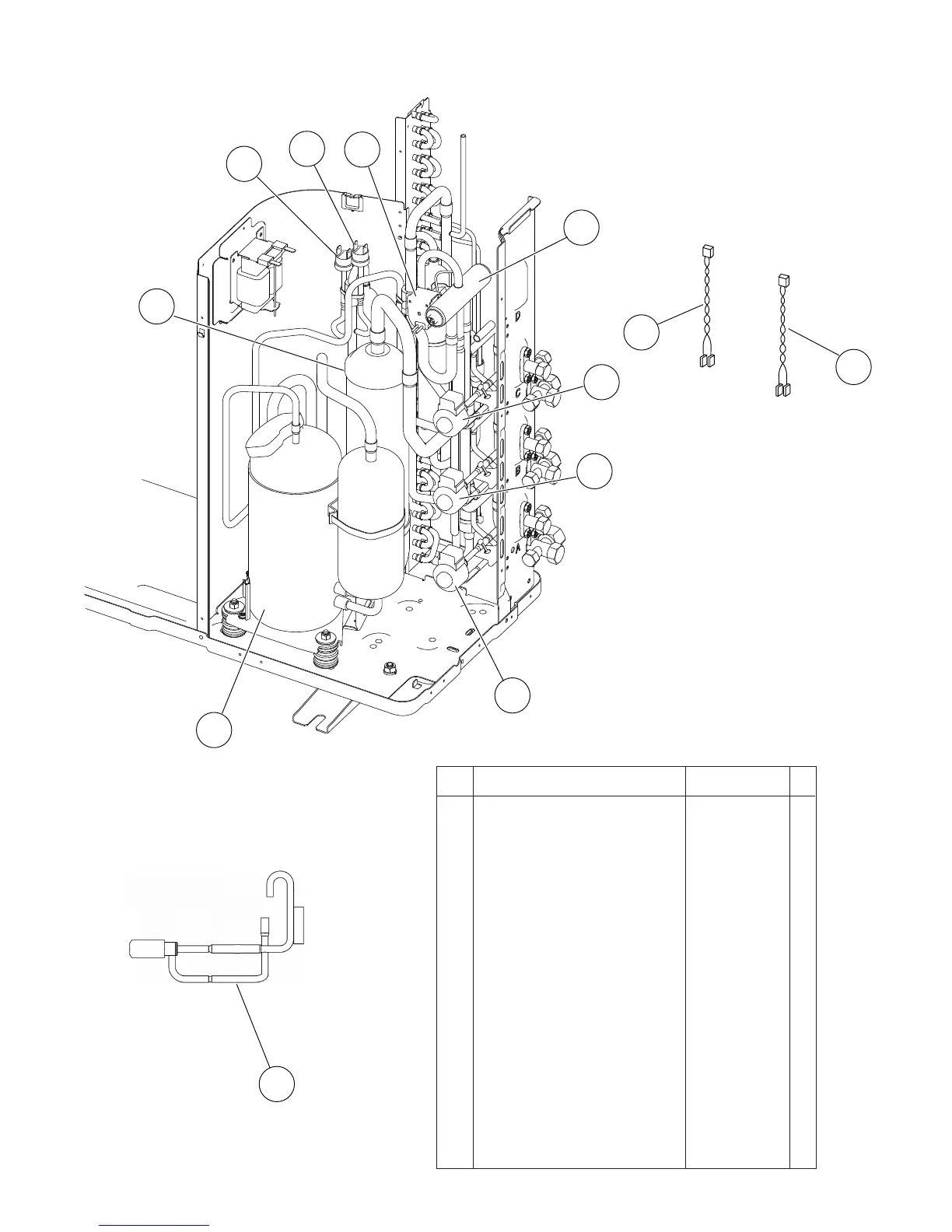

45 Compressor Sub Assy
47 4-way Valve Assy
49 Pressure Switch A
50 Pressure Switch B
46 Accumulator Assy
41 Expansion Valve Assy
42 Expansion Valve Coil (A=Red)
43 Expansion Valve Coil (B=White)
44 Expansion Valve Coil (C=Green)
9374423187
9374425136
9900186012
9900341015
9375250027
9370947151
9970101069
9970101038
9970101045
Ref. Description Part number
48 Solenoid 9900165079
Connector : RED
WHITE
51
52
51 Wire (Pressure Sw) (Red)
52 Wire (Pressure Sw) (White)
9377823014
9377823021
