Fujitsu AUXG07KVLA Design & Technical Manual



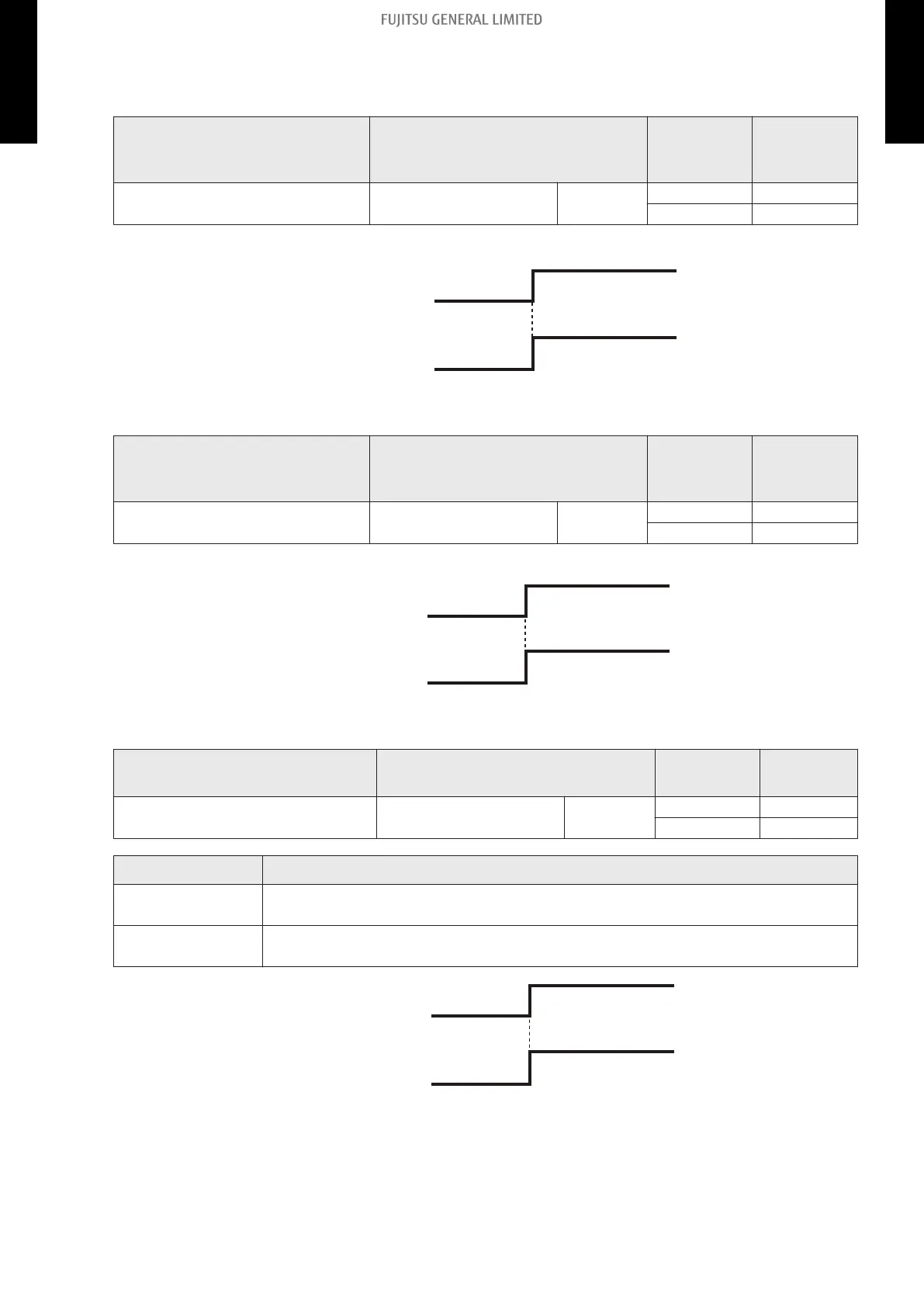

Control output function
• Operation/Stop status
Function
setting /
Rotary SW on
External input and
output PCB
External output
Output
signal
Command
60-00 / 1
External input and output
PCB
CN310
Off → On Operation
On → Off Stop
The output is low when the unit is stopped.
Operation
Stop
On
Off
CN310
Indoor unit
• Error status
Function
setting /
Rotary SW on
External input and
output PCB
External output
Output
signal
Command
60-00 / 1
External input and output
PCB
CN311
Off → On Error
On → Off Normal
The output is ON when an error is generated for the indoor unit.
Error
Normal
On
Off
CN311―312
Indoor unit
• Indoor unit fan operation status
Function
setting /
Rotary SW on External
input and output PCB
External output
Output
signal
Command
60-00 / 1
External input and output
PCB
CN312
Off → On Fan run
On → Off Fan stop
Output signal Condition
On
The indoor unit fan is operating.
Low → High
Off The fan is stopped or during cold air prevention.
High → Low During thermostat off when in dry mode operation.
Fan run
Fan stop
On
Off
CN311―312
Indoor unit
- 114 -
11-2. Wall mounted type (Models: ASYG07KGTB, ASYG09KGTB, ASYG12KGTB,
ASYG14KGTB, ASYG07KETA, ASYG09KETA, ASYG12KETA, ASYG14KETA,
ASYG07KETA-B, ASYG09KETA-B, ASYG12KETA-B, and ASYG14KETA-B)
11. External input and output
2-UNIT MULTI-SPLIT TYPE 2-UNIT MULTI-SPLIT TYPE
