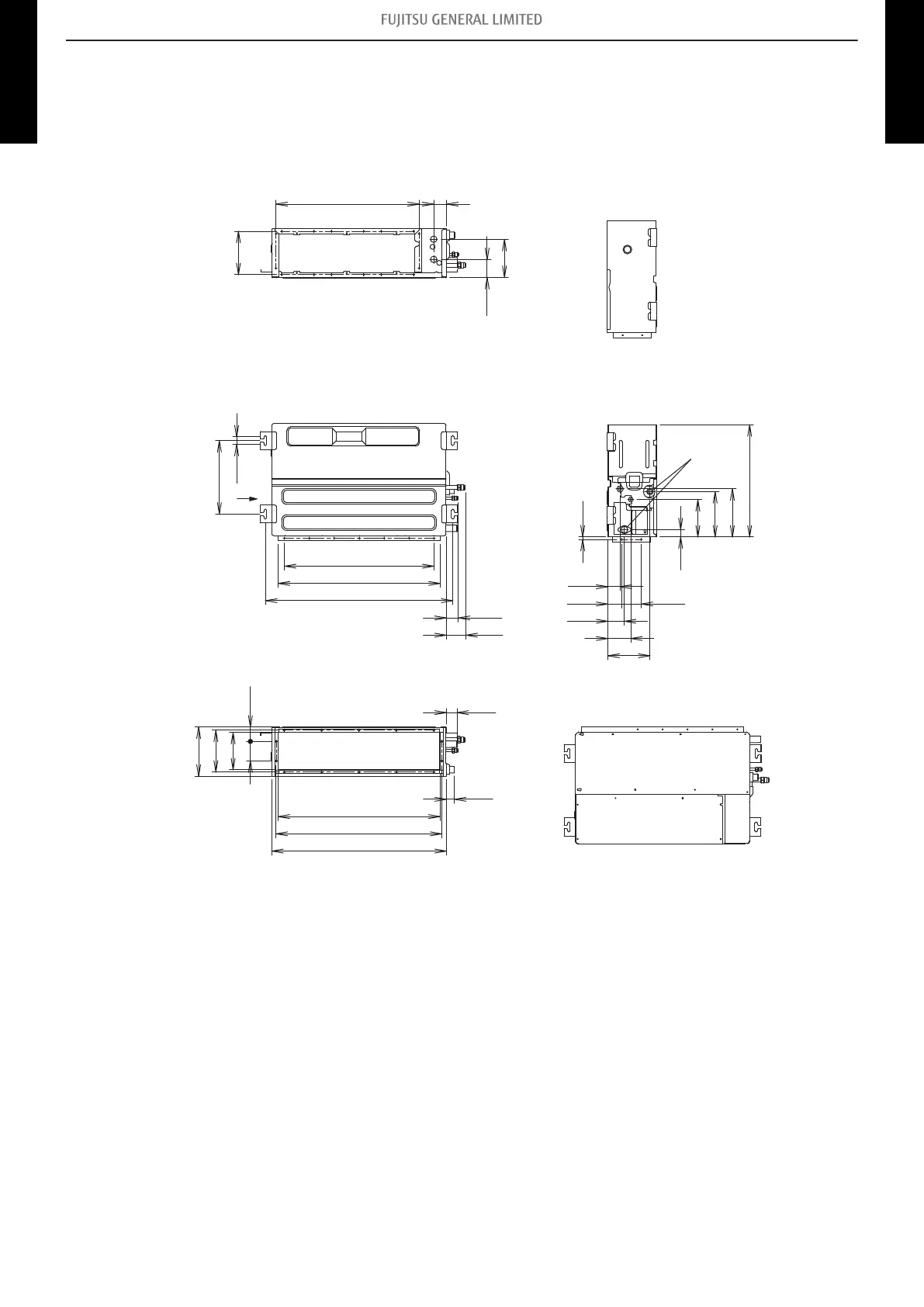

3-2. Mini duct type
¢
Models: ARXG07KSLAP, ARXG09KSLAP, ARXG12KSLAP, and
ARXG14KSLAP
Unit: mm
Drain port
575
174
752
650
43
33
665
700
650
49
49
92
78
169
56
66
85
P 100 × 6 = 600
A
295
198 168 150
78 57
10
30
150
182
193
450
30
153
72
52
Rear view
Top view
Front view Bottom view
Side view
View A
