Fujitsu AUXG14KVLA Service Instruction

 Model: AOYG12KATA

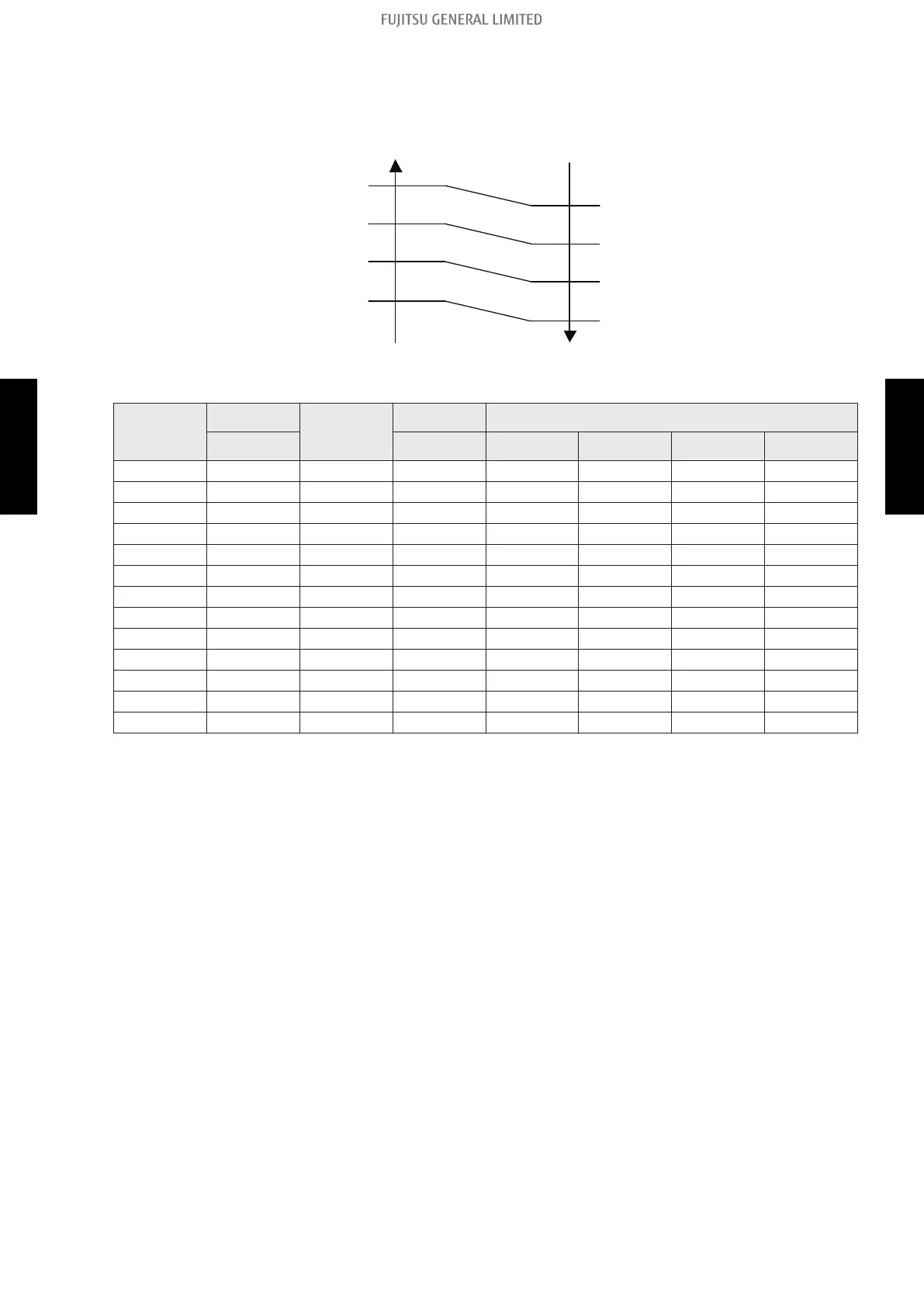

Fan speed is defined by outdoor temperature and compressor frequency.
• Outside air temperature zone selection
21°C
Outside air
temperature rises
Z zone
Y zone
F zone
G zone
Outside air
temperature drops
12
°C
2°C
-8°C
19°C
10°C
0°C
-10°C
H zone
Unit: rpm
Fan step
Cooling
Heating
Dry Cooling or dry at low outdoor temp.
Y zone Y zone Z zone F zone G zone H zone
S-HIGH2 — 1,020 — — — — —
S-HIGH1 950 1,020 — — — — —
HIGH 950 1,020 — — — — —
10 — 1,020 — — — — —
9 950 1,020 950 470 350 330 330
8 950 1,020 950 470 350 330 330
7 950 790 950 470 350 330 330
6 900 790 900 470 350 270 270
5 900 730 900 320 270 220 220
4 800 630 800 250 220 200 200
3 680 530 680 250 220 200 200
2 580 470 580 250 220 200 200
1 540 470 540 250 220 200 200
NOTE: After defrost control on the heating mode, the fan speed is kept higher regardless of the
compressor frequency.
Fan speed after defrost control: 1,020 rpm
3-2. Outdoor fan control - (04-15) - 3. Fan control
