Fujitsu AUXG14KVLA Service Instruction

 Model: AOYG14KATA

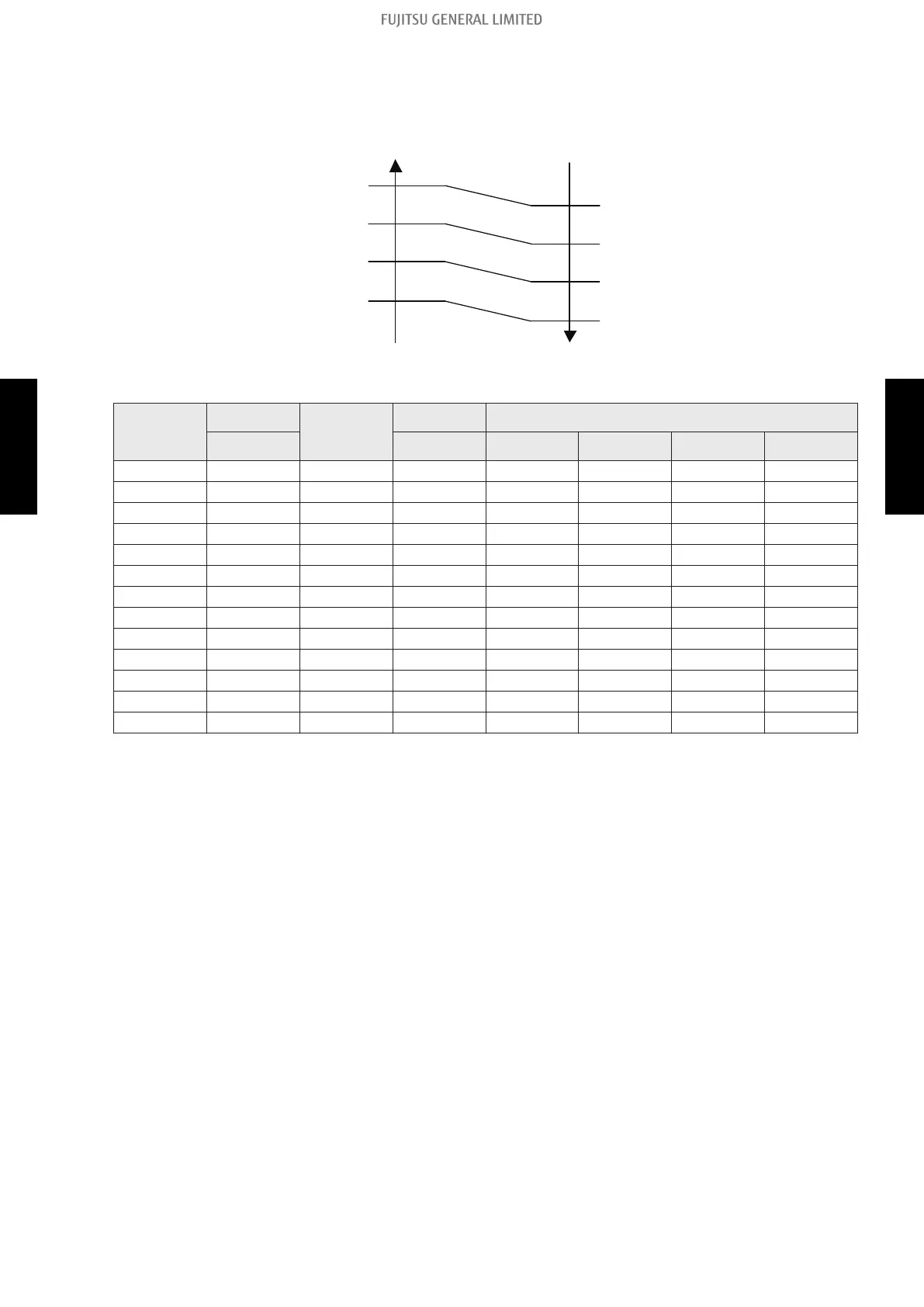

Fan speed is defined by outdoor temperature and compressor frequency.
• Outside air temperature zone selection
21°C
Outside air
temperature rises
Z zone
Y zone
F zone
G zone
Outside air
temperature drops
12
°C
2°C
-8°C
19°C
10°C
0°C
-10°C
H zone
Unit: rpm
Fan step
Cooling
Heating
Dry Cooling or dry at low outdoor temp.
Y zone Y zone Z zone F zone G zone H zone
S-HIGH2 — 1,120 — — — — —
S-HIGH1 990 1,120 — — — — —
HIGH 990 1,120 — — — — —
10 — 1,120 — — — — —
9 990 1,120 990 630 300 280 280
8 990 1,120 990 630 300 280 280
7 870 830 870 630 300 280 280
6 830 750 830 450 280 220 220
5 780 710 780 450 240 190 190
4 780 710 780 450 240 190 190
3 670 660 670 310 220 190 190
2 570 500 570 200 220 190 190
1 520 500 520 200 200 190 190
NOTE: After defrost control on the heating mode, the fan speed is kept higher regardless of the
compressor frequency.
Fan speed after defrost control: 1,120 rpm
3-2. Outdoor fan control - (04-16) - 3. Fan control
CONTROL AND FUNCTIONS CONTROL AND FUNCTIONS
