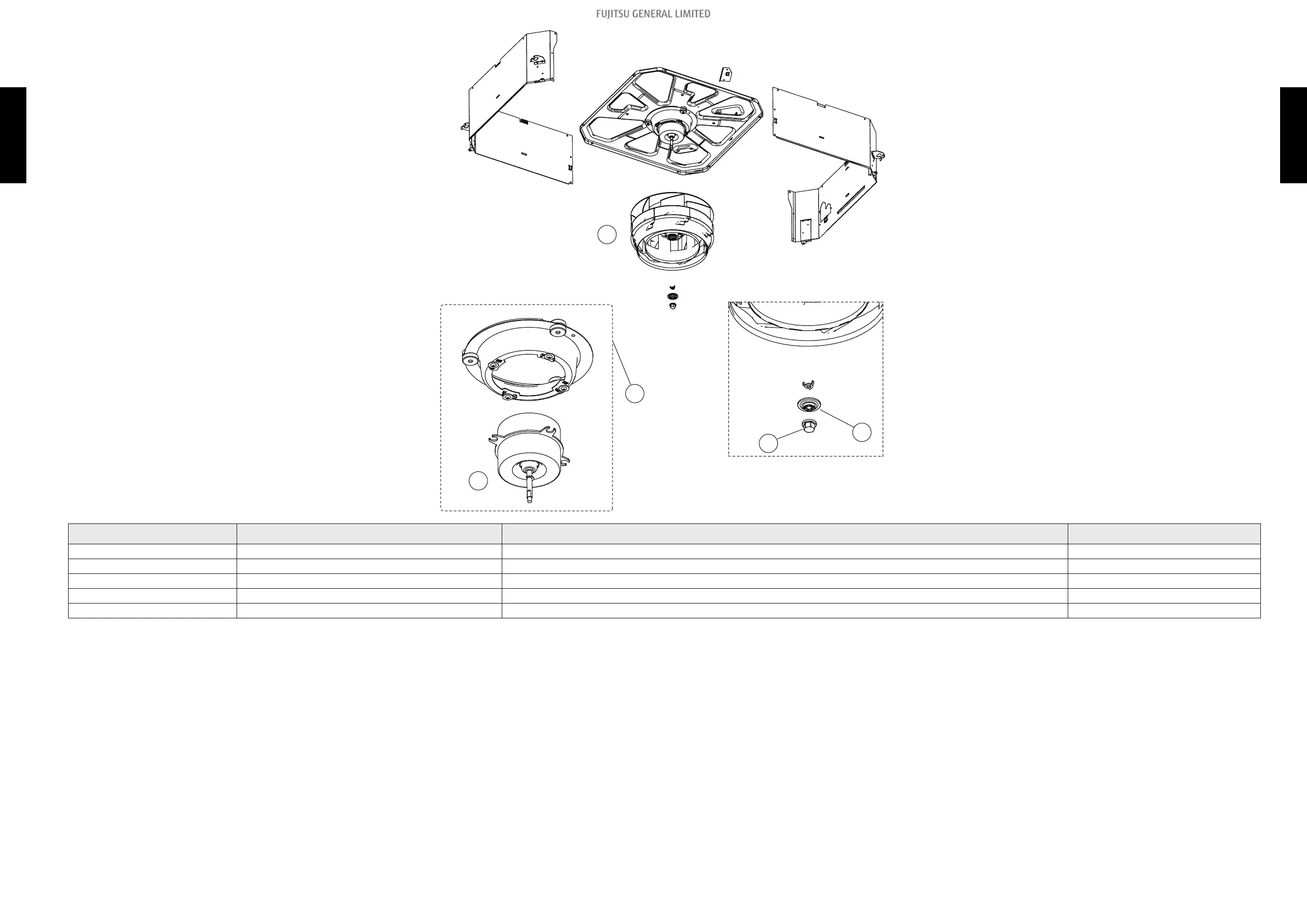

Cabinet A sub assy
Top plate assy
Motor wire holder
Cabinet B sub assy
44
45
43
Turbo fan washer
Item no. Part no. Part name Service part
41 9375719012 Fan motor sub assy ♦
42 9602436019 Fan motor ♦
43 9375480011 2 stage turbo fan assy ♦
44 9377807014 Shaft cap ♦
45 9377811011 Washer cover ♦
3-1. Models: AUXG18KVLA, AUXG22KVLA, and AUXG24KVLA - (02-10) - 3. Indoor unit parts list
