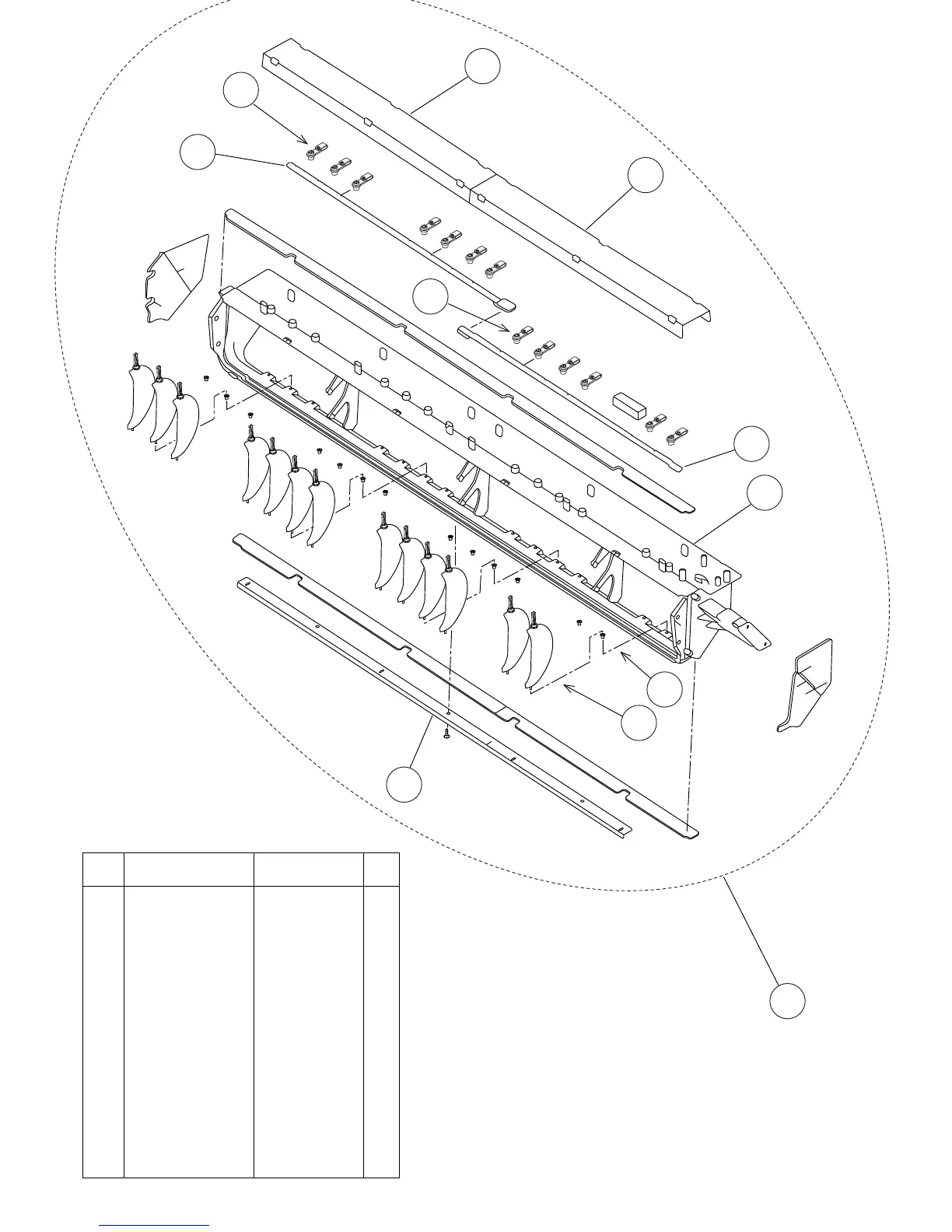

INDOOR UNIT
CEILING
ABYG18LVTB
ABYG22LVTA
ABYG24LVTA
51
54
59
57
57
53
53
51
58
52
55
56
55 Louver 9358561027
56 Bushing B 9358554005
59 Motor Rod 9358560013
53 Protect Cover 9358564011
54 Support Stay 9358599006
57 Louver Stopper 9358555002
58 Louver Rod 9358559017
52 Flap Base 9358537022
51 Kit (Flap Base) 9372670040
Ref. Description Part number
2012.04.24
