52

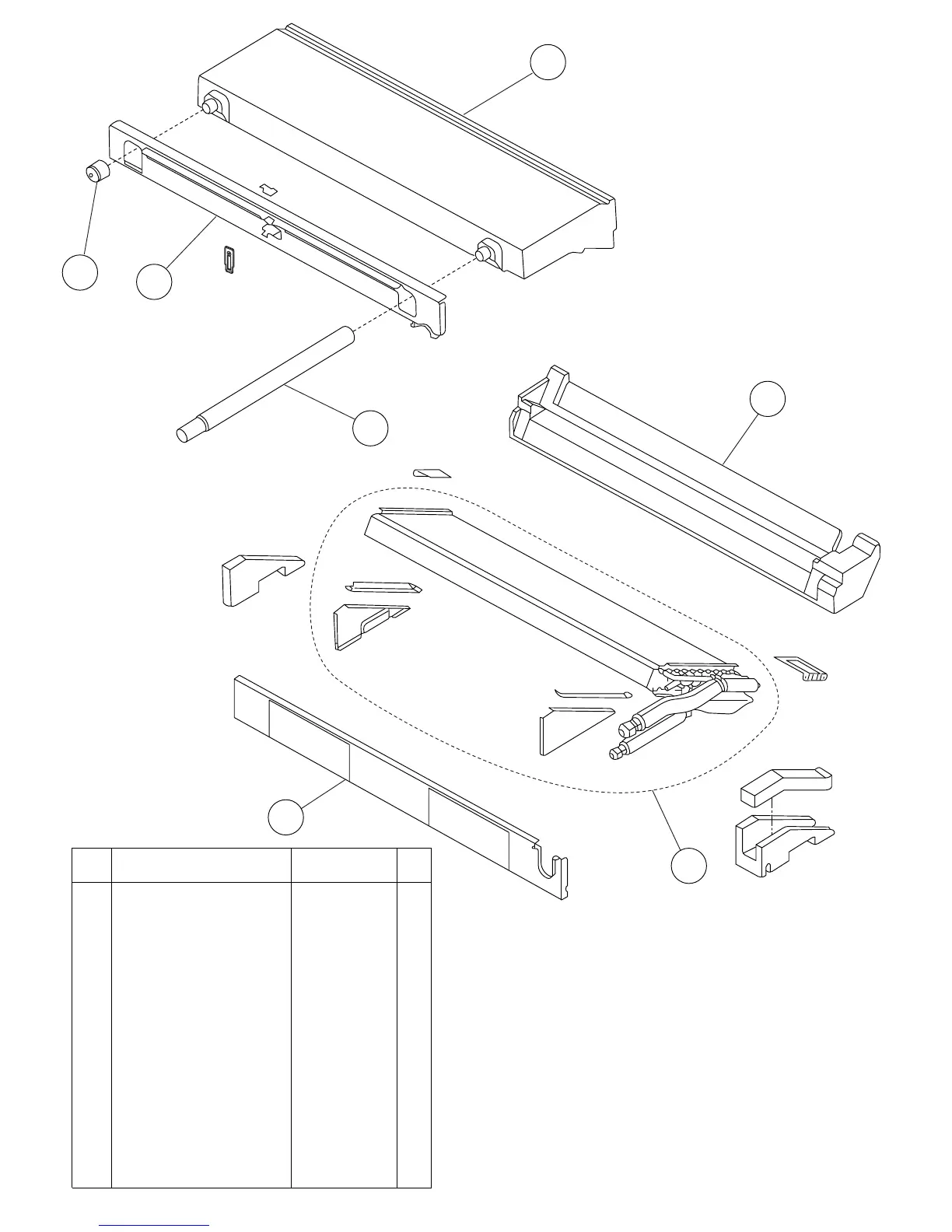

INDOOR UNIT
CEILING
ABYG18LVTB
ABYG22LVTA
ABYG24LVTA
65 Drain Hose Assy 9377785060
61 Kit (Separate Wall A) 9372666012
63 Kit (Drain Pan Assy) 9372669013
-- Pipe Thermistor 9900022020
67 Evaporator Sub Assy (18) 9359051275
67
Evaporator Sub Assy (22, 24)
9359051268
66 Kit (Insulation Flap Base) 9372672013
62 Kit (Separate Wall B) 9373448013
64 Drain Cap 9358746004
Ref. Description Part number
2012.04.24
62
61
63
66
67
65
64
