System upgrades
Low-profile boards
You will need to fit a corresponding slot adapter first before you can install a low-profile board in a
normal board slot.
Two-piece board slot covers are fitted to the slots intended for low-profile boards. The two pieces are
connected together with a screw.
► Remove the desired board slot cover and undo the screw.
!
Do not dispose of the slot cover. If you remove the board again, you must reinstall the slot
cover (cooling, fire protection or EMC regulations to be complied with).

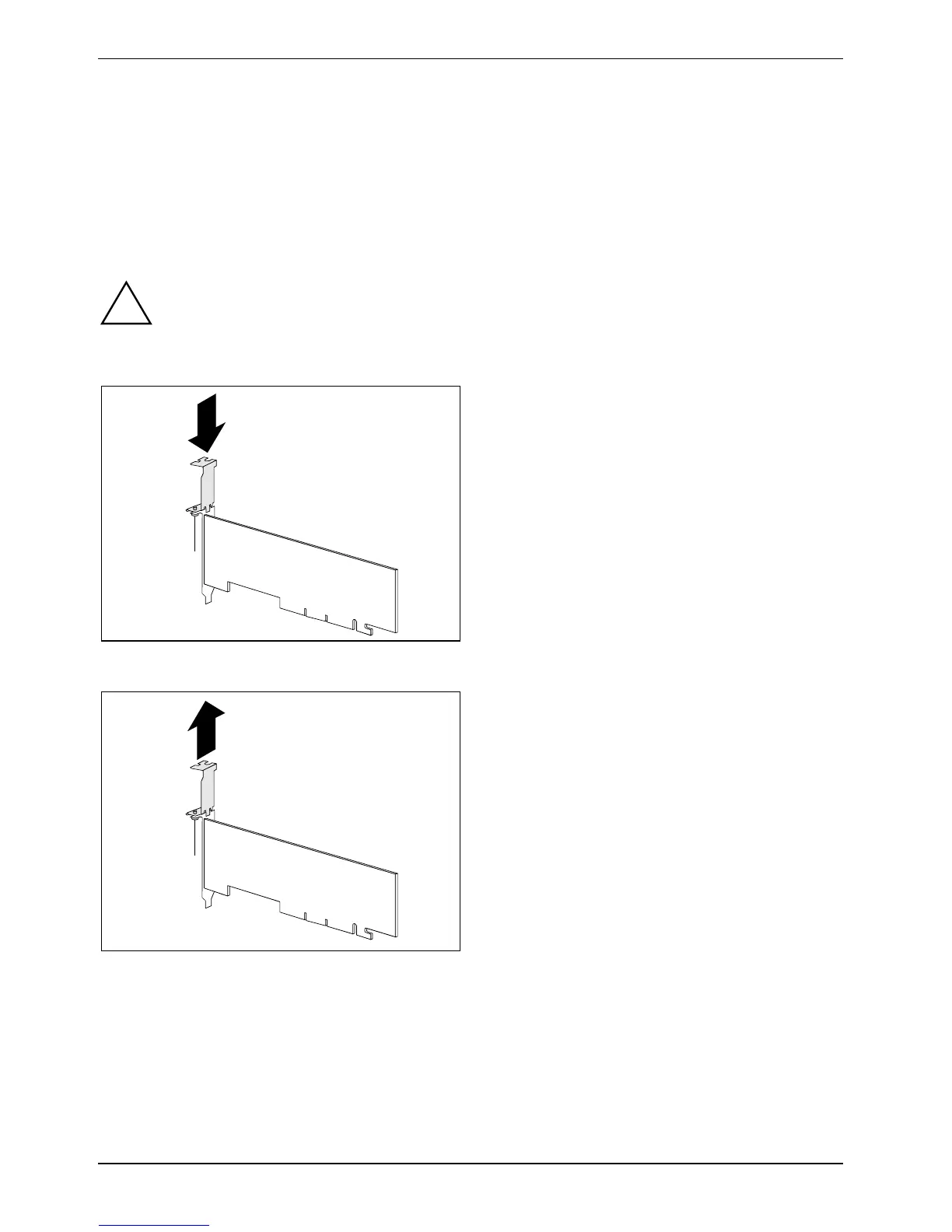

Mounting slot adapter
► Fit the slot adapter on the slot cover of the
low-profile board (1) and screw it on (2).
2
1
Now you can install the low-profile board in a
suitable slot like a normal board (see "
Installing a
board
").
Removing slot adapter
2
1
► Unscrew the screw (1) and remove the slot
adapter (2).
