32 Technical Manual D2619 (RX/TX300 S5)
Interfaces and connectors Features

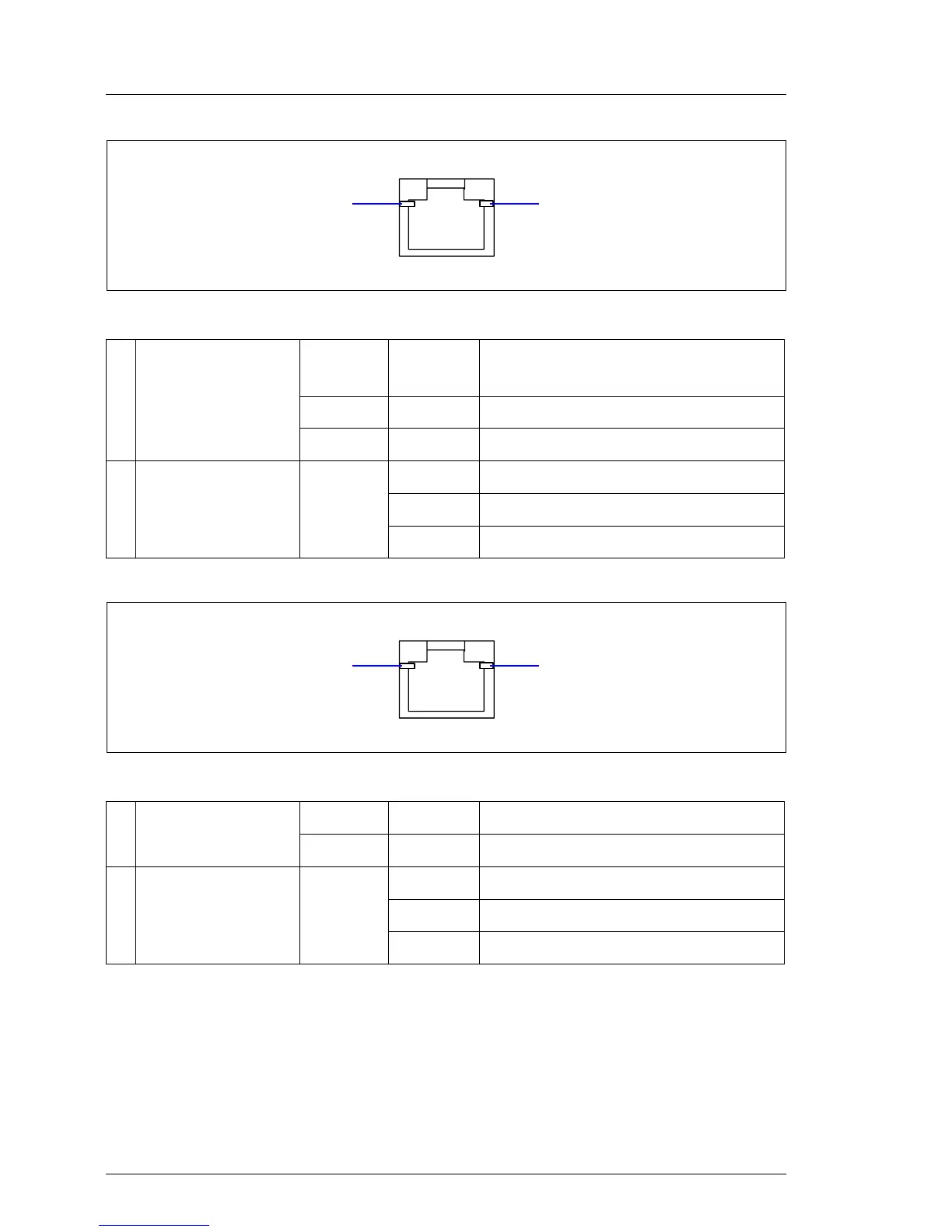

Figure 10: LAN connector system LAN controller
Figure 11: LAN connector service LAN controller
1 LAN transfer rate green +
yellow
off LAN transfer rate 10 Mbit/s
green on LAN transfer rate 100 Mbit/s
yellow on LAN transfer rate 1000 Mbit/s
2 LAN link/activity green on LAN connection
off no LAN connection
flashing LAN transfer
1 LAN transfer rate green off LAN transfer rate 10 Mbit/s
green on LAN transfer rate 100 Mbit/s
2 LAN link/activity green on LAN connection
off no LAN connection
flashing LAN transfer
2 1
2 1
