Main memory Features
● Can run with differently rated memory modules and use the settings of the
slowest memory module on both channels.
● The total physical memory available to the system is half of what is
populated.
Spare channel mode

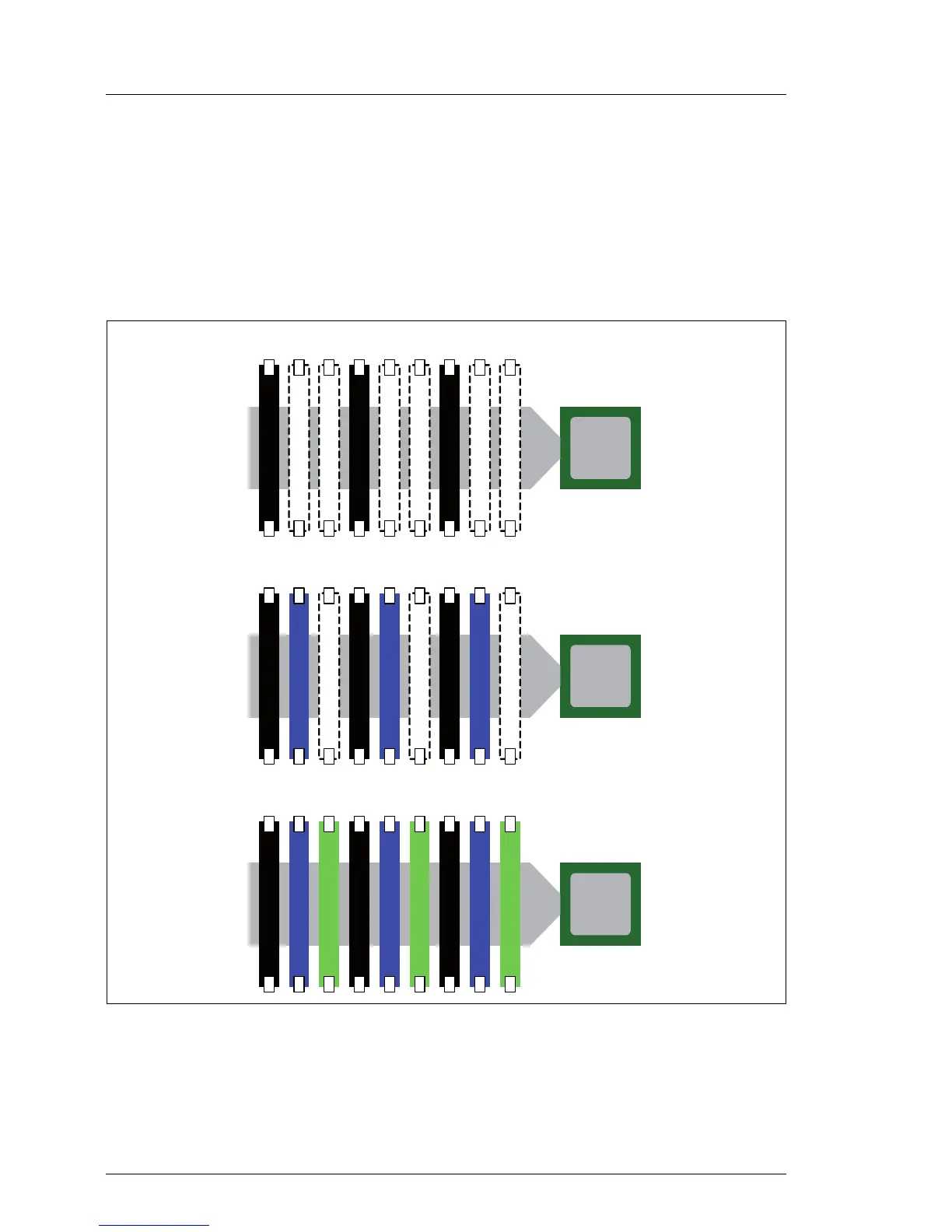

Figure 5: Spare channel mode
In figure 5 you can see the slots that must be populated for a minimum config-
uration and for the first two upgrades.
C hannel AC hannel BC hannel C
CPU1
C hannel AC hannel BC hannel C
CPU1
C hannel AC hannel BC hannel C
CPU1
DIMM-2A DIMM-1A DIMM-2B DIMM-1B DIMM-2C DIMM-1C
DIMM-3 A DIMM-2A DIMM-1A DIMM-3 B DIMM-2B DIMM-1B DIMM-3 C DIMM-2C DIMM-1C
DIMM-3 A DIMM-3 B DIMM-2B DIMM-3 C DIMM-2C DIMM-1A DIMM-1B DIMM-1C
DIMM-3 A DIMM-3 B DIMM-3 C
Minimum Memory Configuration ( S pare Ch an nel Mode)
DIMM-2A
1st Upgrade
2nd U pgrade
