D2619 (RX/TX300 S5) Technical Manual 21
Features Main memory
Mirrored channel mode

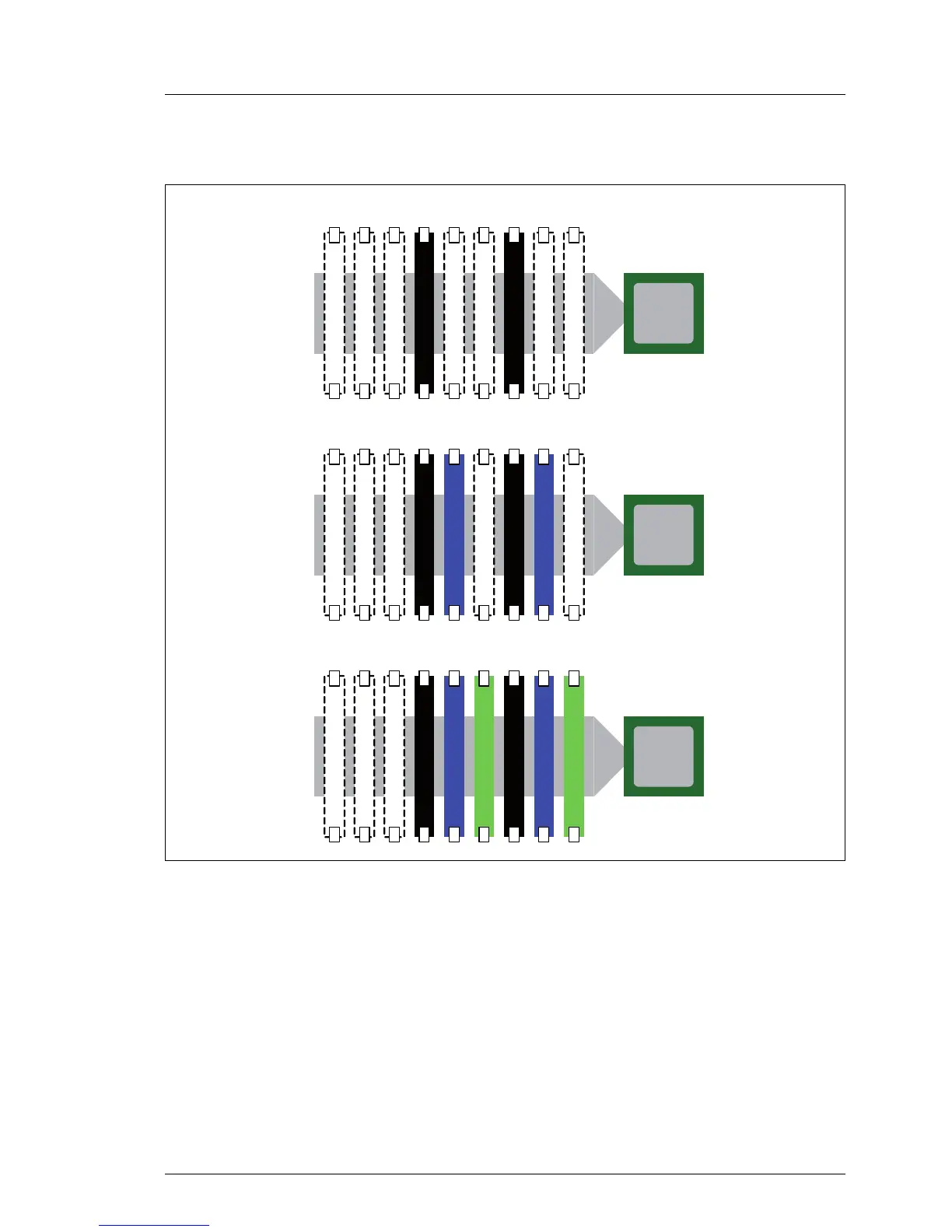

Figure 4: Mirrored channel mode
In figure 4 you can see the slots that must be populated for a minimum config-
uration and for the first two upgrades.
In this mode channel A and channel B are exact copies of each other.
● Channel A and channel B must be populated identically (channel C is not
usable in this mode).
● Memory slot populations within a channel do not have to be identical but the
same memory slot location across channel A and B must be populated the
same way.
CPU1
C hannel AChannel BC hannel C
CPU1
C hannel AChannel BC hannel C
CPU1
DIMM-3 A
C hannel AChannel BC hannel C
DIMM-2A DIMM-1A DIMM-3 B DIMM-2B DIMM-3 C DIMM-2C DIMM-1C
DIMM-3 A DIMM-3 B DIMM-3 C DIMM-2C DIMM-1C DIMM-1A DIMM-1B
DIMM-3 C DIMM-2C DIMM-1A DIMM-1B
1st Upgrade
2nd U pgrade
Minimum Memory C onfiguration (Mirrored Mode)
DIMM-1B
DIMM-2A DIMM-2B
DIMM-3 A DIMM-2A DIMM-3 B DIMM-2B DIMM-1C
