20 Technical Manual D2619 (RX/TX300 S5)
Main memory Features
Independent channel mode

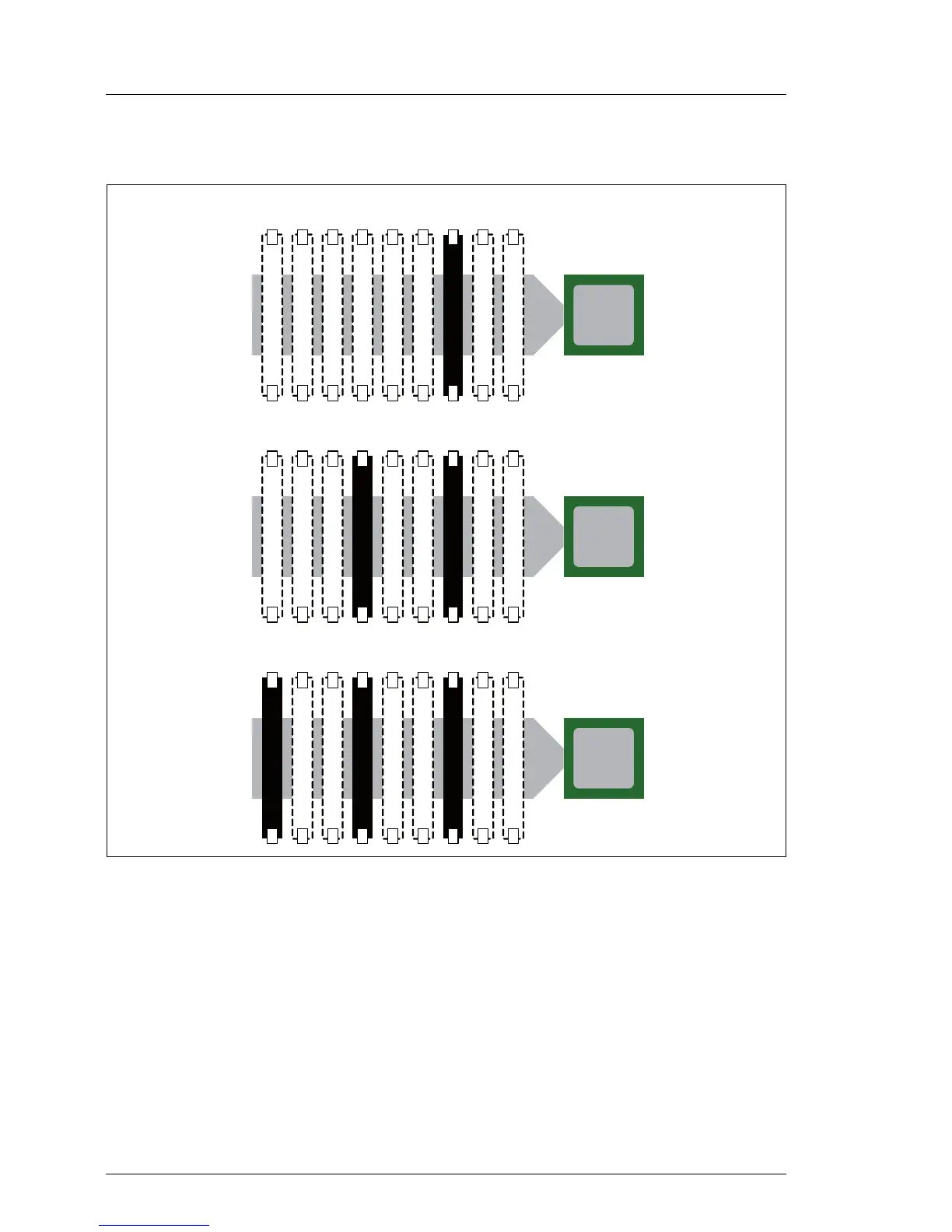

Figure 3: Independent channel mode
In figure 3 you can see the slots that must be populated for a minimum config-
uration and for the first two upgrades.
Independent channel mode allows for channels to be populated in any order
and no matching between channels is required.
● All channels in a system will run at the fastest common frequency.
● Can run with differently rated DIMMs and use the settings of the slowest
DIMM within a channel.
● Timings other than frequency can vary between channels.
CPU1
C hannel AC hannel BC hannel C
CPU1
C hannel AC hannel BC hannel C
CPU1
DIMM-3 A
C hannel AC hannel BC hannel C
DIMM-2A DIMM-1A DIMM-3 B DIMM-2B DIMM-1B DIMM-3 C DIMM-2C DIMM-1C
DIMM-3 A DIMM-2A DIMM-3 B DIMM-2B DIMM-3 C DIMM-2C DIMM-1C DIMM-1A DIMM-1B
DIMM-3 A DIMM-2A DIMM-3 B DIMM-2B DIMM-3 C DIMM-2C DIMM-1A DIMM-1B DIMM-1C
1st U pgrade
2nd U pgrade
Minimum Memory C onfiguration
