4 - English Interfaces and conn ecto r
s
Interfaces and connectors
The location of the interfaces and connectors of your mainboard is specified
at the b eginning of the manual.
The components and connectors marked are not necessarily present on the main board.

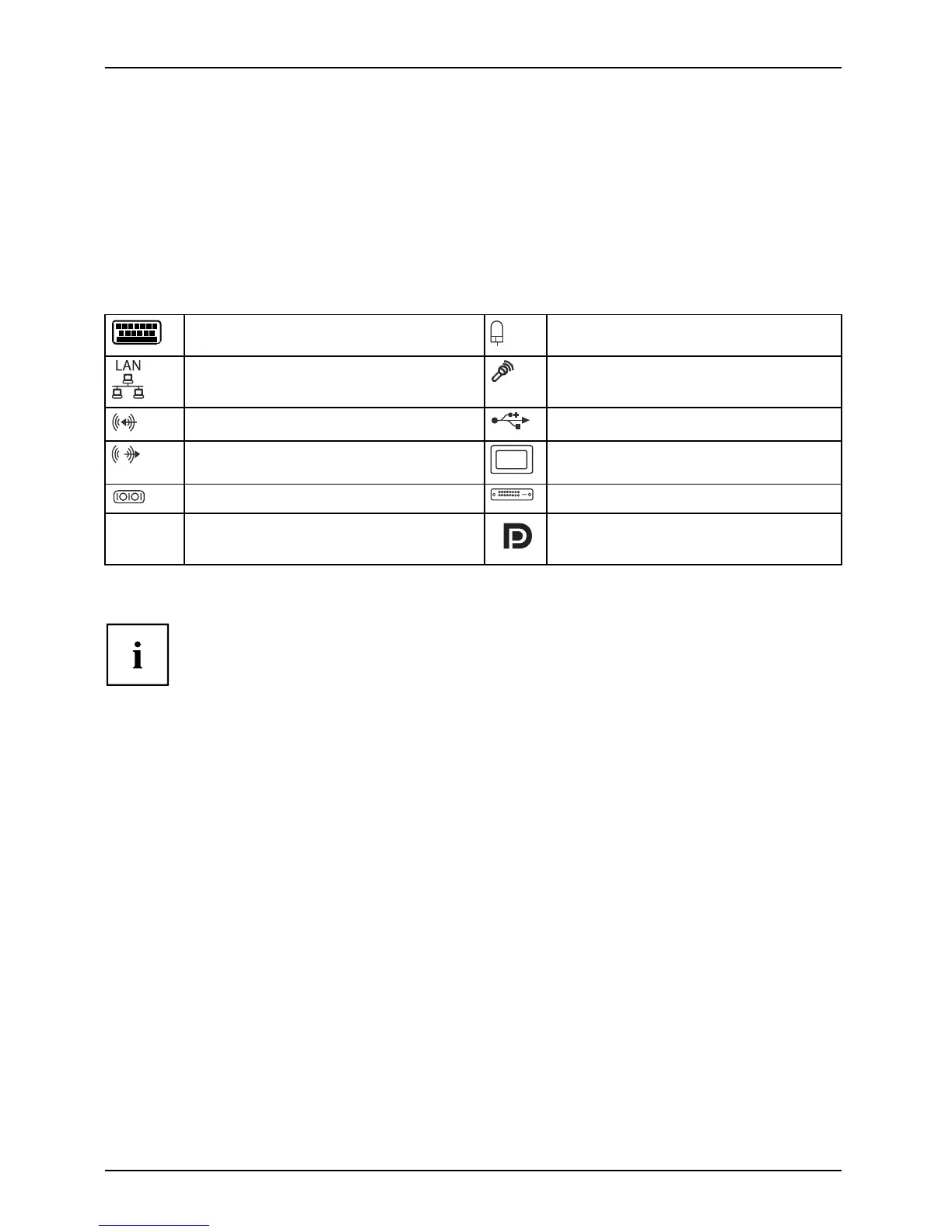

External p orts
The location of the external ports of your mainboard is specified at the beginning of the m anual.
PS/2 keyboard port, purple PS/2 mouse port, green
LAN port (RJ-45)
Microphone port, pink
Audio input (Line i n), light blue USB – U niversal S erial Bus, black
Audio output (Line out), light green VGA, blue *
Serial interface, turquoise DVI–I*
+
+
DisplayPort *
* depending on the processor
According to the USB 2.0 speci fications, no more than 500 mA must
be connected to the external USB ports.
The use of a new chip set technology can mean that the procedure is different when
connecting older USB devices (Fullspeed, USB 1.1). This relates, for example, to older
digital cameras of which only one (not two or more at the same tim e) can be opera ted at
any one time. Newer devices with specification USB 2.0 are not affected by this.
20 Fujitsu Tech nology Solutions
