6 - English Installing/removin g t he
processor
Procedure
The processor socket is covered with a protective cap to protect the spring
contacts. In the event of a warranty case, the mainboard can only b e taken back
by Fujitsu Technology Solutions w ith the protective c ap secured!
a
b
b
► Remove the heat sink.
► Press d own the lever and unhook it.
► Fold up the frame.

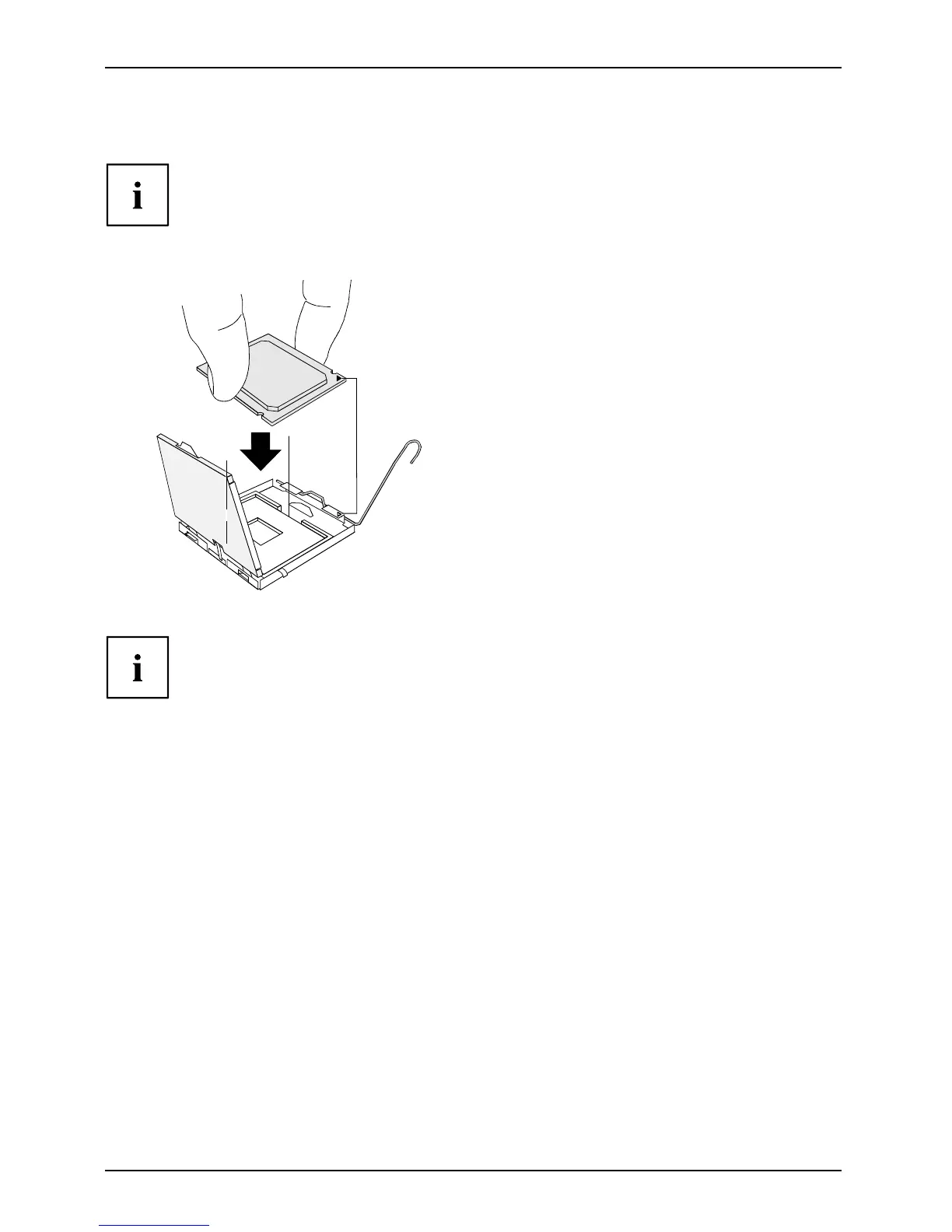

► Hold the processor between you r thumb
and index finger and insert it into the socket
(b) so that the m arking o f t he processor is
aligned with the marking on th e socket (a).
► Press the lever downward until it is
hooked in again.
► Remove the protective cap and keep it.
Please note that, depending on the heat sink used, different heat sink
mounts are req uired on the mainboard.
► D epending on t
he configuration variant, y ou must p ull a p rotective foil off the heat sink
or coat the he
at sink with heat conducting paste before fitting it.
► Secure the heat sink - depending on the model - with four screws or push it into the mounts.
22 Fujitsu Tech nology Solutions
